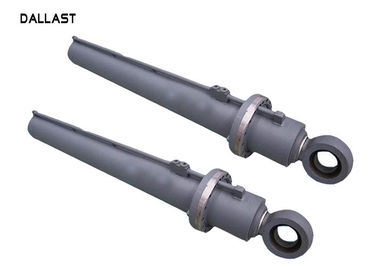

24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment

24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment

    • 24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment
    • 24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment
    • 24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment
  • 24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Certification: GS, RoHS, CE, ISO9001 Pressure: 220bar
    Adjusted Form: Regulated Type Pressure Direction: Double-acting Cylinder
    Maximum Stroke: Requirements Heat Treatment: Quenching
    Origin: China Roundness: Rz0.2~0.4 / Ra0.1Max

    24 Inch Double Acting Long Stroke Heavy Duty Piston Rod Hydraulic Cylinder



    Structure Piston cylinder
    Hardness HRC40-55
    Seal Merkel,Parker
    Color red black blue gray,can custom according request
    Acting Temperature -30ºC~300ºC
    Working pressure 16-32MPA
    Coating chrome plated
    Mounting Type Front Flange
    Plunger 20#, 45# steel with high frequency quenching
    Package shrink film, pallet, plywood case and carton
    Warranty One year after shipping arrival
    Delivery time 15- 25 days after down payment



    Type Specifications:
    According to user requirements, design and manufacture of this series heavy duty high pressure hydraulic cylinder.Pls send us your drawing,can customized for you .

    Double-acting hydraulic cylinder for single-piston type, C25, D25 series hydraulic cylinder can be configured proximity switch. Its characteristics: the location of both ends of the hydraulic cylinder into the anti-high voltage inductive proximity switches to control the direction of the two ends of the commutation. The structure of non-contact sensitive components, non-contact, no wear and tear, the output signal is accurate, safe, reliable, high voltage, easy installation and adjustment, and save cumbersome mechanical commutation device. For the design, manufacture, installation, adjustment provides great convenience.





    DALLAST
    We are leader manufaturers hydraulic cylinder in China.



    We are a professional hydrauli cylinder manufacturer that designs and manufactures Custom Hydraulic Cylinders used in a variety of applications. We believe that our expertise in specialized cylinders,coupled with our highly advanced equipments, enables us to provide you with superior transmission solutions.



    Can be customized according to the needs of 31.5-200MPa working pressure of the hydraulic cylinder, with many years of experience in the design and manufacture of high pressure hydraulic cylinder



    HYDRAULIC CYLINDERS TECHNICAL DETAILS



    1. Cylinders are of Double Acting / Single Acting type and as per customer drawing. 2. We shall be using seals of Parker/Merkel/Equivalent make
    3. Cylinders working pressure will be as per customer specification and test pressure will be 1.5 times of working pressure. 4. Piston Rods will be ground, and hard chrome plated, thickness will be of 25 to 30 microns. bore will be honed to surface finish of <0.4 micron Ra.
    5. Ports will be protected with metallic plugs/caps. 6. We will test cylinders as per IS standard test procedure. ( BIS 10585-1983 )
    7. Any spare can be provided on chargeable basis. Special type of painting charges will be extra at actual. 8. Material test certificate, Warranty certificate, dimensional inspection reports& also functional test certificates after inspection shall be submitted along With the material.
    9. Our standard guarantee/warranty terms are 12 months from the date of dispatch subject to material and manufacturing defects only. Nonmetallic items, Wear and Tear items are not covered under this warranty 10. Outer construction and mounting of the cylinder will be as per customer GA drawing & specifications, internal design will be ours. We will provide G.A. drawing with mounting details within two weeks after receipt of P.O. for customer approval
    11. Material specification for main components of the cylinder are as below
    a. Piston rod & Piston – EN8 C45 / IS1570
    b. Outer tube – High tensile ST52/Equivalent
    c. End covers, Tie Rods if required –C45/IS 1570/Equivalent.

    12. We welcome our customer, or their clients/ representative for inspection at our Works. We will send inspection call once cylinders are ready for dispatch Our end along with duly tested & inspected reports and we will follow your instructions for our further action of dispatch of cylinders.



    24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment

    24 Inch Excavator Hydraulic Cylinder Heavy Duty Piston Rod Quenching Heat Treatment
