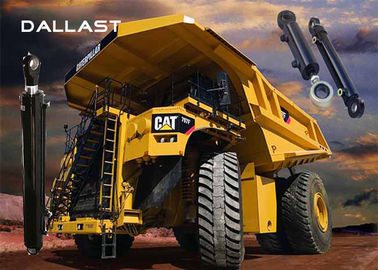

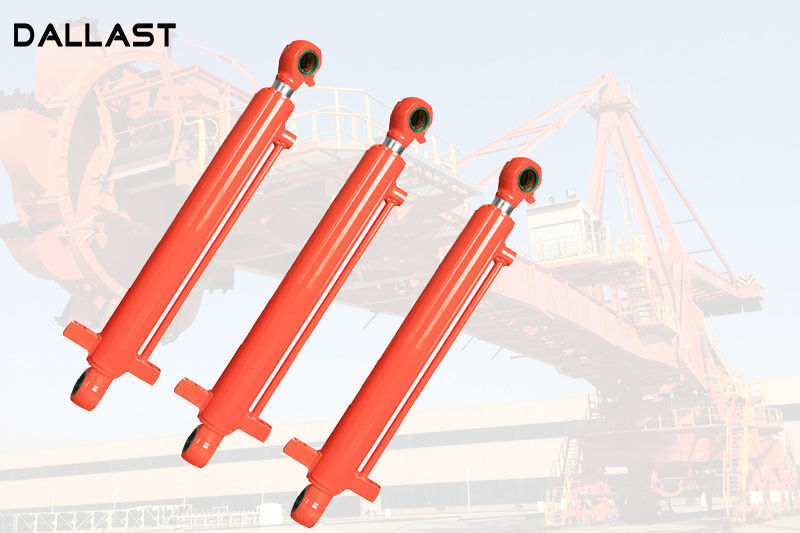

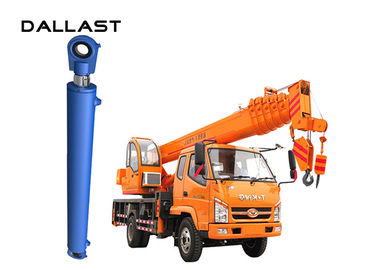

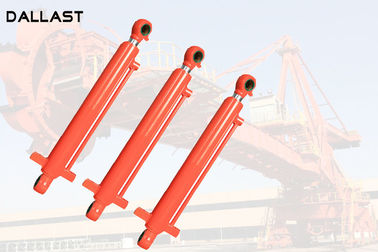

Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa

Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa

    • Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa
    • Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa
    • Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa
  • Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Available Temperature: -40℃ To 80℃ Structure: Piston Cylinder
    Working Pressure: 16-32 Mpa Business Type: Manufacturer
    Usage: Automation And Control Acting Way: Double Acting
    Color: Any Color Standard: Standard, Nonstandard



    Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa







    Double Acting:



    The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.



    Product Information :



    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method

    Application Heavy Duty Engineering Equipment / Machinery
    Material of cylinder tube Stainless Steel
    Coating All tubes are chromeplated
    Working pressure 70bar-600bar
    Bore size 40mm-800mm
    Color Any Color
    Mouting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel
    Certification ISO9001:2008, SGS, TS16949
    Warranty One year
    Working temperature -30° C to 80°C
    Model No Could be designed
    Stroke 100-11000mm
    Seals Parker, Merkel, Hallite
    Origin Shandong, China
    HS Code 8412210000
    OEM Customized



    Quality Control :


    1. With Rolling technology, the cylinders are straighter, the surface are harder and its quality is more durable.

    2. All piston rod have to go through comprehensive processing: Heat treating Lathing GrindingPolishingHard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid-proof.

    3. Using imported materials for seal kits.

    4. Advanced surface treatment:

    A. Environmental automatically pipelined painting

    B. Cleaning with automatic washing machine

    C. Assembling in seal clean workshops.



    Company Profile :



    Dallast Technology Co., Ltd established in 2002, It is situated in Shandongprovince,and occupies about 58000 square meters. We have passed ISO9001&TS16949 certified,now we export to US,Canada,South America,Russia,Korea,Australia,Southeast Asia and so on.





    FAQ :



    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer with Exporting License.



    Q2: How long have you been in Hydraulic Cylinder industry?

    A2: Our factory is built in year 2002 and start by manufacturing Hydraulic Cylinder.



    Q3: How long is your warranty period?

    A3: We offer 13 months warranty period after on board.



    Q4: What is your payment term?
    Payment term:

    1) Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

    2) Samples: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

    3) Products: 30% prepaid as order deposit;70% paid before EX-work.



    Product Show :



    Double Rod End Hydraulic Cylinder , Double Ended Hydraulic Ram 16-32 Mpa
