Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied

Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied

    • Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied
    • Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied
    • Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied
  • Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Power: Hydraulic Working Pressure: 16-32 Mpa
    Standard: Standard, Nonstandard Pressure Direction: Double-acting Cylinder
    Structure: Piston Cylinder Test: 100% Test
    Steel Material: 20#, 45# Steel, 21#, 27# SiMn Warranty: One Year



    Double Acting Welded Agricultural Hydraulic Cylinders , Double Acting Hydraulic Piston







    Features and Functions:


    1. Double acting. Hydraulic return
    2. Baked enamel finish for increased corrosion resistance.
    3. Built-in safety valve prevents accidental over-pressurixation.
    4. Be equipped with double-loop pump to run.
    5. RR cylinder is the best solution to premise controlled heavy loads.
    6. Replacing adjustment rolls under a fly-over with RR cylinders, for controlled lifting an lowering operation.



    Advantages of Double Acting Cylinder:



    A double acting cylinder alternates cycles of pressurized fluid to both sides of the piston and creates extend and retract forces to move the piston rod, permitting more control over the movement. Using a control system made up of a 2-, 3-, 4- way position valve would be required to achieve the desired movement for your application.

    What it comes down to when selecting which type of cylinder is the amount of control that you need versus what you can afford to have in place. If the heavy lifting, so to speak, is only in one direction, a single acting hydraulic or pneumatic cylinder may be your best bet. If you are moving a part in two directions and need to have full control, it’s best to have a double acting hydraulic or pneumatic cylinder. If you have any other questions regarding Single acting cylinders and Double acting Cylinders or would like our help make you create a custom hydraulic cylinder please reach out to us via email:bruce@dallast.com.



    FAQ:



    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.
    2.OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products according to clients’ requirements.
    3. What is the payment method?
    (1) T/T: in advance.

    (2) West Union: we can accept small payment (below3000), but the bank charges shall be paid by the buyer.
    (3) L/C is acceptable if the amount is big enough.
    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.
    5. How about the warranty and after-sale service?
    All of our products have one-year warranty, and we can offer you long-distance after-sale
    service 7/24h.



    Parameter:





    Product
    Stroke 20mm-12000mm
    Inside Cylinder Tube Dia. 20-1500 mm (1.5 - 40 inch)
    Liner material Copper (prolongs the life cycle of cylinder)
    Hydraulic cylinder tube material Carbon steel, Alloy steel, Stainless steel
    Piston Rod Dia 12 - 500 mm (1/2 - 20 inch)
    Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra
    Chome Plated Cr, Ni or Ceramic
    Design Pressure Max 700 bar (10150 PSI)
    Weight Max 60 tons
    Valves SUN (USA),or famous Chinese brand with same quality to PARKER
    Seals Type PARKER (USA), MERKEL (Germany) or NOK (Japan)
    Liner material Copper (prolongs the life cycle of cylinder)
    Painting Follow with customer requirement or 3-coat marine painting
    Certificate DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS
    Application Construction vehicle (Cranes/ Dump truck/ Forklift/ Excavator/,etc), mine, metallurgy, shipping, water conservancy, etc.



    Product Show :

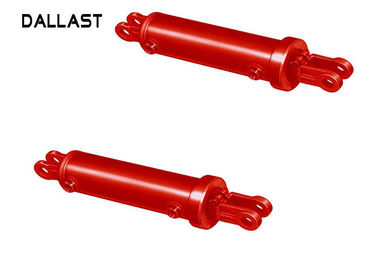

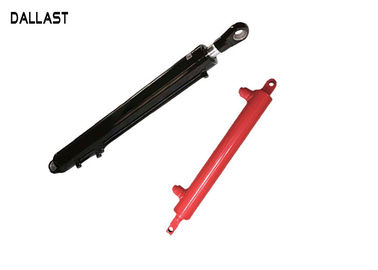

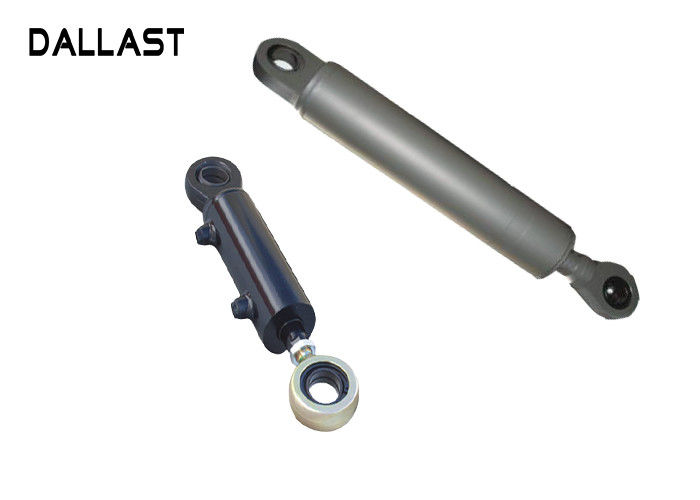

    Tractor Loader Industrial Hydraulic Cylinder Double Acting Welded Agricultural Applied
