Product Details:
Payment & Shipping Terms:
|
Color: | Black | Warranty: | One Year |
---|---|---|---|
Special Cylinder Type: | Custom Hydraulic Cylinder | Working Pressure: | 16-32 Mpa |
Usage: | Automation And Control | Business Type: | Manufacturer |
Available Temperature: | -40 ℃ To 80 ℃ | Hardness: | HRC 45-55 |
High Light: | hydraulic oil cylinder,hydraulic ram cylinder |
Quality:
Key Specifications/Special Features:
Product description:
Hydraulic cylinder for Australia market
Double-acting applications
Standard color: black
Steel piston and five piece seal
Port: Qingdao
100% hydro-pressure test
Rod surface treatment:
Superior quality chrome plated
Apply loctite to rod end thread
We can make hydraulic cylinder design,Please provide us the following technical parameters:
Mounting position | Optional |
Bore size | Several bore sizes and in varying strokes; Many of these sizes are available |
Stroke | depend on the application |
Operating pressures |
Nominal pressure:25 MPa (250 bar 3625 psi) Static test pressure: 37 MPa (370 bar 5440 psi) Cylinders are designed for normal or high pressure |
Operating temperature | -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen. |
Hydraulic fluid | Custom |
Rod diameter | Larger diameters vary between 50,000 and 75,000 PSI minimum yield material |
Rod material | All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. |
Seal | Parker/Nok/Hallite etc. |
Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.
We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.
FAQ :
Questions: | Answers: |
1. Does your products come with a warranty? | Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem. |
2. Can I customize our products from your factory? | Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings. |
3. Can I get samples to test before starting cooperation? | Of course, we would like to produce sample hydraulic cylinder for your confirmation. |
4. How many days will samples be finished? | Generally, 5-7 days for samples making. |
5. I want to see your hydraulic cylinders, where is your factory? | Our factory located in Qingdao City, Shandong Province. |

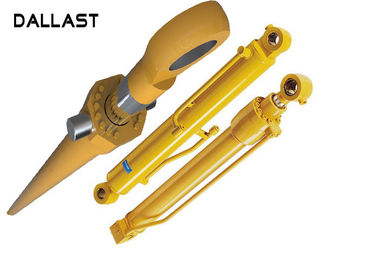

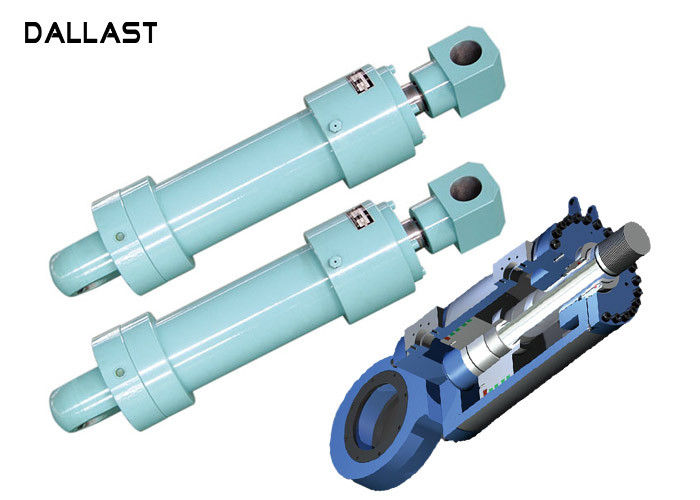

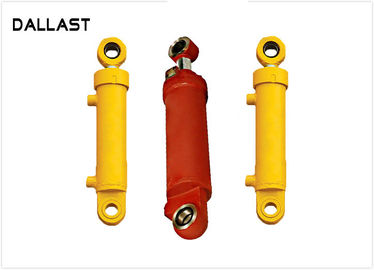

Product Show :
