| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as to your needs |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, D/P, L/C |
| Supply Ability: | 50,000 Pieces/Year |
| Surfce Coating: | Sandblasting, Primer Paint, Middle Paint, Finish | Structure: | Piston Cylinder |
|---|---|---|---|
| Usage: | Automation And Control | Working Pressure: | 16-32 Mpa |
| Honed Tube: | 20-2000mm， Heat Treatment | Warranty: | One Year |
| Power: | Hydraulic | Hardness: | HRC 45-55 |
| High Light: | double acting hydraulic lift cylinder,hydraulic ram cylinder |
||

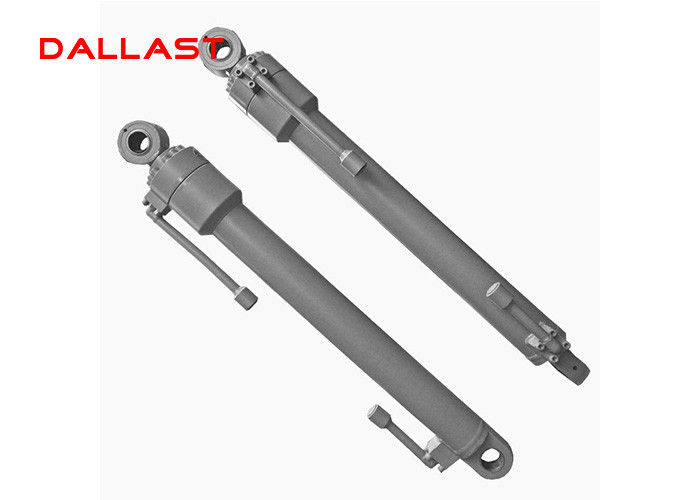

Garbage Truck Hydraulic Oil Cylinder HRC 45-55 Hardness for Farm Truck
Quality:
Key Specifications/Special Features:
Product description:
Hydraulic cylinder for Australia market
Double-acting applications
Standard color: black
Steel piston and five piece seal
Port: SAE (NPTF port or other can be available)
100% hydro-pressure test
Rod surface treatment:
Superior quality chrome plated
Apply loctite to rod end thread
Visit our website to select standard cylinders, we will offer best
price, for custom-made cylinders, feel free to send us drawings for pricing
| Double Acting Hydraulic Cylinder | |
| Bore of Hydraulic Cylinder | 40mm-10000mm(1 1/2 inch - 40 inch) |
| Standard | Standard, Nonstandard |
| Diameter of Piston Rod | 20mm-500mm(1 1/2 inch - 20 inch) |
| Stroke | Max.12000mm(480inch) |
| Working Pressure | Max. 700bar(10150psi) |
| Seals | PAKER(USA),MERKEL(GERMANY),HALLITE(ENGLAND),NOK(JAPAN) |
| Material of Tube | SAE1020(20#),SAE1045(45#),16Mn(Q345B),27SiMn |
| Material of Piston Rod | 35#,SAE1045(45#),35CrMo,42CrMo4 |
| Surface Roughness of Tube | R0.16-0.32μm |
| Technical Treatment of Piston Rod | Quenched and tempered.1.5mm-1mm,or 1.3mm per millimeter |
| Oil port | SAE, NPT, NPTF, BSP,GOS |
| Mounting style | Earrings, Flange, Foot Mounting, Trunnion, Cross Tube |
| Painting | Follow customers' requirements |
Manufacturing Capabilities
· ISO9001:2008 certified
· Complete CNC Machining capabilities
· Bore size from 40mm to 500mm
· Stroke lengths Max. approach to 10m.
· Working pressures 16-24Mpa
· Up to 6 stages of multi-stage telescopic hydraulic cylinder experience
Customized Hydraulic Cylinder
For many years of R&D and manufacture,we have rich experience and unique advantages in supply custom hydraulic cylinders with provided drawings or samples,or if you could provide following specifications:
1. Bore diameter
2. Piston Rod Diameter
3. Stroke Length
4. Mounting Distance & Methods
5. Working Pressure
6. Oil Port
7. Paint color requirement
Applications:
This hydraulic cylinder is mainly widely used in tractors, harvester, farm truck, log splitter, trailer, etc.
Packing and shipping:
With standard export carton /wooden case packing, or as customer’s requirements.
Our services:
All our hydraulic cylinder products with 1 year warranty period
If happened problems in the usage of warranty time, send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air and urgent questions, make an call for us.
Our advantages:
1. Customization and OEM service is acceptable for us.
2. All of our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.
3. Samples can be provide to you before starting cooperation.
4. We are factory and can assure the prompt delivery time.
5. Packing can be customized, often using standard export wooden case packing.
FAQ:
| Questions: | Answers: |
| 1. Does your products come with a warranty? | Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem. |
| 2. Can I customize our products from your factory? | Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings. |
| 3. Can I get samples to test before starting cooperation? | Of course, we would like to produce sample hydraulic cylinder for your confirmation. |
| 4. How many days will samples be finished? | Generally, 5-7 days for samples making. |
| 5. I want to see your hydraulic cylinders, where is your factory? | Our factory located in Qingdao City, Shandong Province. |

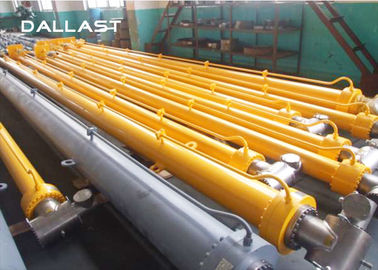

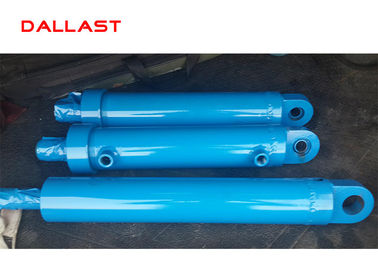

Product Show :
Contact Person: Mr. Aaron
Tel: +8613202289099
Fax: 86-755-32948288
