|Place of Origin:||Shandong|
|Certification:||Gs, RoHS, Ce, ISO9001|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||Plywood Box or Pallet or as your requirements|
|Delivery Time:||15-25 Days|
|Payment Terms:||T/T, Western Union, D/P, L/C|
|Supply Ability:||50,000 Pieces/Year|
|Usage:||Automation And Control||Material:||Stainless Steel|
|Work Temperature:||Normal Temperature||Piston Rod Chrome Plated:||Cr, Ni, Or Ceramic|
|Available Temperature:||-40 ℃ To 80 ℃||Model Number:||OEM|
|Test:||100% Test||Surface Coating:||Sandblasting, Primer Paint|

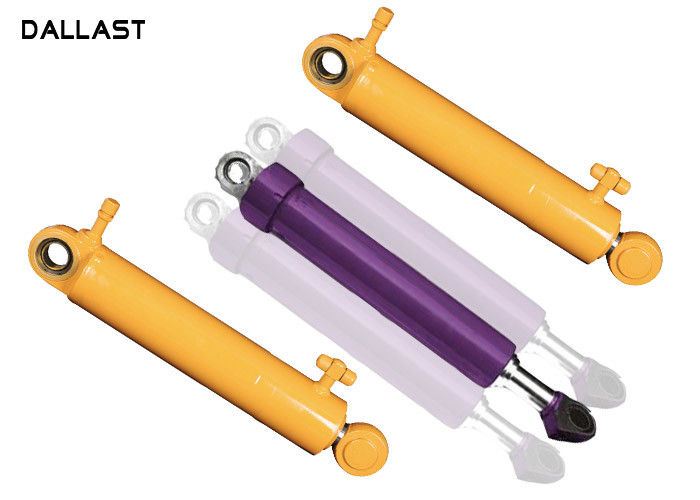

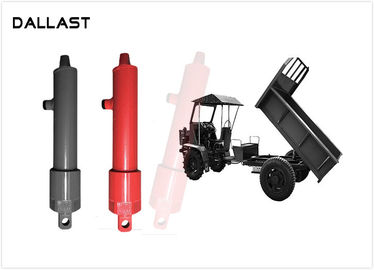

2 Ways Dump Truck Hydraulic Press Cylinders Agricultural Machinery
Product Range Details:
Tube Seal—O-Ring with anti-exthusion backup washer
Tie Rod—High tensile steel
Piston Rod—Chrome Plated C1045 Steel
Rod Clevi—Ductile iron
End Caps—High Grade Iron/ Casting Seel
Piston—High grade ductile iron, precision machined
Piston Wear Ring—Glass filled nylon Wear Ring/ Urethane Seal
Rod Wiper—Metal encased nitrile rubber/Polyurethane Snap In
Rod Seal—Urethane/Customers Specified
Ports—Nptf for 2T, SAE ORB 3T
Paint Color--- Seni-gloss black, Grey, Red or other customized colors
Mounting Style—Pins And Clips Included/ Pin eye mounting on both ends/ Cross Tube
|Sealing system||Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film.|
|Cylinder||Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness.|
1.Tubes are quenched and tempered.
2.Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
|Piston rod||based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life.|
|Buffer / Safety Functions||Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown.|
|Price||Good quality yet lower price.|
Our factory produce hydraulic cylinder for more than 15 years with ISO 9001 certification.
Our cylinders are widely used for different usage, such as agricultural machine, engineering machinery, garbage truck and tractor.
Our factory own advanced processing equipment to guarantee high quality of our Hydraulic cylinder.
Each parts would be measured and cleaned before assembling, after assembling, pressure test would be performed one by one with testing pressure of 30-50% higher than working pressure.
We use steel or wooden boxes to packing hydraulic cylinder to avoid any damage during the transportation.
Contact us, we will provide the best hydraulic cylinder solution for you.
Product Information :
A hydraulic cylinder consists of a piston sliding within a hollow tube, moved by the pressure of a liquid. The piston, or rod is usually machined.
Double-acting models have tapped holes at both ends for the introduction and evacuation of the hydraulic fluid. This allows the piston to apply force in both directions.
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer with Exporting License.
Q2: How long have you been in Hydraulic Cylinder industry?
A2: Our factory is built in year 2002 and start by manufacturing Hydraulic Cylinder.
Q3: How long is your warranty period?
A3: We offer 13 months warranty period after on board.
Q4: How long does it take to process orders?
A4: It usually takes 15-25 days to process. We don’t have stock.
Q5: What’s your cylinder PPM?
A5: 5000 PPM. We do 100% inspection before delivery.
Q6: Can we design our own package or print our own logo?
A6: Yes! Package and logo will be made according to your requirements.

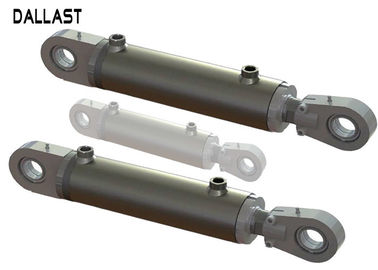

Product Show :
