Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
HS Code: | 8412210000 | Hardness: | HRC 45-55 |
---|---|---|---|
Power: | Hydraulic | Structure: | General Cylinder |
Body Material: | According To User Requirements | Painting: | Anti Rust Painting |
High Light: | horizontal hydraulic cylinder,hydraulic ram cylinder |

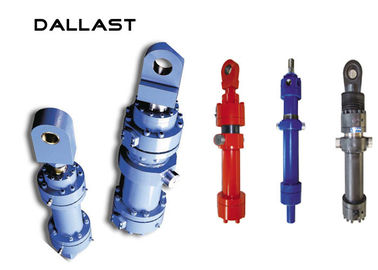

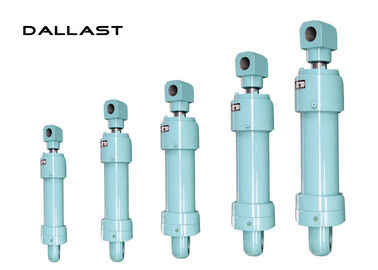

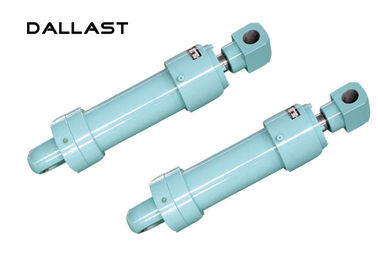

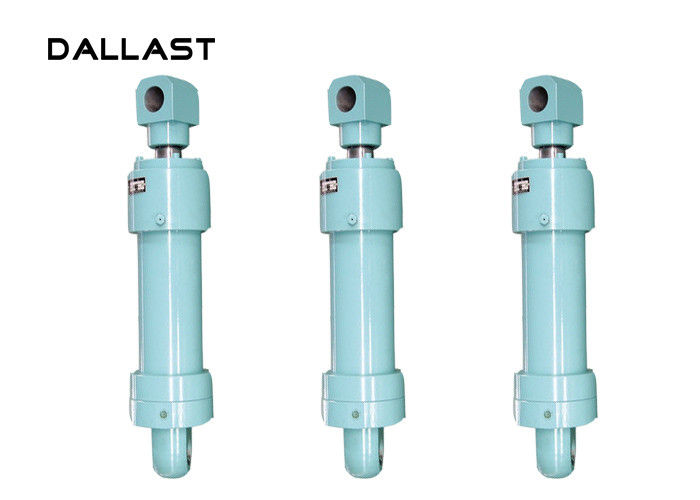

100 t Heavy Duty Hydraulic Cylinder Dock Leveler HRC 45-55 Hardness
Technological parameter
cylinder diameter (mm) | piston rod diameter (mm) | max stroke (mm) | ||
40 | 20 | 22 | 25 | 500 |
50 | 25 | 28 | 32 | 600 |
63 | 32 | 35 | 45 | 800 |
80 | 40 | 45 | 55 | 2000 |
90 | 45 | 50 | 63 | 2000 |
100 | 50 | 55 | 70 | 4000 |
110 | 55 | 63 | 80 | 4000 |
125 | 63 | 70 | 90 | 4000 |
140 | 70 | 80 | 100 | 4000 |
150 | 75 | 85 | 105 | 4000 |
160 | 80 | 90 | 110 | 4000 |
180 | 90 | 100 | 125 | 4000 |
200 | 100 | 110 | 140 | 4000 |
220 | 110 | 125 | 160 | 4000 |
250 | 125 | 140 | 180 | 4000 |
Discription
1. Application:lift platform, dock leveler....
2. Installation: Two ends with earring, with flanges, with trunnion, with U clevis, with ball;
3. Working pressure:10Mpa-40Mpa;
4. Working temperature: -40~50C;
5. Cylinder seals: NOK, PARKER, HALLITE.
6. The thickness of chrome plating: 30-50μm;
7. Every cylinder will be tested before exporting;
8. We can also design as per your demand.
Detailed description
1. Tube and flange welding
The welding on cylinder tube and flange would be Ultrasonic tested every time, the welding seam would be
cleaned before machining. Eternal company ensure that every welding seam has no any leak during lifetime
2. Assembly and pressure test
Before hydraulic cylinder is assemblied, every spare part would be measured and cleaned. After hydraulic
cylinder is assemblied, pressure test would be carried out one by one, eternal company ensure that testing
pressure is higher 30%-50% than working pressure, and pressure holding time 30~60 minutes is necessary. Every piece hydraulic cylinder must be tested completely without any lea.
3. Painting and storage.
After hydraulic cylinder pass through pressure test, painting is necessary.
FAQ:
1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
4. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
