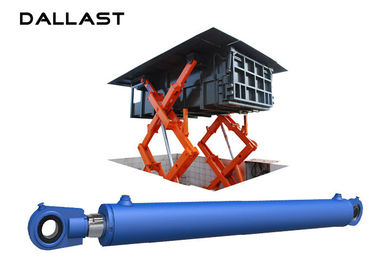

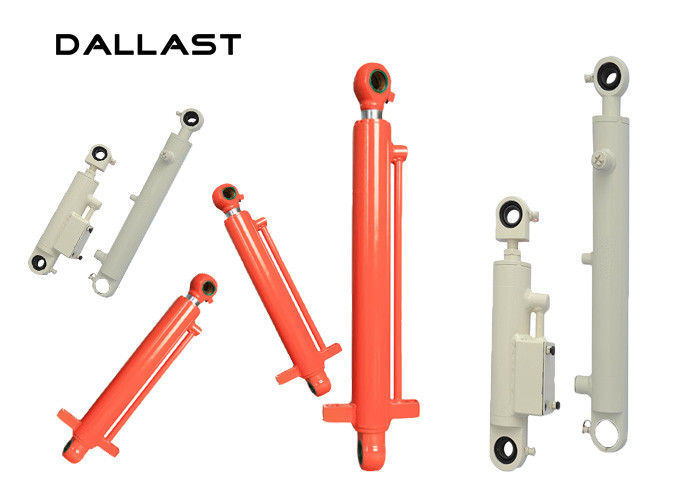

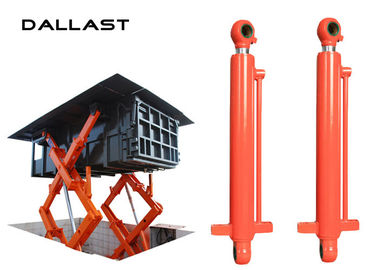

ISO9001 Garbage Truck Hydraulic Cylinders , Long Stroke Hydraulic Oil Cylinder Ram

ISO9001 Garbage Truck Hydraulic Cylinders , Long Stroke Hydraulic Oil Cylinder Ram

    • ISO9001 Garbage Truck Hydraulic Cylinders ,  Long Stroke Hydraulic Oil Cylinder Ram
    • ISO9001 Garbage Truck Hydraulic Cylinders ,  Long Stroke Hydraulic Oil Cylinder Ram
    • ISO9001 Garbage Truck Hydraulic Cylinders ,  Long Stroke Hydraulic Oil Cylinder Ram
    • ISO9001 Garbage Truck Hydraulic Cylinders ,  Long Stroke Hydraulic Oil Cylinder Ram
  • ISO9001 Garbage Truck Hydraulic Cylinders ,  Long Stroke Hydraulic Oil Cylinder Ram

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Place Of Origin: Shandong China Rod Clevis: Ductile Iron
    Adjusted Form: Regulated Type Shaft Diameter: 20-400mm
    Factory Visit: Available Condition: New
    High Light:

    double acting hydraulic lift cylinder

    ,

    hydraulic ram cylinder



    Sanitation Garbage Truck Hydraulic Cylinders , Long Stroke Hydraulic Oil Cylinder Ram

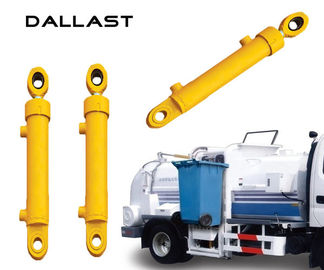

    This cylinder is widely used in the hydraulic system of various types of compressed hydraulic sanitation truck.

    The cylinder has the characteristics of reasonable structure, reliable work, easy installation and easy maintenance.

    The special design is available in accordance with user’s special requirements and technical parameters.

    or if you could provide following specification:

    • diameter of bore & rod

    • stroke

    • mounting style

    • mounting distance

    • working pressure

    • ports

    • seals

    • special modifications



    Model Number Cylinder
    Capacity
    Stroke Maximum
    Cylinder Capacity
    (kN)
    Cylinder
    Effective Area
    (cm2)
    Oil
    Capacity
    (cm3)
    Coll. Height
    (A)
      ton mm Push Pull Push mm Push Pull mm
    SOV-CLRG-502 50 50 539 269 77,0 38,5 385 192 162
    SOV-CLRG-504 100 539 269 77,0 38,5 770 385 212
    SOV-CLRG-506 150 539 269 77,0 38,5 1155 577 262
    SOV-CLRG-508 200 539 269 77,0 38,5 1540 770 312
    SOV-CLRG-5010 250 539 269 77,0 38,5 1924 962 362
    SOV-CLRG-5012 300 539 269 77,0 38,5 2309 1155 412



    Strict Quality Control System

    1. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing

    2. Mechanical performance testing equipment can meet the requirements of mechanical testing, all the use of computer digital display, so theaccuracy is more accurate, so that the mechanical properties of each cylinder barrel has been greatly improved.

    3. Every workpiece is machined according to the confirmed drawings and will be inspected casually by QC according to a certain proportion. The traceable record shall be clear and traceable.

    4. The qualified parts are assembled into one cylinder and then the pressure test will be done.

    5. Before and after assembly, the basic dimensions and workmanship will be inspected again.

    A inspection report will come into being before delivery.



    Characteristic:

    1. High Speed: Working speed is high, cycle time is short, working capacity is more.

    2. High Efficiency: Light weight, more loading capacity.

    3. New model guide ring combined with lubricating material,guarantee smooth lifting.
    4. Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    5. Maintenance-free support, longer working life.
    6. Integrated design, easy to maintain.
    7. 100% tested, guarantee high quality.



    Advantage:

    1. With Rolling technology,the cylinder are straighter ,the surface are harder and its quality are more durable .

    2. All piston rod have to go through comprehensive processing : Heating →Vehicle processing→ Grinding→Polishing→Plating hard chrome→Polishing , this comprehensive processing make the cylinder harder ,wearable and acid .

    3. Andvanced surface treatment :

    a. Environmental automatically pipelined painting

    b. Cleaning with automatic washing machine

    c. Assembling in seal clean workshop



    ISO9001 Garbage Truck Hydraulic Cylinders ,  Long Stroke Hydraulic Oil Cylinder Ram
