|Place of Origin:||Qingdao, China|
|Certification:||GS, RoHS, CE, ISO9001|
|Model Number:||could be customized|
|Minimum Order Quantity:||2 pieces|
|Packaging Details:||carton box|
|Delivery Time:||15-30 work days per year|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||50000 pieces per year|
|Piston Rod:||Stainless Steel, Alloy Steel, Canbon Steel, 27SIMN||Stroke:||Customized Or 2000-3000mm|
|Pressure:||Customized Or 16-35 MPa||Customized Available:||Yes|
|Application:||Garbage Truck, Garbage Station||Max Inner Tube Diameter:||Could Be Customized|

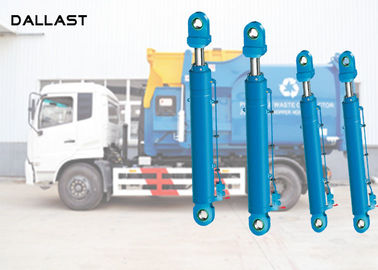

27 SIMN Piston Garbage Truck Hydraulic Cylinders 16-35 MPa Pressure
Typical waste / garbage truck application include:
We improve ourselves from a hydraulic cylinder manufacturer to an excellent hydraulic system design service provider to fit the global market demand. Because of the variety of sanitation vehicles, the cylinders used are also required to have different structure, cylinder diameter and stroke. Our company will adopt the standardized design technology and modular design solution to develop the whole series of cylinder so that the delivery time can be shortened.
pls provide the following information:
1) Hydraulic cylinder Data:
A. Bore size
B. Stroke length
C. Rod Diameter
D. Mounting Type
E. Mounting length
F. Paint color requirement.
A. Type of machine(loader, steer, loader, excavator, ect)
B. Type of function (hoist, swing. Steering, ect)
C. Type of structure (piston, telescopic)
D. Single acting or double acting
E. Operating Pressure
3) Customer Data
A. Contact name
B. Company name
C. Website(if had)
Features & Benefits:
1. Custom sizes available
2. Stroke lengths 2000mm and longer
3. Designs up to 10000 psi working pressure
4. Total weights can often reach nearly 25,000 pounds
5. High yield carbon or alloy steel outer tubes
6. 001" minimum chrome plated carbon or alloy steel rods
7. Options for ductile iron or bronze inlaid steel rod glands
8. Cushioning at both ends of stroke
9. Mounting alternatives include trunnion mount, clevis, pineyes, or lugs with spherical bearings
10. Custom options for ports and integrated valves
11. Diverse preferences for seals due to temperature
12. Linear transducers, proximity switches, and sensors available
13. Extensive pressure testing
14. Finished cylinder is sandblasted and painted to customer specifications
15. Hydrostatic testing data packets and material test reports available
16. Seal kits available for quick shipment
17. Short manufacturing lead times
1. Are you a manufacturer?
We are professional manufacturer in hydraulic. We will provide competitive price.
2. What is your warranty?
Our products are all available for one-year free warranty and product lifetime consulting service.
3. How to ship your product?
We are transported by sea, by air or by international express. According to your needs.
4. Do you support OEM service?
Yes. OEM service is available. We are pleased to process according to the customer's drawings.
About piston rod:
1. High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters.
2. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material.
3. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available.
4. The hard chrome plated of the piston rod according to your requirement.
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Warranty & Service:
We offer 12 months warranty.
As our hydraulic cylinders, hydraulic cylinder parts, such as the piston rod; Shenzhen DALLAST offers one of the best standard products warranties in this industry. We use of defective materials for normal use when properly maintained for 36 months from the date of shipment in normal use and service.
