| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, D/P, L/C |
| Supply Ability: | 50,000 Pieces/Year |
| Pressure Environment: | High Pressure | Special Cylinder Type: | Custom Hydraulic Cylinder |
|---|---|---|---|
| Standard: | Standard, Nonstandard | Load Capacity: | 50 T |
| Steel Material: | 20#, 45# Steel, 21#, 27# SiMn | Test: | 100% Test |
| Usage: | Automation And Control | ||
| High Light: | multi stage telescopic hydraulic cylinder,double acting ram cylinder |
||
Double-acting , hydraulic return
Safety valve built-in prevents damage in case of accidental over-pressurization
Unique bearing design withstands side load forces up to 10% of rated cylinder capacity without scoring
Dismountable hardened grooved saddles are standard
Baking varnished external coating and specially plated piston
Base mounting holes are standard on each model
Plunger wiper reduces contamination, extending cylinder life
Custom Order Notice:
We have more items for this Series,please Contact usfor details.
Capacity 50 - 1000 ton
Stroke 50 - 10000 mm
Max. Working Pressure 900 bar
FAQ :
Q1: How to contact with sales ?
A1: you can send inquiry of our products,it will be replied within 3 hours.
Q2: What's the delivery time(ETD), if I make an order ?
A2: Normal is 1-2 days,Sometimes 3-5 days.
Q3: I want to buy your products; how can I pay?
A3: You can pay T/T , WEST UNION, L/C.
Q4: What information should I give to you for inquiry?
A4: You can email us the part number & descriptions of the products you need.
Q5: What is your main market?
A5: Our main market is north America, especially USA.
Q6: Are you products standard?
A6: Our model is standard, if you have specific demand, pls tell us.

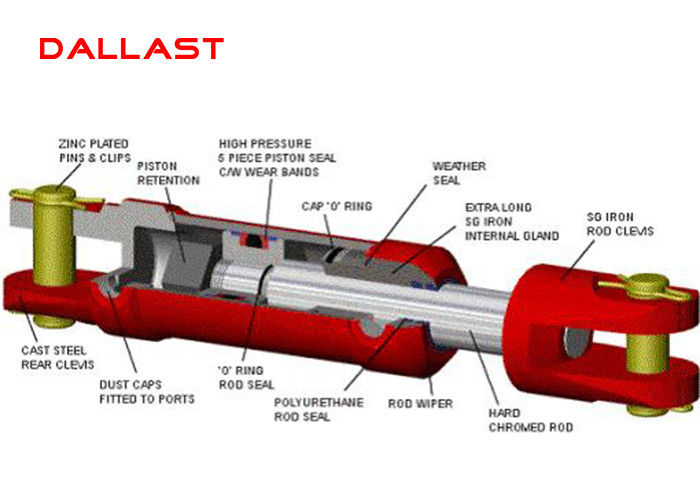

Double acting
The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.
Parameter :
| Application | Various Machinery, Trucks etc. |
| Material of cylinder tube | Alloy Steel |
| Coating | All tubes are chromeplated |
| Working pressure | 5MPa-32MPa |
| Certification | ISO9001:2008, SGS, TS16949 |
| Warranty | One year |
| Working temperature | -30° C to 80°C |
| Model No | Could be designed |
| Stroke | 200-11000mm |
| Package | Shrink film, pallet, plywood case, carton box |
| Main export market | USA, Canada, South Korea, Russia, Australia, Malaysia, Fiji Island, Kenya, Philippines |
| Mouting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Dallast Technology Co., Ltd specializes in the design, production, sale and technical support of Hydraulic Cylinders for plastic injection and die casting mold applications. DALLAST’s strategy consists of providing application oriented solutions, rather than simple products. Offering their standard 160 ISO 4 tie bar cylinders to compact block cylinders and locking cylinders to suit most mold applications. | |

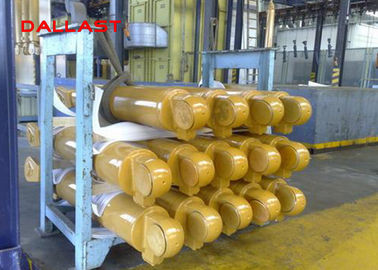

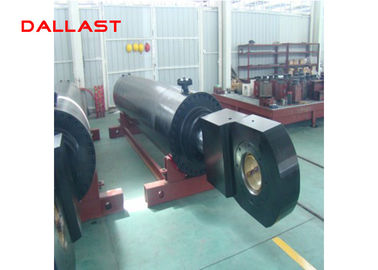

Product Show :
