Chromed Heavy Duty Hydraulic Ram Cylinder for Engineering Truck

High Pressure Double Acting Hydraulic Cylinder for Engineering Truck

Description:

1. Big lifting force:
Adopt high strength imported(Italy Marcegaglia ) materials, work under pressure up to 22 MPa, the unit weight of the lifting force is 10% ~ 20% higher than the similar products.

2. High security:
excellent structural design ensure the oil cylinder lift smoothly, improve safety operation and create the most valuable security guarantee for the user.

3. Stronger weather resistance:
The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.

4. Best performance:
excellent performance product and longer lifetime brings visible benefit and no worries.

Cylinder Advantages:

• Professional manufacturer& supplier of Hydraulic Cylinders
• Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
• Experience in export North America, Australia, Asia, Middle East, Africa;
• Hydraulic Cylinders can be Make according to client's requirements;
• The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;

FAQ :

Q1: How to contact with sales ?

A1: you can send inquiry of our products,it will be replied within 3 hours.

Q2: What's the delivery time(ETD), if I make an order ?

A2: Normal is 1-2 days,Sometimes 3-5 days.

Q3: I want to buy your products; how can I pay?

A3: You can pay T/T , WEST UNION, L/C.

Q4: What information should I give to you for inquiry?

A4: You can email us the part number & descriptions of the products you need.

Double acting

The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.

Parameter :

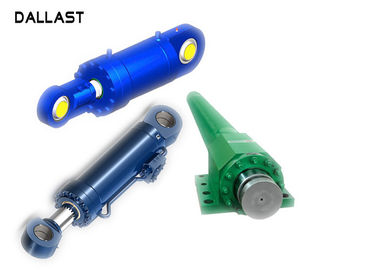

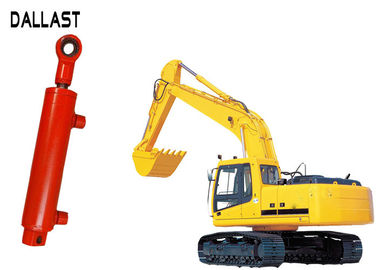

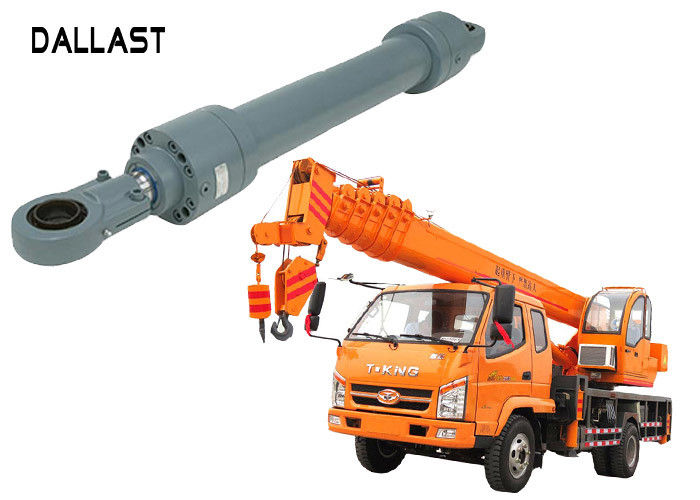

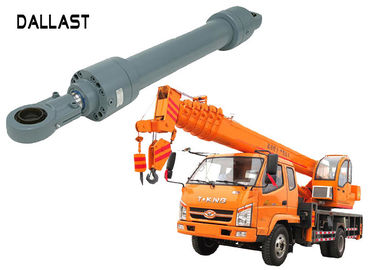

Product Show :
