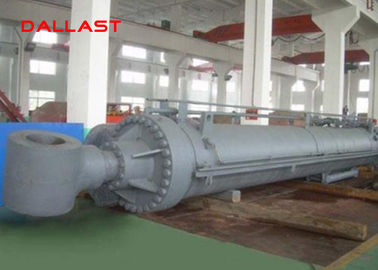

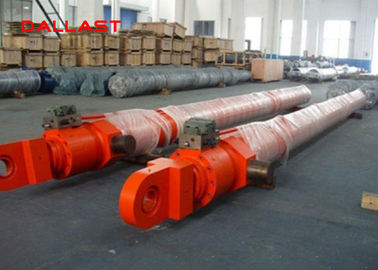

Double Acting Welded High Pressure Hydraulic Cylinder with Piston

Double Acting Welded High Pressure Hydraulic Cylinder with Piston

    • Double Acting Welded High Pressure Hydraulic Cylinder with Piston
    • Double Acting Welded High Pressure Hydraulic Cylinder with Piston
    • Double Acting Welded High Pressure Hydraulic Cylinder with Piston
  • Double Acting Welded High Pressure Hydraulic Cylinder with Piston

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Pressure Environment: Medium Pressure Special Cylinder Type: Custom Hydraulic Cylinder
    Available Temperature: -40℃ To 80℃ Model Number: OEM
    Certification: Gs, RoHS, Ce, ISO9001 Work Temperature: Normal Temperature
    Warranty: 12 Months Material: 20#, 45# Steel, 21#, 27# SiMn
    High Light:

    multi stage telescopic hydraulic cylinder

    ,

    double acting ram cylinder

    Double Acting Welded High Pressure Hydraulic Cylinder with Piston for Industry Machine



    Quality:



    Key Specifications/Special Features:

    Product description:

    Hydraulic cylinder for Australia market

    Double-acting applications
    Standard color: black, red, etc.
    Steel piston and five piece seal
    Port: Qingdao
    100% hydro-pressure test
    Rod surface treatment:
    Superior quality chrome plated
    Apply loctite to rod end thread



    Application Various Machinery, Trucks etc.
    Material of cylinder tube Alloy Steel
    Coating All tubes are chromeplated
    Working pressure 5MPa-32MPa
    Bore size 40mm-855mm
    Color Any color
    Mouting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001:2008, SGS, TS16949
    Warranty One year
    Working temperature -30° C to 80°C
    Model No Could be designed
    Stroke 200-11000mm
    Package Shrink film, pallet, plywood case, carton box
    Main export market USA, Canada, South Korea, Russia, Australia, Malaysia, Fiji Island, Kenya, Philippines

    Description:

    These high quality welded hydraulic cylinders are manufactured in accordance with the needs and standards of the world market. The product created for use in various types of machinery such as construction, transportation, agriculture, and waste. Rigid welded construction, high tensile welded steel end mounts, threaded front cover and quality seal allow H&H Hydraulics' cylinders to work in harsh conditions. All cylinders are fully and easily maintainable. Each unit's node runs through 150% pressure test before shipping. Cylinders manufactured in accordance with ISO9001. Applications: Double action heavy duty hydraulic cylinder Tube: High tensile honed cold drawn tube Rod: High tensile ground & polished hard chrome plated rod Gland: Precision threaded gland with wear rings for long life Piston: High tensile steel for heavy duty applications Base ends: High tensile welded steel end mounts Piston seals: Top quality five components compact seals for excellent performance Rod seals: Standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings and polyurethane wiper Ports: SAE 6 O-rings Warranty: 1 year limited warranty Color: Black Pin Size: 1" Work Pressure: 3000 PSI



    Company Profile :



    Dallast Technology Co., Ltd specializes in the design, production, sale and technical support of Hydraulic Cylinders for plastic injection and die casting mold applications. Dallast’s strategy consists of providing application oriented solutions, rather than simple products. Offering their standard 160 ISO 4 tie bar cylinders to compact block cylinders and locking cylinders to suit most mold applications.



    FAQ :



    Q1: how to contact with sales ?

    A1: you can send inquiry of our products,it will be replied within 3 hours.



    Q2: What's the delivery time(ETD), if I make an order ?

    A2: Normal is 1-2 days,Sometimes 3-5 days.



    Q3: I want to buy your products, how can I pay?

    A3: You can pay T/T , WEST UNION, L/C.



    Q4: What information should I give to you for inquiry?

    A4: You can email us the part number & descriptions of the products you need.



    Product Show :

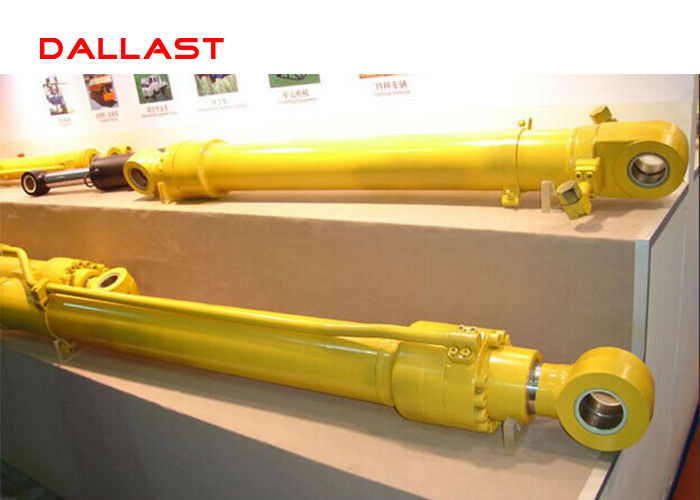

    Double Acting Welded High Pressure Hydraulic Cylinder with Piston
