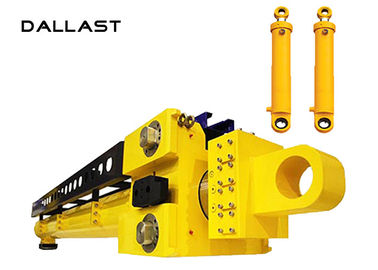

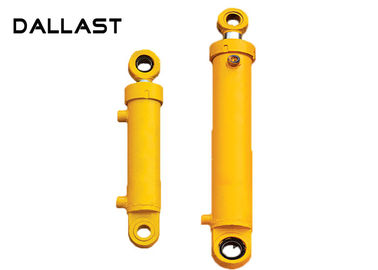

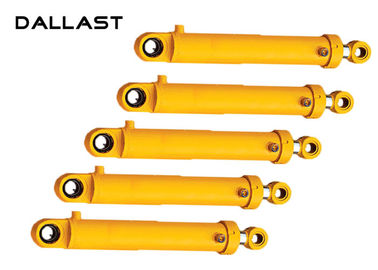

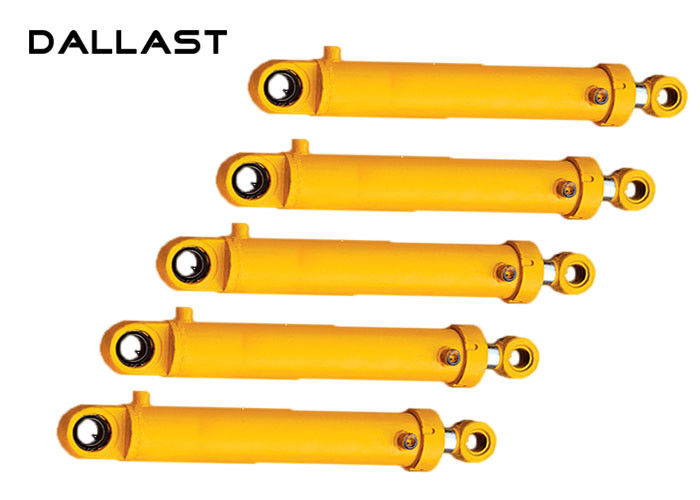

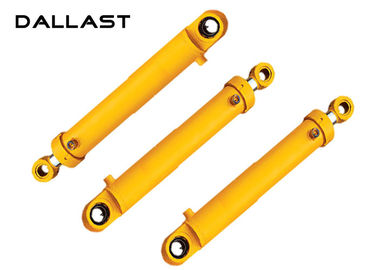

GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm

GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm

    • GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm
    • GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm
    • GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm
    • GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm
  • GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Piston Rod: 10-1500 Mm, Tempering, Plated Nickel, Chrome Or Cer Seals: Parker, Merkel, Hallite
    Origin: Shandong China Hardness: HRC 20-50
    Body Material: Steel Maximum: As Per Clients Require
    High Light:

    telescopic double acting cylinder

    ,

    hydraulic oil cylinder

    Mobile Drill Rig Trucks Stroke 800 mm Industrial Hydraulic Cylinder



    Hydraulic cylinders are single or double acting hydraulic motors with linear reversible motion. They are used as driving units of hydraulically operated equipment, vehicle hoists, forest, agricultural and construction machinery, and in the mobile hydraulics generally. Wide variety of types and terminations of cylinders and pistons makes big variability of applications possible.



    Gland Ductile iron ASTM A536 65-45-12
    Piston Ductile iron ASTM A536 65-45-12 for excellent life
    Port Plug(Sealed) Steel w/Teflon tape
    Cap Ductile iron ASTM A536 65-45-12
    Wiper Polyurethane
    Rod seal Std PolyPak with B lip design (Polyurethane U-cup with nitrile O-ring expander)
    Tube seal O-ring
    Piston ID Seal O-ring
    Piston OD seal Bronze impregnated PTFE piston ring w/rectangular CS nitile expander





    Material Description

    1. The piston rod: high-precision mirror polishing

    Material 45 # high-quality carbon steel or 40cr high-frequency hardness HRC55 ° ± 2 ° Straightness ≤ 0.08mm / m

    Modulation hardness HB240-260 Chromium thickness 0.03mm-0.06mm Surface roughness Ra0.03um-Rao0.06um

    High frequency depth of 2mm-3mm chromium layer hardness HV800-1000vpn diameter tolerance f7

    2. Cylinder: a rolling imported equipment

    Material Straightness Dimensional Accuracy Bore Roughness Tensile Strength Hardness HB 45# 0.3-1/1000 H8-H9 0.4-0.8 647 207



    Feature:

    1. Small size, light weight, high strength: Adopting material selection and processing technology of oil cylinder body and piston rod according to the analysis of load frequency strength, fatigue design and welding technology, through ultrasonic flaw detection, Lightweight, high strength, high reliability.



    2. Sealing system: The company's unique sealing system design to prevent soil sand dust, reduce oil leakage, get a good piston rod film.



    3. Safety / buffer function: according to need, can be easily installed with a variety of special slow return, counter balance and emergency shutdown and other functions of the valve. But also built-in can absorb the shock in the terminal end of the buffer mechanism



    4. Series of cylinder is reasonable, and complete series products can meet the needs of heavy haul transportation, mine transportation and city sediment transportation,etc.



    5. Operating system is reasonable, overall system performance is more stable.



    GS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mmGS Industrial Hydraulic Cylinder Mobile Drill Rig Trucks Stroke 800 mm
