    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 10000PCS per year
    Contact Now
    Detailed Product Description
    Size: Customized Power: Hydraulic Oil
    Usage: Garbage Truck , Sanitation Vehicles,Sanitation Station Material: Alloy Steel,Carbon Steel,27SiMn
    HS Code: 8412210000 Type: Several Types For You Choice



    Multistage Push Plate Garbage Truck Hydraulic CylindersDouble Acting





    Product Advantage:

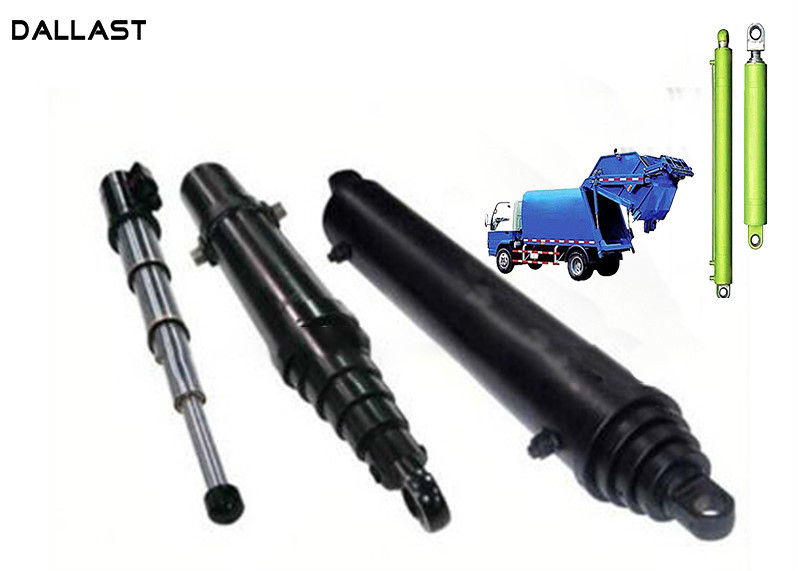

        Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Push-push cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.



       According to user requirements, design and manufacture .




    Multistage Push Plate Garbage Truck Hydraulic CylindersDouble Acting TS16949 Certification



    Model Name

    Pressure

    MPa

    Stroke

    mm

    Bore/Rod

    mm

    HSG63/35-110*470 Flip cylinder



    16

    110 63(35)
    HSG100/45*800 Lift cylinder(L / R) 16 800 100(45)
    HSG90/45*485 Lift cylinder(L / R) 16 485 90(45)
    HSG40/20-400*700 Lock pin cylinder



    18

    400 40(20)
    HSG80/40*430 Scraper cylinder(L / R) 18 430 80(40)
    3HSTG150-1935A*1000 Multistage double action push plate cylinder







    16

    1935

    150/120/90

    (135/105/75)

    4HSTG180*5500 Multistage double action sanitation station push plate cylinder 16 5500

    180/150/120/90

    (165/135/105/75)



    Hydraulic cylinder failure and troubleshooting
    1, the viscosity of hydraulic cylinder working oil is 29 ~ 74㎜2 / S, recommended ISO VG46 anti-wear hydraulic oil. Working oil temperature in the -20 ℃ ~ +80 ℃ range. In the ambient temperature and low temperature, the choice of lower viscosity oil. If there are special requirements, please specify separately.
    2, the hydraulic cylinder requirements of the system filtering precision of not less than 80μm requirements, we must strictly control the oil pollution, to keep the oil clean, regularly check the performance of the oil, and make the necessary fine filter and replace the new working oil.
    3, the installation should ensure that the direction of the top of the piston rod connector should be in the cylinder head, earrings (or the middle hinge axis) in the same direction, and to ensure that the entire piston rod in the process of straightness to prevent rigid interference phenomenon, resulting in not Necessary damage.
    4, when the hydraulic cylinder installed on the host, the operation of the test should first check the oil port piping parts and guide sleeve at any leak, and the middle of the earrings and hinge bearing parts refueling.
    5, hydraulic cylinder oil leakage and other failures to be demolished, the application of hydraulic oil to move the piston to the end of the cylinder position, demolition should try to avoid improper knocking and sudden drop.
    6, before disassembly, should release the relief valve, the hydraulic circuit pressure is reduced to zero, and then cut off the power to stop the hydraulic device, release the port pipe, the oil plug plug the port.
    7, the hydraulic cylinder can not be used as an electrode ground, so as to avoid electric shock to the piston rod.
    8, common faults and troubleshooting methods can refer to the table below the methods listed in the maintenance:
    9, within 12 months, the company's products in the user to comply with the custody, use, installation, transportation rules under the conditions, where the quality of the damage occurred, can not work, and a complete record of use, the company responsible for the user for free Repair or replace.

    Multistage Push Plate Garbage Truck Hydraulic CylindersDouble Acting TS16949 Certification
