Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder

Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder

    • Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder
    • Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder
    • Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder
  • Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as to your needs
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Working Method: Straight Trip Available Temperature: -40℃ To 80℃
    Customized: Yes, Welcome Material: 20#, 45# Steel, 21#, 27# SiMn
    Power: Hydraulic Hardness: HRC 45-55
    Usage: Automation And Control Business Type: Manufacturer
    High Light:

    hydraulic oil cylinder

    ,

    hydraulic ram cylinder



    Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder





    Quality:



    Dallast Technology Co., Ltd is ISO 9001 Certified for Design and Manufacturing of Hydraulic Cylinders. This certification encompassed with Lean Manufacturing allows us to ensure our products are safe, reliable and of superior quality. Learn more about how we implement Lean Manufacturing here.
    Our facility upholds strict cleanliness guidelines at all times. Through a 5S system we maintain a clean and organized environment. This allows us to guarantee your cylinders are produced promptly and efficiently.



    Our in-house designers and R&D department will assist you in developing new designs, redesign or troubleshoot your existing cylinder. Using Solidworks software and innovative materials we custom design cylinders that fit your application. Designers are involved in testing 100% of our products before they leave our facility.



    The specification of Hydraulic Cylinder
    Bore of Hydraulic Cylinder 40mm-1000mm(1 1/2 inch - 40 inch)
    Diameter of Piston Rod 12mm-500mm(1 1/2 inch - 20 inch)
    Stroke Max.12000mm(480inch)
    Working Pressure Max. 700bar(10150psi)
    Seals PAKER(USA),MERKEL(GERMANY),HALLITE(ENGLAND),NOK(JAPAN)
    Material of Tube SAE1020(20#),SAE1045(45#),16Mn(Q345B),27SiMn
    Material of Piston Rod 35#,SAE1045(45#),35CrMo,42CrMo4
    Surface Roughness of Tube R0.16-0.32μm
    Technical Treatment of Piston Rod Quenched and tempered.1.5mm-1mm,or 1.3mm per millimeter
    Oil port SAE, NPT, NPTF, BSP,GOS
    Mounting style Earrings, flange, foot mounting, trunnion, cross tube
    Painting Follow customers' requirements
    Color Any Color

    Key Specifications/Special Features:

    Product description:
    Bore of hydraulic cylinder: 40-1000mm (1 1/2-40-inch)
    Diameter of piston rod: 12-500mm (1/2-20-inch)
    Stroke of hydraulic cylinder max: 15500mm (610-inch)
    Working pressure of hydraulic cylinder: 10-70MPa
    Brand of seal kits: Parker (USA) Hallite (England) NOK (Japan)
    Materials of Hydraulic cylinder tube: 27SiMn, 1020# steel, 1045# steel, 16Mn (Q345B)
    Surface roughness of tube: R 0.16-0.32μm
    Materials of piston rod: 42CrMo, 1045# steel
    Technical treatment of piston rod quenched and tempered chromed
    Painting: follow with customer requirements (we can make the hydraulic cylinders according to the client's requirements or drawings and you can choose the color of the hydraulic cylinder that you need)

    Characteristics:
    -1) Larger diameter, more lifting capacity
    -2) Max working pressure reaches 190 bar, better anti-pressure ability
    -3) Special material with high quality, high-precision, better anti-bending ability
    -4) New model guide ring combined with lubricating material, guarantee smooth lifting
    -5) Modified seal structure, guarantee no oil leak under high pressure and bad working environments
    -6) Maintenance-free support, longer working life
    -7) Integrated design, easy to maintain
    -8) 100% tested, guarantee high quality

    Flanges, trunnions, clevises, lugs are common hydraulic cylinder mounting options, piston rod also has mounting attachments to connect the cylinder to the object or machine component that it is pulling/pushing.

    Applications:
    This hydraulic cylinder is mainly widely used in tractors, harvester, farm truck, log splitter, trailer, etc.

    Packing and shipping:
    With standard export carton /wooden case packing, or as customer’s requirements.

    Our services:
    All our hydraulic cylinder products with 1 year warranty period
    If happened problems in the usage of warranty time, send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air and urgent questions, make an call for us.

    Our advantages:
    1. Customization and OEM service is acceptable for us.
    2. All of our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.
    3. Samples can be provide to you before starting cooperation.
    4. We are factory and can assure the prompt delivery time.
    5. Packing can be customized, often using standard export wooden case packing.

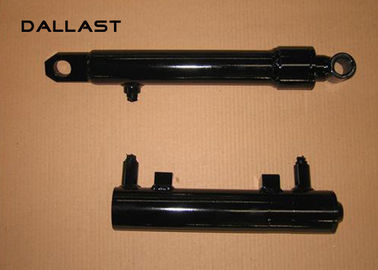

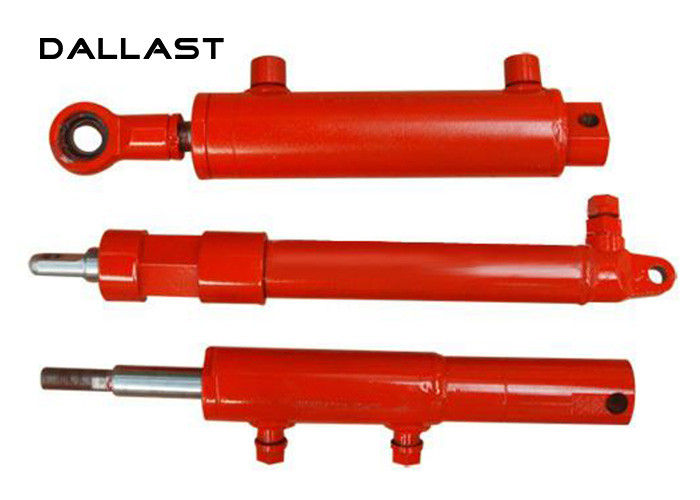

    Product Show :



    Customized Double Acting Hydraulic Ram for / Trailer / Truck , Hydraulic Ram Cylinder
