| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 3000PCS per year |
| Standard: | Nonstandard | Speed: | 0.1-0.8（m/s） |
|---|---|---|---|
| Rod Diameter: | 16-500（mm） | Bore Diameter: | 20-1000（mm） |
| Stroke: | 12000（mm） | Working Pressure: | 31.5MPa |
| Speed Ratio: | 1-5 | Size: | Customized |
| High Light: | multi stage telescopic hydraulic cylinder,double acting ram cylinder |
||

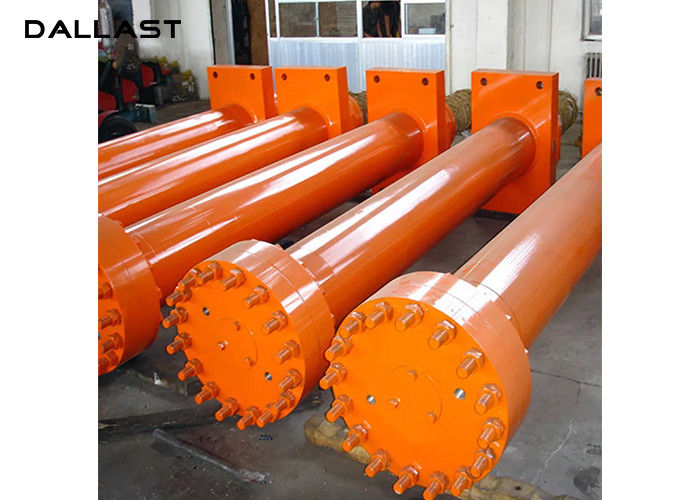

Customized Hydraulic Oil Cylinder 31.5MPa Working Pressure TS16949 Certification
We are a professional hydrauli cylinder manufacturer that designs and manufactures Custom Hydraulic Cylinders used in a variety of applications. We believe that our expertise in specialized cylinders,coupled with our highly advanced equipments, enables us to provide you with superior transmission solutions.
Can be customized according to the needs of 31.5-200MPa working pressure of the hydraulic cylinder, with many years of experience in the design and manufacture of high pressure hydraulic cylinder
| HS Code | 8412210000 |
| Material of cylinder tube | Alloy steel |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Coating | chrome plated |
| Temperature | -30ºC~150ºC |
| Color | red black blue gray,can custom according request |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Warranty | One year after shipping arrival |
| Delivery time | 20- 25 days after down payment |
Technical Indices
| Rated Pressure | 25MPa |
| Pressure-Proof | 37.5MPa |
| Min. Starting Pressure | <0.3MPa |
| Acting Temperature | -20ºC~80ºC |
| Max. Working Speed | 0.5m/s |
| Working medium | Mineral oil water glycol and other media |
