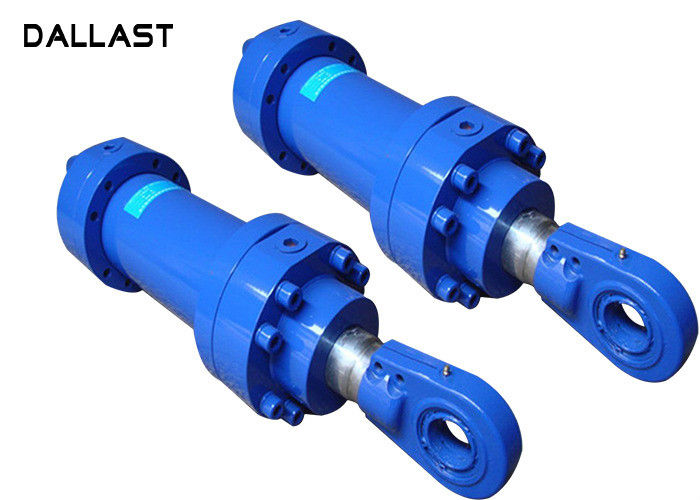

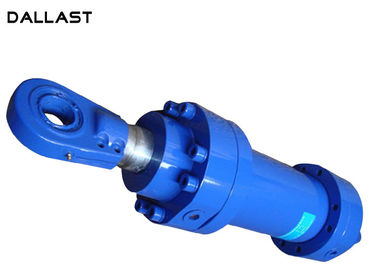

ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type

ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type

    • ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type
    • ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type
  • ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 3000PCS per year
    Contact Now
    Detailed Product Description
    Material: 45# Steel, 27# SiMn Name: Hydraulic RAM
    Color: Red Black Blue Gray,can Custom According Request Size: C 25 、D 25 、OEM / ODM
    Working Pressure Pressure: High Pressure Warranty: 1 Year
    Temperature: -30ºC~300ºC Usage: Wide Range Of Uses



    ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type





    Product Features:



    Medium: mineral oil, water - ethylene glycol or other media.



    Maximum working pressure: 25Mpa



    Both ends of the flange, modular structure, easy to manufacture, easy maintenance.



    Type Specifications:



        Common Type A total of 16 bore specifications, each with 2 × 8 assembly forms, composed of 256 varieties.

        C25, D25 series cylinder bore D = 50 ~ 400 (except D = 40) can be equipped with built-in displacement sensor. Its features: according to the conditions needed to control the hydraulic cylinder in any desired position to send accurate control signals. Give full play to the hydraulic cylinder mechanization, automation. With analog, digital and bus and other output methods, action sensitive, rapid response, to achieve a high-speed, accurate industrial automation and control.

        The basic parameters in line with ISO standards and GB standards, installation and dimensions in line with international standards of steel mills.

        Wide range of uses: This series of hydraulic cylinders is suitable for a variety of industrial sectors, such as metallurgy, mining, lifting, transportation, shipping, forging, casting, machine tools, coal, petroleum, chemical, scientific research, military and so on.

        Seals, guides: all domestic can also be used by the user all the imported components.

        This high pressure hydraulic cylinder is special product, please send us data. we can customzied for you.



    Structure Piston cylinder
    Hardness HRC40-55
    Seal Merkel,Parker
    Temperature -30ºC~300ºC
    Working pressure 16-32mpa
    Mounting Type Front Flange
    Plunger 20#, 45# steel with high frequency quenching
    Package shrink film, pallet, plywood case and carton
    Warranty One year after shipping arrival
    Delivery time 15- 25 days after down payment





    ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type

    ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type
