    Product Details:

    Place of Origin: CHINA
    Brand Name: DALLAST
    Certification: SGS TUV
    Model Number: Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: 15-25DAYS
    Payment Terms: T/T
    Supply Ability: 100000PCS/YEAR
    Contact Now
    Detailed Product Description
    Material: 45# 42CrMo 40Cr 40CrMo4 Color: Black
    NSS: Endure1000 Hours Type: Hollow/Solid Rod
    Application Environment: At Sea Or In Harsh Environments Surface Hardness: >HV850
    High Light:

    chrome plated round bar

    ,

    piston rod cylinder

    DALLAST Hydraulic Hollow piston Rods In Harsh Environment NSS More 240 360 580 900 Hours 40CrMo4

    Send The Sample For Your Testing



    In the whole crafts process, there are 2 times remove hardening forces: the first remove hardening force in the heat treatment process, hardening force remove is about 80%; the second remove hardening force in the surface treatment process, hardening force remove is about 90%-95%. Therefore, the piston rod is not easily deformed during use or transportation.

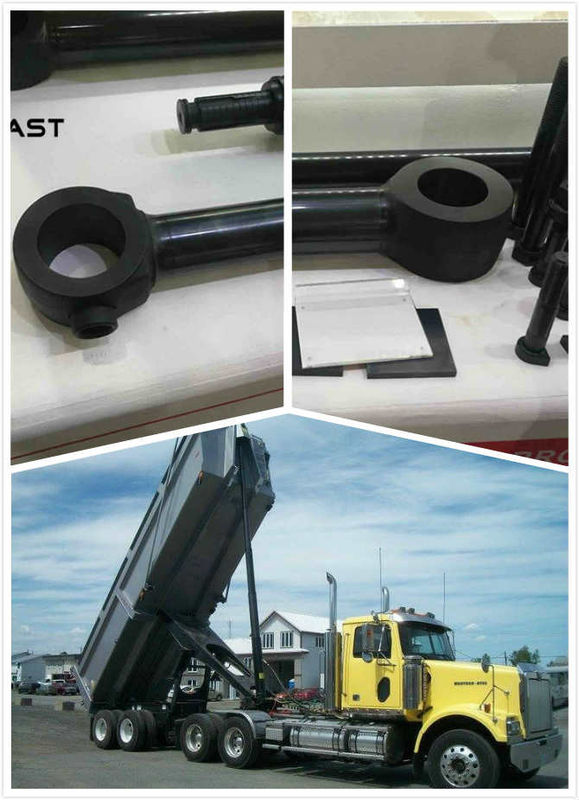

    Application range: Marine equipment, ships, garbage trucks, harsh environmental requirements

                                 Double Acting Hydraulic Cylinder ,Single Acting Hydraulic Cylinder ,

                                 Telescoping  Hydraulic Cylinder




    specification φ3-φ12 φ16-φ25 φ30-φ50 φ55-φ100 φ105-φ120
    Length 200-2000 200-3000 200-5000 200-10000 1000-10000
    Scheduling axis hardness HB220-280
    Surface hardness >860 HV0.1 The straightness 0.15/1000mm
    Accuracy g6 grade h7 grade Hardened layer depth 0.8-3mm
    Roundness tolerance



    <=0.01

    APT thickness 10um-40um
    Full length tolerance



    <=0.02

    The materiel 42CrMo4
    Surface roughness Ra 0.2- 0.4




    CHEMICAL COMPOSITION
    Material C% Mn% Si% S% P% V% Cr%
    Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035
    ST52 0.22 1.6 0.55 0.035 0.04
    20MnV6 0.16-0.22 1.30-1.70 0.10-0.50 0.035 0.035 0.10-0.20
    42CrMo4 0.38-0.45 0.60-0.90 0.15-0.40 0.03 0.03   0.90-1.20
    40Cr 0.37-0.45 0.50-0.80 0.17-0.37       0.80-1.10

    MECHANCIAL PROPERTIES

    Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY CONDITION
    CK45 610 355 15 >41J NORMALIZE
    CK45 800 630 20 >41J Q + T
    ST52 500 355 22   NORMALIZE
    20MnV6 750 590 12 >40J NORMALIZE
    42CrMo4 980 850 14 >47J Q + T
    40Cr 1000 800 10   Q + T


    NSSTesting Standing ISO9227:2017

    · Sal solution: 50 (+/- 5) g/l of NaCl. Water is demineralized and salt purity is 99.5%.
    · Environmental temperature: 35 °C.
    · pH of salt solution is 6.8.
    · Volumen of salt solution is 38.4 ml/day.
    · Density of salt solution is 1,030 g/cm3.
    · Spraying is 1.5 (+/- 0.5) ml/h.
    Test Result :NSS can endure 300 hours ;500 hours; 800 hours

    SGS NSS Testing Report         TUV NSSTesting Repopt

    FAQ :

    Q1: How to make payment?
    A1: Generally speaking, 30% prepaid, the balance paid before the shipment.


    Q2: The delivery time?
    A2:Within 15 days for samples.15-30 days for bulk production, which is depend on quality, production process and so on.


    Q3: What is the packing method?
    A3: For small piece, we use carton box; for big piece, we use exporting grade plywood case, or as your requirement.


    Q4: How to ship?
    A4: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.


    Q5: What is the warranty?
    A5: 12 months against B/L date.


    Q6: Are you a manufacturer or trading company?
    A6: Manufacturer. We are a manufacturer with 15 years history.
