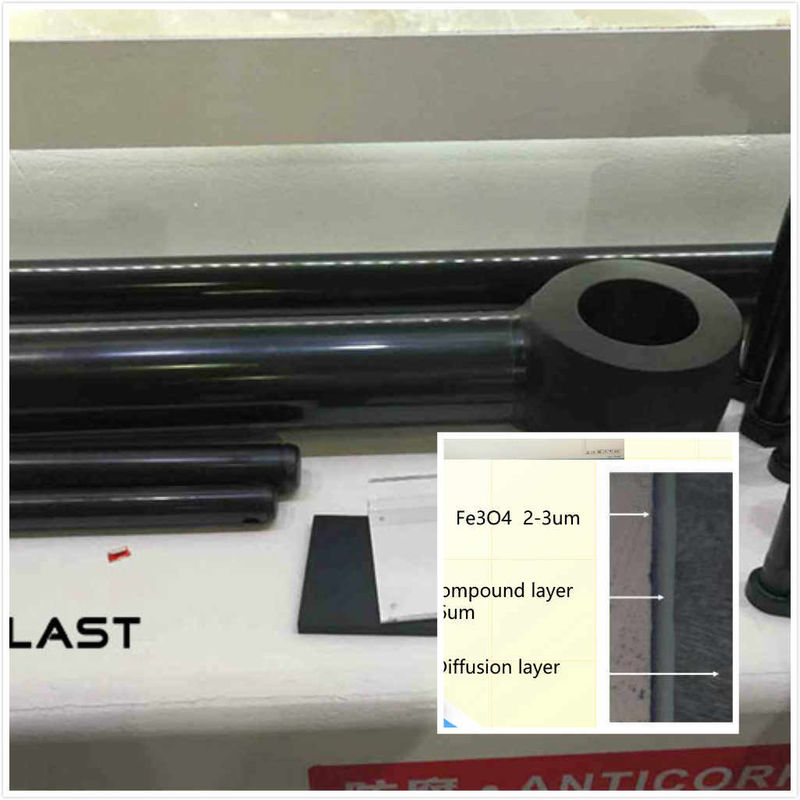

Hydraulic Hollow Piston Chrome Plated Rod In Harsh Environment NSS More 500 900 Hours 42CrMo4

Hydraulic Hollow Piston Chrome Plated Rod In Harsh Environment NSS More 500 900 Hours 42CrMo4

    • Hydraulic Hollow Piston Chrome Plated Rod In Harsh Environment NSS More 500 900 Hours 42CrMo4
    • Hydraulic Hollow Piston Chrome Plated Rod In Harsh Environment NSS More 500 900 Hours 42CrMo4
  • Hydraulic Hollow Piston Chrome Plated Rod In Harsh Environment NSS More 500 900 Hours 42CrMo4

    Product Details:

    Place of Origin: CHINA
    Brand Name: DALLAST
    Certification: SGS TUV
    Model Number: Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: 15-25DAYS
    Payment Terms: T/T
    Supply Ability: 100000PCS/YEAR
    Contact Now
    Detailed Product Description
    Material: 45# 42CrMo 40Cr 40CrMo4 Color: Black
    NSS: Endure1000 Hours Type: Hollow/Solid Rod
    Application Environment: At Sea Or In Harsh Environments Surface Hardness: >HV850

    Hydraulic Hollow piston Rods In Harsh Environment NSS More 500 900 Hours 42CrMo4

    Send The Sample For Your Testing



    specificationφ3-φ12φ16-φ25φ30-φ50φ55-φ100φ105-φ120
    Length200-2000200-3000200-5000200-100001000-10000
    Scheduling axis hardnessHB220-280
    Surface hardness>860 HV0.1The straightness0.15/1000mm
    Accuracyg6 grade h7 gradeHardened layer depth0.8-3mm
    Roundness tolerance



    <=0.01

    APT thickness10um-40um
    Full length tolerance



    <=0.02

    The materiel42CrMo4
    Surface roughnessRa 0.2- 0.4




    CHEMICAL COMPOSITION
    MaterialC%Mn%Si%S%P%V%Cr%
    Ck450.42-0.500.50-0.800.040.0350.035
    ST520.221.60.550.0350.04
    20MnV60.16-0.221.30-1.700.10-0.500.0350.0350.10-0.20
    42CrMo40.38-0.450.60-0.900.15-0.400.030.03 0.90-1.20
    40Cr0.37-0.450.50-0.800.17-0.37   0.80-1.10

    MECHANCIAL PROPERTIES

    MaterialT.S N/MM2Y.S N/MM2E%(MIN)CHARPYCONDITION
    CK4561035515>41JNORMALIZE
    CK4580063020>41JQ + T
    ST5250035522 NORMALIZE
    20MnV675059012>40JNORMALIZE
    42CrMo498085014>47JQ + T
    40Cr100080010 Q + T


    NSSTesting Standing ISO9227:2017

    · Sal solution: 50 (+/- 5) g/l of NaCl. Water is demineralized and salt purity is 99.5%.
    · Environmental temperature: 35 °C.
    · pH of salt solution is 6.8.
    · Volumen of salt solution is 38.4 ml/day.
    · Density of salt solution is 1,030 g/cm3.
    · Spraying is 1.5 (+/- 0.5) ml/h.
    Test Result :NSS can endure 300 hours ;500 hours; 800 hours

    SGS NSS Testing Report         TUV NSSTesting Repopt

    Main hydraulic cylinder parts:

    Precision cold drawn steel, honing steel, precision piston rod, hydraulic cylinders and various hydraulic system design and manufacturing. The company has a professional production plant, for many years engaged in hydraulic engineering research and design experts and have rich practical experience in engineering and technical personnel, a dedicated production equipment, advanced production technology, and improve the quality assurance system to ensure product quality , With the best after-sales service for customers value.
