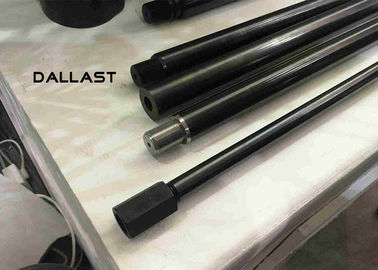

Piston Hollow Chrome Plated Rod Bar NSS 500 Hours 42CrMo 45# For Single Acting Hydraulic Ram

Piston Hollow Chrome Plated Rod Bar NSS 500 Hours 42CrMo 45# For Single Acting Hydraulic Ram

    • Piston Hollow Chrome Plated Rod Bar NSS 500 Hours 42CrMo 45# For Single Acting Hydraulic Ram
    • Piston Hollow Chrome Plated Rod Bar NSS 500 Hours 42CrMo 45# For Single Acting Hydraulic Ram
    • Piston Hollow Chrome Plated Rod Bar NSS 500 Hours 42CrMo 45# For Single Acting Hydraulic Ram
  • Piston Hollow Chrome Plated Rod Bar NSS 500 Hours 42CrMo 45# For Single Acting Hydraulic Ram

    Product Details:

    Place of Origin: CHINA
    Brand Name: DALLAST ATP
    Certification: SGS TUV
    Model Number: Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 1

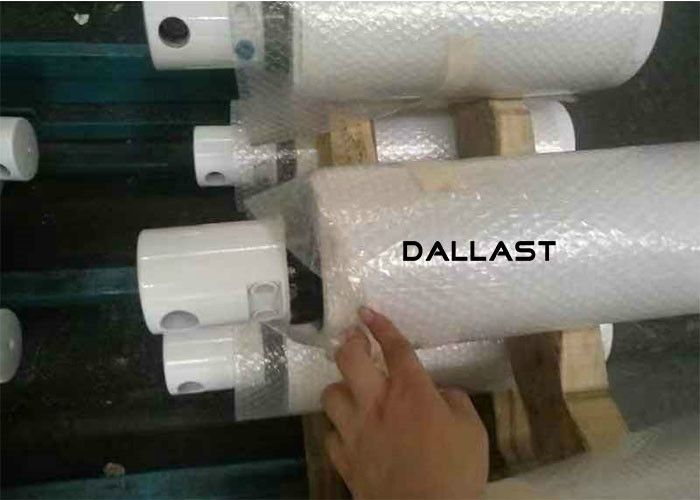

    Packaging Details: Wooden box
    Delivery Time: 15-25DAYS
    Payment Terms: T/T
    Supply Ability: 100000PCS/YEAR
    Contact Now
    Detailed Product Description
    Material: 45# 42CrMo Color: Black
    NSS: Endure 300;500;800hours Type: Hollow/Solid Rod
    SURFACE ROUGHNESS: Ra≤0.2 Micron And Rt≤2 Micro Surface Hardness: >HV850
    TOLERANCES ON DIA: ISO F10 On The Diameter
    High Light:

    chrome plated steel tube

    ,

    piston rod cylinder

    42CrMo Hydraulic Cylinder Piston Hollow Rods Hard Chrome Plated Steel Bar NSS 500 Hours



     NSS Testing Standing une-en iso9227:2017



    · Sal solution: 50 (+/- 5) g/l of NaCl. Water is demineralized and salt purity is 99.5%.

    · Environmental temperature: 35 °C.

    · pH of salt solution is 6.8.

    · Volumen of salt solution is 38.4 ml/day.

    · Density of salt solution is 1,030 g/cm3.

    · Spraying is 1.5 (+/- 0.5) ml/h.

    Test Result :NSS can endure 300 hours ;500 hours; 800 hours



    SGS NSS Testing Report                       TUV NSSTesting Repopt





    Heat treatment

    1.Quenching with fire about 860 °C, placed in furnace box

    2. After quenching, put into the oil tank to cool from the box furnace

    3. After cooling, the first time tempering: tempered at 640 °C and the hardness is controlled at about HRC28-32, the first time tempering cooling is used Water-cooled.

    4. Straightening: The outer circle is controlled by 200 um(0.2mm) ;

    straightening equipment:

    three-roller straightening machine;

    hydraulic straightening machine (multipoint straightening)

    5. The second tempering removes the hard force, the temperature is about 480 °C, and Keep warm for 2 -2.5hours ; release 80% more or less



    CHEMICAL COMPOSITION



    Material C% Mn% Si% S% P% V% Cr%
    Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035
    ST52 0.22 1.6 0.55 0.035 0.04
    20MnV6 0.16-0.22 1.30-1.70 0.10-0.50 0.035 0.035 0.10-0.20
    42CrMo4 0.38-0.45 0.60-0.90 0.15-0.40 0.03 0.03   0.90-1.20
    40Cr 0.37-0.45 0.50-0.80 0.17-0.37       0.80-1.10

    MECHANCIAL PROPERTIES

    Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY CONDITION
    CK45 610 355 15 >41J NORMALIZE
    CK45 800 630 20 >41J Q + T
    ST52 500 355 22   NORMALIZE
    20MnV6 750 590 12 >40J NORMALIZE
    42CrMo4 980 850 14 >47J Q + T
    40Cr 1000 800 10   Q + T



    Company Profile :



    Dallast Technology Co., Ltd is a leading professional manufacturer of hydraulic cylinder more than 15 years, we are specializing in developing, designing, manufacturing, sales and after sales service of hydraulic cylinder, not only the standard but also OEM products. In order to provide better products to our customers, we make a huge investment to introduce our advanced hydraulic technology at home and abroad, such as CNC machine, automatic cylinder welding equipment, cylinder turning center, plasma cutting machine etc.
