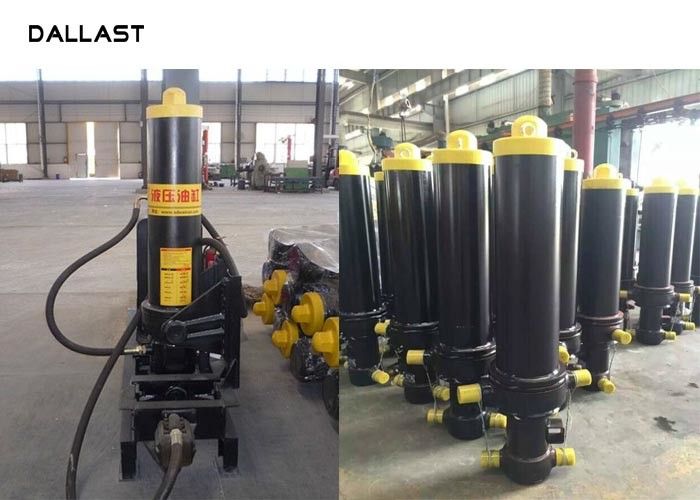

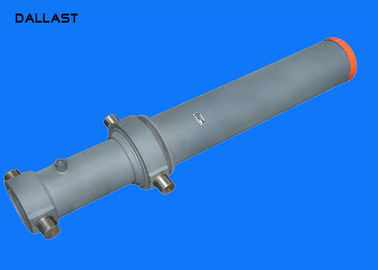

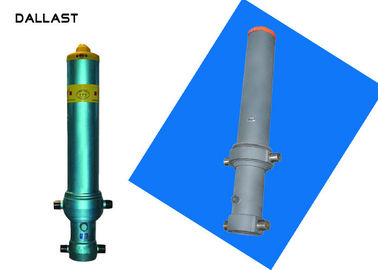

High Pressing Force Single Acting Hydraulic Cylinder With CE Certification

High Pressing Force Single Acting Hydraulic Cylinder With CE Certification

    • High Pressing Force Single Acting Hydraulic Cylinder With CE Certification
    • High Pressing Force Single Acting Hydraulic Cylinder With CE Certification
    • High Pressing Force Single Acting Hydraulic Cylinder With CE Certification
  • High Pressing Force Single Acting Hydraulic Cylinder With CE Certification

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Coatings: Chrome Plated Delivery Time: 10-20 Days
    MOQ: 1 Set Work Pressure: 16Mpa, 20Mpa, 31Mpa
    Working Medium: Hydraulic Oil Certification: ISO9001:2008
    Place Of Origin: Shandong China Length: 1000-8000mm
    High Light:

    single acting telescopic hydraulic cylinders

    ,

    hydraulic oil cylinder

    High Pressing Force Hydraulic Cylinder for Car Truck with CE, Single Acting Cylinder



    1. Unique Construction: Hydraulic Cylinder

    DALLAST Hydraulic cylinder is very famous in domestic, especially for our truck hydraulic cylinders. Over the years, we have cooperated with many Chinese major truck modification corporation.

    All the Hydraulic Cylinders that our balers used are manufactured by our factory, we have more than 300 sets advanced equipments to produce and monitor our cylinders. Hydraulic cylinder is another main product that we manufactured ourselves.

    Over the years, we have cooperated with many Chinese major truck modification corporation, all of our partners are highly satisfied with our service and products.

    In our cylinder workshop, there are more than 300 sets advanced production equipments including: CNC lathes, vertical machining centers, deep hole boring machines, plano millers, floor-type boring and milling machines, NC flame cutting machines, etc, and 60 sets of various types of testing instruments.



    2. Mission of DALLAST

    DALLAST will bring the highest quality with lower price products to all over the world customers!
    DALLAST will bring all love and responsibilities to all over the world customers!



    Specification

    MODEL NO. Stroke The largest sleeve OD Mounting distance
    FC-3-110-3205 3205 168 343
    FC-3-110-3460 3460 168 343
    FC-3-129-2980 2980 218 343
    FC-3-129-3205 3205 218 343
    FC-3-129-3460 3460 218 343
    FC-3-129-3880 3880 218 343
    FC-3-129-4270 4270 218 343
    FC-4-129-4280 4280 218 343
    FC-4-129-4280 4280 218 343
    FC-4-129-5180 5180 218 343
    FC-4-149-3680 3680 218 343
    FC-4-149-3980 3980 218 343
    FC-4-149-4280 4280 244 343
    FC-4-149-4620 4620 244 343
    FC-4-149-4940 4940 244 343
    FC-4-149-5180 5180 244 343
    FC-4-149-5460 5460 244 343
    FC-4-169-4280 4280 244 343
    FC-4-169-4620 4620 244 343
    FC-4-169-4940 4940 244 343
    FC-4-169-5180 5180 244 343
    FC-4-169-5460 5460 244 343
    FC-5-169-5355 5355 244 343
    FC-5-169-5780 5780 244 343
    FC-5-169-6180 6180 244 343
    FC-5-169-6830 6830 244 343
    FC-5-169-7130 7130 244 343
    FC-5-169-7630 7630 244 343
    FC-5-169-8130 8130 244 343
    FC-5-169-9030 9030 244 343
    FC-5-169-9530 9530 244 343
    FC-4-191-5460 5460 274 343
    FC-5-191-5780 5780 274 343
    FC-5-191-6180 6180 274 343
    FC-5-191-7130 7130 274 343
    FC-5-191-7630 7630 274 343
    FC-5-191-8130 8130 274 343
    FC-5-191-9030 9030 274 343
    FC-5-191-9530 9530 274 343
    FC-5-214-7610 7610 274 343
    FC-5-214-9030 9030 274 343



    Processing and inspection:



    1. Cylinder Tube

    According to the work pressure, work temperature, work situation and other special requirements, different cylinder tube will be chosen.

    1.1 Cylinder Tube: cold drawn precision seamless steel tube, hot rolled seamless steel tube, forged tube.

    1.2 Tube Material: SAE1020(20#), SAE1045(45#) ,16Mn(Q345B),27SiMn, etc.

    1.3 Surface Roughness: R0.16-0.32μm

    1.4 Inside Chromatin necessary, inside tube will be chromatid.



    2. Piston Rod

    2.1 Rod Material:35#, SAE1045(45#),35CrMo,42CrMo4, etc.

    2.1 Technical Treatment: Quenched and tempered.1.5-1mm, or 1.03mm per millimeter.



    3. Seal Kits

    According to customers' requirements and work condition, we will choose suitable seal kits, including: Hallite, NOK, SKF, Parker, Merker, Trelleborg, China made, Taiwan made. We will supply your suitable seal kits to ensure hydraulic cylinders a long lifetime, easy maintenance and simple repairing.



    4. Inspection and Testing

    4.1 We have professional quality control department, every step from raw material to finished product is in the same factory, each procedure will be tested by professional inspector.

    4.2 Before hydraulic cylinder is assembled, every spare parts would be measured and cleaned .After hydraulic cylinder is assembled , pressure test would be carried out one by one. We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test. Each hydraulic cylinder must be tested without any leakage.



    High Pressing Force Single Acting Hydraulic Cylinder With CE Certification
