Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked

Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked

    • Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked
    • Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked
    • Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked
  • Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Chrome Plating Thickness: 10-25 μm Supply Condition: Ground And Chrome Plated
    Maximum Stroke: 10000mm Shaft Diameter: 20-400mm
    Trademark: DALLAST Rod Seal: Polyurethane U-Cup
    Place Of Origin: Shandong China Payment Terms: T/T, L/C, D/P, D/A And So On

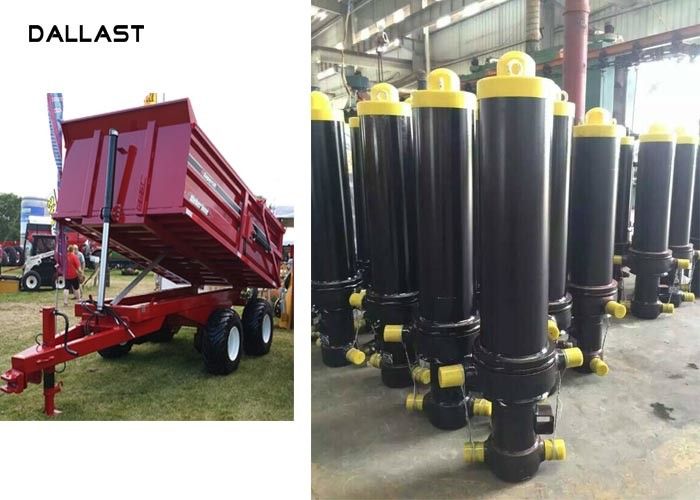

    Single Acting Welded Dump Truck Tipper Trailer Using Hydraulic Cylinder

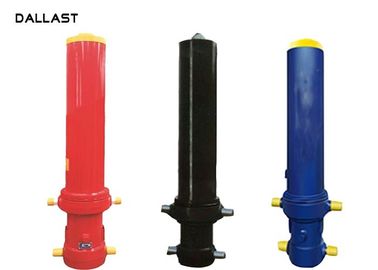

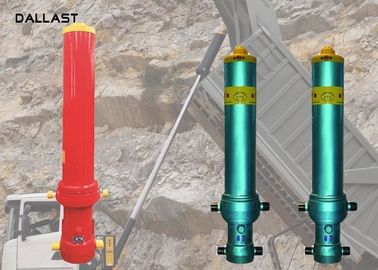

    Single-acting multistage telescopic sleeve hydraulic cylinder, large stroke,can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.



    A telescopic cylinder is comprised of several cylinders built inside one another. It is is often constructed in a single-acting form, but is also to be encountered in a double-acting version. A combination of single-acting stages with a double-acting stage is also possible. The advantage of telescopic cylinders is that they can generate large strokes with relatively small installation lengths.



    We can make hydraulic cylinder design,Please provide us the following technical parameters:
    Bore diameter;
    Rod diameter;
    Stroke;
    Working pressure;
    Front and back end mount type;
    Using frequency;
    Work Environment;



    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.
    We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.



    Type:



    MODEL NO. Stage First Stage Diameter Stroke Largest Sleeve OD Closed length Mounting distance
    FC-3-107-2855 3 107 2855 152 1268 311
    FC-3-107-3115 3 107 3115 152 1368 311
    FC-3-107-3265 3 107 3265 152 1418 311
    FC-3-107-3415 3 107 3415 152 1468 311
    FC-3-107-3715 3 107 3715 152 1568 311
    FC-3-126-3230 3 126 3230 219 1403 343
    FC-3-126-3680 3 126 3680 219 1553 343
    FC-3-126-3830 3 126 3830 219 1603 343
    FC-3-126-4400 3 126 4400 219 1803 343
    FC-4-126-4145 4 126 4145 219 1357 343
    FC-4-126-4345 4 126 4345 219 1407 343
    FC-4-126-4545 4 126 4545 219 1457 343
    FC-4-126-4745 4 126 4745 219 1507 343
    FC-4-126-4945 4 126 4945 219 1557 343
    FC-4-126-5145 4 126 5145 219 1607 343
    FC-3-145-3230 3 145 3230 219 1403 343
    FC-3-145-3680 3 145 3680 219 1553 343
    FC-3-145-3830 3 145 3830 219 1603 343
    FC-4-145-4110 4 145 4110 219 1357 343
    FC-4-145-4310 4 145 4310 219 1407 343
    FC-4-145-4510 4 145 4510 219 1457 343
    FC-4-145-4710 4 145 4710 219 1507 343
    FC-4-145-4910 4 145 4910 219 1557 343
    FC-4-145-5110 4 145 5110 219 1607 343
    FC-4-145-5310 4 145 5310 219 1657 343
    FC-4-145-5865 4 145 5865 219 1807 343
    FC-5-145-4310 5 145 4310 219 1161 343
    FC-4-165-4110 4 165 4110 244 1347 343
    FC-4-165-4510 4 165 4510 244 1447 343
    FC-4-165-4710 4 165 4710 244 1497 343
    FC-4-165-4910 4 165 4910 244 1547 343
    FC-4-165-5110 4 165 5110 244 1597 343
    FC-4-165-5310 4 165 5310 244 1647 343
    FC-4-165-5865 4 165 5865 244 1797 343
    FC-5-165-5135 5 165 5135 244 1351 343
    FC-5-165-5385 5 165 5385 244 1401 343
    FC-5-165-5635 5 165 5635 244 1451 343
    FC-5-165-6135 5 165 6135 244 1551 343
    FC-5-165-6385 5 165 6385 244 1601 343
    FC-5-165-6825 5 165 6825 244 1701 343
    FC-5-165-7075 5 165 7075 244 1751 343
    FC-5-165-7325 5 165 7325 244 1801 343
    FC-5-165-7575 5 165 7575 244 1851 343
    FC-5-165-7825 5 165 7825 244 1901 343
    FC-5-165-8185 5 165 8185 244 2001 343
    FC-5-165-8435 5 165 8435 244 2051 343
    FC-5-187-5135 5 187 5135 244 1351 343
    FC-5-187-5385 5 187 5385 244 1401 343
    FC-5-187-5635 5 187 5635 244 1451 343
    FC-5-187-6135 5 187 6135 244 1551 343
    FC-5-187-6385 5 187 6385 244 1601 343
    FC-5-187-6825 5 187 6825 244 1701 343
    FC-5-187-7075 5 187 7075 244 1751 343
    FC-5-187-7325 5 187 7325 244 1801 343
    FC-5-187-7825 5 187 7825 244 1901 343
    FC-5-187-8185 5 187 8185 244 2001 343
    FC-5-187-8435 5 187 8435 244 2051 343
    FC-5-187-8935 5 187 8935 244 2151 343
    FC-5-187-9185 5 187 9185 244 2201 343
    FC-6-187-8790 6 187 8790 244 1805 843
    FC-6-187-9085 6 187 9085 244 1855 343
    FC-5-210-6135 5 210 6135 273 1551 343
    FC-5-210-7075 5 210 7075 273 1751 343
    FC-5-210-7325 5 210 7325 273 1801 343
    FC-5-210-7825 5 210 7825 273 1901 343
    FC-5-210-9185 5 210 9185 273 2201 343



    Welded Dump Truck Tipper Trailer Single Acting Telescopic Hydraulic Cylinders CE Marked
