| Place of Origin: | Shandong China |
| Brand Name: | Dallast |
| Certification: | GS CE ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Type: | Hydraulic Single Cylinder | Factory Visit: | Available |
|---|---|---|---|
| Heat Treatment: | Quenching | Shaft Diameter: | 20-400mm |
| Seals: | Hallite, NOK | Rod Seal: | Polyurethane U-Cup |
| Place Of Origin: | Shandong China | Structure: | General Cylinder |
| High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |
||
| HS Code | 8412210000 |

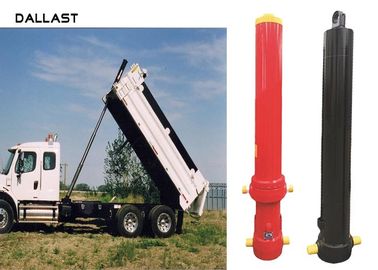

| Application | Dump truck, Tipper, Trailer |
| Material | Alloy steel, Carbon steel, 27SiMn |
| Seal | Hallite, SKF, NOK, Guarnitec, Parker |
| Coating | Chrome plated |
| Temperature | -30ºC~100ºC |
| Chrome Thickness | 25-30um |
| Honed tube | 20-2000mm, Heat treatment, honing, rolling |
| Piston rod | 10-1500mm, tempering, plated nickel, Chrome or ceramic |
| Hydraulic pressure | 16MPa-32MPa |
| Stroke | 2000mm-11000mm |
| Color | Red black blue gray, can custom according request |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001-2009, TS16949 |
| Package | Shrink film, pallet, plywood case and carton |
| Warranty | One year after shipping arrival |
| Payment terms | T/T, L/C, West Union, Paypal |
| Delivery time | 20- 30 days after down payment |
|
We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters: Bore diameter; Rod diameter; Stroke; Working pressure; Front and back end mount type; Using frequency; Work Environment; Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample |
|

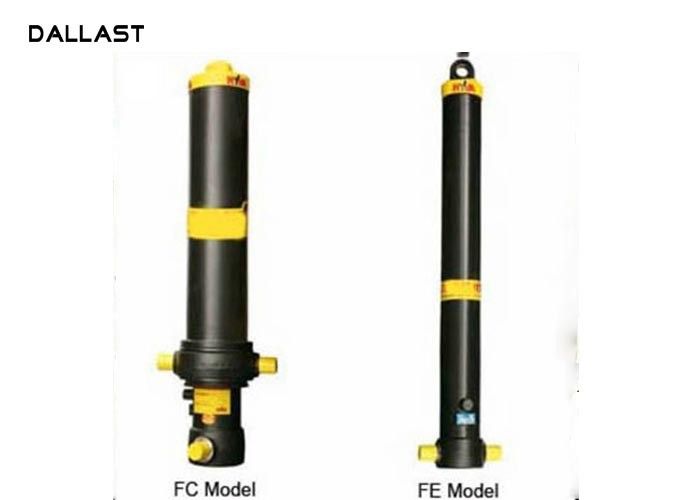

| FC type | ||||
| MODEL NO. | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
| FC-3-110-3205 | 110 | 3205 | 168 | 343 |
| FC-3-110-3460 | 110 | 3460 | 168 | 343 |
| FC-3-129-2980 | 129 | 2980 | 218 | 343 |
| FC-3-129-3205 | 129 | 3205 | 218 | 343 |
| FC-3-129-3460 | 129 | 3460 | 218 | 343 |
| FC-3-129-3880 | 129 | 3880 | 218 | 343 |
| FC-3-129-4270 | 129 | 4270 | 218 | 343 |
| FC-4-129-4280 | 129 | 4280 | 218 | 343 |
| FC-4-129-4280 | 129 | 4280 | 218 | 343 |
| FC-4-129-5180 | 129 | 5180 | 218 | 343 |
| FC-4-149-3680 | 149 | 3680 | 218 | 343 |
| FC-4-149-3980 | 149 | 3980 | 218 | 343 |
| FC-4-149-4280 | 149 | 4280 | 244 | 343 |
| FC-4-149-4620 | 149 | 4620 | 244 | 343 |
| FC-4-149-4940 | 149 | 4940 | 244 | 343 |
| FC-4-149-5180 | 149 | 5180 | 244 | 343 |
| FC-4-149-5460 | 149 | 5460 | 244 | 343 |
| FC-4-169-4280 | 169 | 4280 | 244 | 343 |
| FC-4-169-4620 | 169 | 4620 | 244 | 343 |
| FC-4-169-4940 | 169 | 4940 | 244 | 343 |
| FC-4-169-5180 | 169 | 5180 | 244 | 343 |
| FC-4-169-5460 | 169 | 5460 | 244 | 343 |
| FC-5-169-5355 | 169 | 5355 | 244 | 343 |
| FC-5-169-5780 | 169 | 5780 | 244 | 343 |
| FC-5-169-6180 | 169 | 6180 | 244 | 343 |
| FC-5-169-6830 | 169 | 6830 | 244 | 343 |
| FC-5-169-7130 | 169 | 7130 | 244 | 343 |
| FC-5-169-7630 | 169 | 7630 | 244 | 343 |
| FC-5-169-8130 | 169 | 8130 | 244 | 343 |
| FC-5-169-9030 | 169 | 9030 | 244 | 343 |
| FC-5-169-9530 | 169 | 9530 | 244 | 343 |
| FE type | ||||
| Model | Stage | Largest Stage Diameter mm | Stroke mm |
Mounting distance mm |
| FE-3-110-3205 | 3 | 110 | 3205 | 1449 |
| FE-3-110-3460 | 3 | 110 | 3460 | 1609 |
| FE-3-129-3460 | 3 | 129 | 3460 | 1449 |
| FE-3-129-3880 | 3 | 129 | 3880 | 1609 |
| FE-3-149-2900 | 3 | 149 | 2900 | 1320 |
| FE-3-149-3200 | 3 | 149 | 3200 | 1420 |
| FE-3-149-3500 | 3 | 149 | 3500 | 1520 |
| FE-3-149-3880 | 3 | 149 | 3880 | 1644 |
| FE-4-149-4280 | 4 | 149 | 4280 | 1450 |
| FE-4-149-4940 | 4 | 149 | 4940 | 1529 |
| FE-4-149-4620 | 4 | 149 | 4620 | 1484 |
| FE-4-169-4280 | 4 | 169 | 4280 | 1394 |
| FE-4-169-4450 | 4 | 169 | 4450 | 1437 |
| FE-4-169-4620 | 4 | 169 | 4620 | 1479 |
| FE-4-169-4940 | 4 | 169 | 4940 | 1529 |
| FE-4-169-5000 | 4 | 169 | 5000 | 1574 |
| FE-4-169-5180 | 4 | 169 | 5180 | 1604 |
| FE-5-169-5355 | 5 | 169 | 5355 | 1394 |
| FE-5-169-5780 | 5 | 169 | 5780 | 1559 |
| FE-5-169-6180 | 5 | 169 | 6180 | 1527 |
| FE-5-169-6480 | 5 | 169 | 6480 | 1604 |
| FE-5-169-6830 | 5 | 169 | 6830 | 1674 |
| FE-5-169-7130 | 5 | 169 | 7130 | 1769 |
| FE-5-191-6180 | 5 | 191 | 6180 | 1527 |
| FE-5-191-9030 | 5 | 191 | 9030 | 2177 |
| FE-6-191-7420 | 6 | 191 | 7420 | 1677 |
| FE-5-214-6830 | 5 | 214 | 6830 | 1662 |
| FE-5-214-7130 | 5 | 214 | 7130 | 1722 |
