Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Model Number: | 3/4/5/6 Stage | Factory Visit: | Available |
---|---|---|---|
Heat Treatment: | Quenching | Shaft Diameter: | 20-400mm |
Material: | Hard Chrome Piston Rod | Working Temperature: | -30℃-80℃ |
Place Of Origin: | Shandong China | Painting: | Anti Rust Painting |
High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |

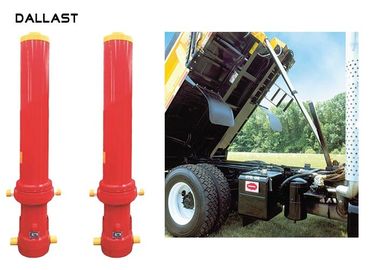

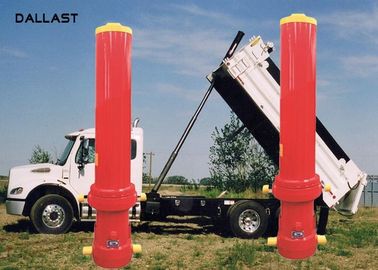

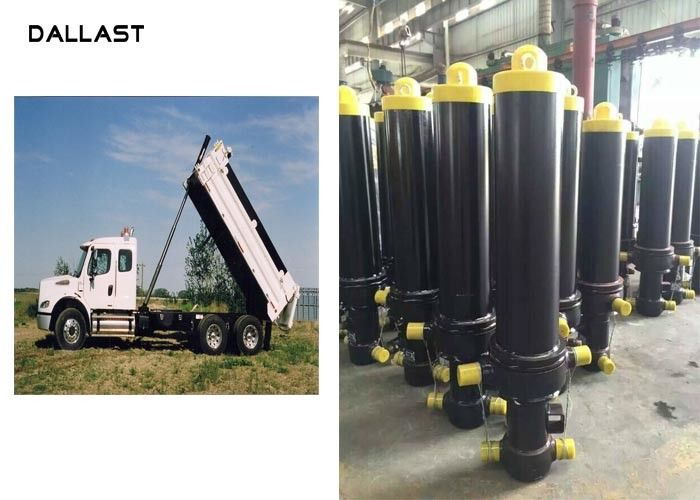

Multistage Single-Acting Hydraulic Cylinder for Heavy Dump Truck
About us
We are a manufacturer of Multi Stage Hydraulic cylinder with well-equipped testing facilitie and strong technical force. With a wide range, good quality,reasonable prices and stylish designs, our products are extensively used in cylinder and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Hydraulic cylinder advantages
1.Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion
2.Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.
Specification:
MODEL NO. | First Stage Diameter | Stroke | Largest Sleeve OD | Closed length | Mounting distance |
FC-3-107-2855 | 107 | 2855 | 152 | 1268 | 311 |
FC-3-107-3115 | 107 | 3115 | 152 | 1368 | 311 |
FC-3-107-3265 | 107 | 3265 | 152 | 1418 | 311 |
FC-3-107-3415 | 107 | 3415 | 152 | 1468 | 311 |
FC-3-107-3715 | 107 | 3715 | 152 | 1568 | 311 |
FC-3-126-3230 | 126 | 3230 | 219 | 1403 | 343 |
FC-3-126-3680 | 126 | 3680 | 219 | 1553 | 343 |
FC-3-126-3830 | 126 | 3830 | 219 | 1603 | 343 |
FC-3-126-4400 | 126 | 4400 | 219 | 1803 | 343 |
FC-4-126-4145 | 126 | 4145 | 219 | 1357 | 343 |
FC-4-126-4345 | 126 | 4345 | 219 | 1407 | 343 |
FC-4-126-4545 | 126 | 4545 | 219 | 1457 | 343 |
FC-4-126-4745 | 126 | 4745 | 219 | 1507 | 343 |
FC-4-126-4945 | 126 | 4945 | 219 | 1557 | 343 |
FC-4-126-5145 | 126 | 5145 | 219 | 1607 | 343 |
FC-3-145-3230 | 145 | 3230 | 219 | 1403 | 343 |
FC-3-145-3680 | 145 | 3680 | 219 | 1553 | 343 |
FC-3-145-3830 | 145 | 3830 | 219 | 1603 | 343 |
FC-4-145-4110 | 145 | 4110 | 219 | 1357 | 343 |
FC-4-145-4310 | 145 | 4310 | 219 | 1407 | 343 |
FC-4-145-4510 | 145 | 4510 | 219 | 1457 | 343 |
FC-4-145-4710 | 145 | 4710 | 219 | 1507 | 343 |
FC-4-145-4910 | 145 | 4910 | 219 | 1557 | 343 |
FC-4-145-5110 | 145 | 5110 | 219 | 1607 | 343 |
FC-4-145-5310 | 145 | 5310 | 219 | 1657 | 343 |
FC-4-145-5865 | 145 | 5865 | 219 | 1807 | 343 |
FC-5-145-4310 | 145 | 4310 | 219 | 1161 | 343 |
FC-4-165-4110 | 165 | 4110 | 244 | 1347 | 343 |
FC-4-165-4510 | 165 | 4510 | 244 | 1447 | 343 |
FC-4-165-4710 | 165 | 4710 | 244 | 1497 | 343 |
FC-4-165-4910 | 165 | 4910 | 244 | 1547 | 343 |
FC-4-165-5110 | 165 | 5110 | 244 | 1597 | 343 |
FC-4-165-5310 | 165 | 5310 | 244 | 1647 | 343 |
FC-4-165-5865 | 165 | 5865 | 244 | 1797 | 343 |
FC-5-165-5135 | 165 | 5135 | 244 | 1351 | 343 |
FC-5-165-5385 | 165 | 5385 | 244 | 1401 | 343 |
FC-5-165-5635 | 165 | 5635 | 244 | 1451 | 343 |
FC-5-165-6135 | 165 | 6135 | 244 | 1551 | 343 |
FC-5-165-6385 | 165 | 6385 | 244 | 1601 | 343 |
FC-5-165-6825 | 165 | 6825 | 244 | 1701 | 343 |
FC-5-165-7075 | 165 | 7075 | 244 | 1751 | 343 |
FC-5-165-7325 | 165 | 7325 | 244 | 1801 | 343 |
FC-5-165-7575 | 165 | 7575 | 244 | 1851 | 343 |
FC-5-165-7825 | 165 | 7825 | 244 | 1901 | 343 |
FC-5-165-8185 | 165 | 8185 | 244 | 2001 | 343 |
FC-5-165-8435 | 165 | 8435 | 244 | 2051 | 343 |
FC-5-187-5135 | 187 | 5135 | 244 | 1351 | 343 |
FC-5-187-5385 | 187 | 5385 | 244 | 1401 | 343 |
FC-5-187-5635 | 187 | 5635 | 244 | 1451 | 343 |
FC-5-187-6135 | 187 | 6135 | 244 | 1551 | 343 |
FC-5-187-6385 | 187 | 6385 | 244 | 1601 | 343 |
FC-5-187-6825 | 187 | 6825 | 244 | 1701 | 343 |
FC-5-187-7075 | 187 | 7075 | 244 | 1751 | 343 |
FC-5-187-7325 | 187 | 7325 | 244 | 1801 | 343 |
FC-5-187-7825 | 187 | 7825 | 244 | 1901 | 343 |
FC-5-187-8185 | 187 | 8185 | 244 | 2001 | 343 |
FC-5-187-8435 | 187 | 8435 | 244 | 2051 | 343 |
FC-5-187-8935 | 187 | 8935 | 244 | 2151 | 343 |
FC-5-187-9185 | 187 | 9185 | 244 | 2201 | 343 |
FC-6-187-8790 | 187 | 8790 | 244 | 1805 | 843 |
FC-6-187-9085 | 187 | 9085 | 244 | 1855 | 343 |
FC-7-187-8535 | 187 | 8535 | 244 | 1559 | 343 |
FC-5-210-6135 | 210 | 6135 | 273 | 1551 | 343 |
FC-5-210-6825 | 210 | 6825 | 273 | 1701 | 343 |
FC-5-210-7075 | 210 | 7075 | 273 | 1751 | 343 |
FC-5-210-7325 | 210 | 7325 | 273 | 1801 | 343 |
FC-5-210-7825 | 210 | 7825 | 273 | 1901 | 343 |
FC-5-210-9185 | 210 | 9185 | 273 | 2201 | 343 |
FAQ:
1: Have you been exported high pressure hydraulic cylinder to overseas?
We have been exporting agriculture hydraulic cylinder to USA, Canada, Germany, Italy, France, Russia, etc.
2: How long does it take to process orders?
It usually takes 20-30 days to process.
3: Can I order high pressure hydraulic cylinder samples for testing?
Of course, our high pressure hydraulic cylinder quality will satisfy you.
4: high pressure hydraulic cylinder Quality control
All the high pressure hydraulic cylinder is calibrated with real working condition, and tested before shipping as qualified product.
5: How long is your warranty period?
We offer 12 months warranty period after on board.
6: Lifetime service
Any problem happened to our high pressure hydraulic cylinder, we will do our best to help client to solve it
