Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Type: | Hydraulic Single Cylinder | Factory Visit: | Available |
---|---|---|---|
Heat Treatment: | Quenching | Shaft Diameter: | 20-400mm |
Working Medium: | Hydraulic Oil | Service: | After-sale Service |
Place Of Origin: | Shandong China | Painting: | Anti Rust Painting |
High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |

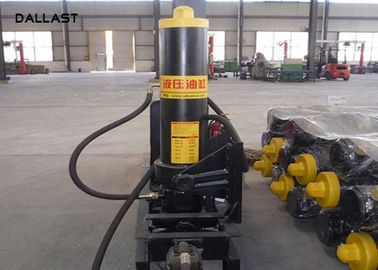

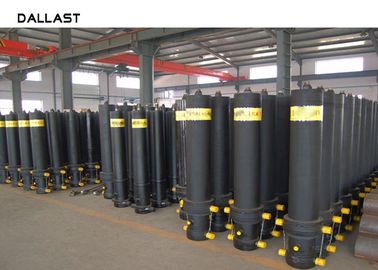

One Way Dump Truck Chromed Front End Single Acting Hydraulic Cylinder
NO. | Stage | Largest Stage Diameter mm | Stroke mm | The largest sleeve OD mm | Mounting distance mm |
FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
FC-3-110-3460 | 3 | 110 | 3460 | 168 | 343 |
FC-3-129-2980 | 3 | 129 | 2980 | 218 | 343 |
FC-3-129-3205 | 3 | 129 | 3205 | 218 | 343 |
FC-3-129-3460 | 3 | 129 | 3460 | 218 | 343 |
FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
FC-4-149-3680 | 4 | 149 | 3680 | 218 | 343 |
FC-4-149-3980 | 4 | 149 | 3980 | 218 | 343 |
FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |

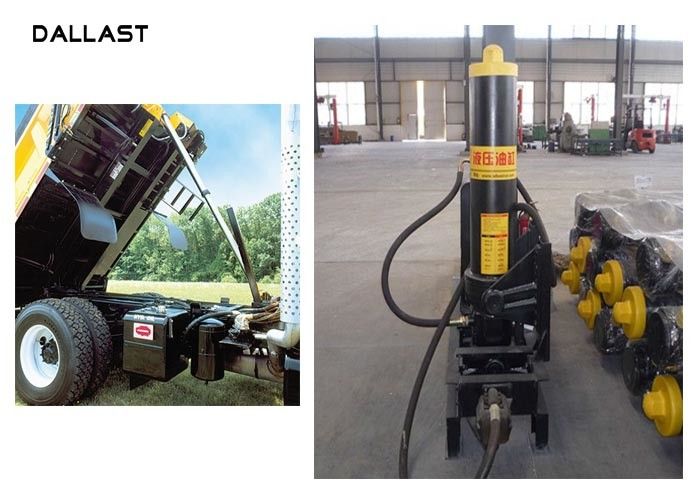

Application | Dump truck, Tipper, Trailer |
Material of cylinder tube | 45 steel, 27SiMn and general seamless steel |
Seal | Hallite, SKF, NOK, Guarnitec, Parker |
Coating | Hard Chrome 0.03-0.05mm |
Temperature | -30ºC ~ 100ºC |
Working pressure | 16mpa-20mpa |
Stroke | 3000mm-9030mm |
Color | red black blue gray |
Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
Plunger | 20#, 45# steel with high frequency quenching |
Certification | ISO9001-2008 and TS16949 |
Package | shrink film, pallet, plywood case and carton |
Warranty | 14 months after shipping arrival |
Payment terms | T/T, L/C, West Union |
Delivery time | 20 days after down payment |
Quality Control:
1. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing
2.Mechanical performance testing equipment can meet the requirements of mechanical testing, all the use of computer digital display, so the accuracy is more accurate so that the mechanical properties of each cylinder barrel has been greatly improved.
3. Every workpiece is machined according to the confirmed drawings and will be inspected casually by QC according to a certain proportion. The traceable record shall be clear and traceable.
4.The qualified parts are assembled into one cylinder and then the pressure test will be done.
Before and after assembly, the basic dimensions and workmanship will be inspected again.
5. An inspection report will come into being before delivery.
Design of Chrome Rod Hydraulic Cylinder
Not only we could manufacture all kinds of hydraulic cylinders according to the drawing from us customers, but also, we could make a design according to customer's requirements. If you
require our engineer to make a design advise us the following specification:
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment, for example, temperature, working frequency
5. Pulling force, and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements. For example, brand, seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromatin film thickness,
Surface hardness etc .
11. Painting and other spare parts requirements.
