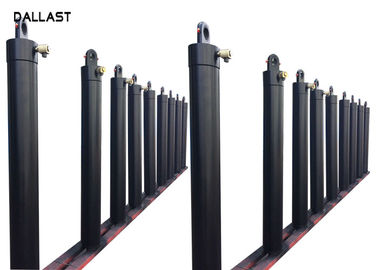

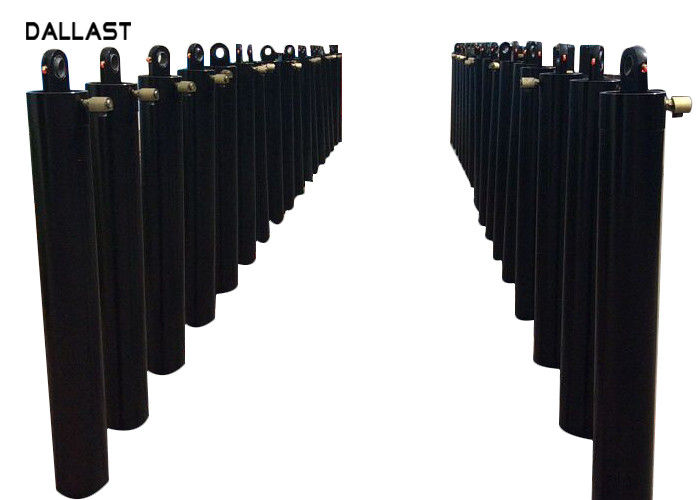

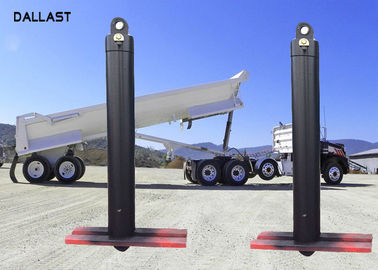

Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied

Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied

    • Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
    • Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
    • Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
  • Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Type: Hydraulic Single Cylinder Material: 27SiMn, 45#, Q345B
    Heat Treatment: Quenching Shaft Diameter: 20-400mm
    Working Medium: Hydraulic Oil Model Number: OEM
    Body Material: According To User Requirements Painting: Anti Rust Painting

    Hydraulic Telescopic Cylinder Hyva Type3-5 Stages Dump Trailer



    Model   Rated Press(Mpa)   Lift capacity(T)   Weight(KG) Oil Port Oil Volume(L)
    FE 3TG-F091*3205-1424   20   11-18   92 1"SAE 16
    FE 3TG-F110*3205-1399   20   21-46   98 1"SAE 24
    FE 3TG-F110*3700-1529   20   20-37   109 1"SAE 28
    FE 3TG-F129*3460-1449   20   33-59   129 1"SAE 37
    FE 3TG-F129*3880-1609   20   33-59   142 1"SAE 42
    FE 3TG-F149*3880-1644   20   47-68   168 1"SAE 56
    FE 4TG-F149*4620-1484   20   35-70   171 1"SAE 59
    FE 4TG-F149*4940-1529   20   34-66   179 1"SAE 63
    FE 4TG-F169*4620-1479   20   51-83   206 1"SAE 78
    FE 4TG-F169*5180-1604   20   50-83   227 1"SAE 88
    FE 5TG-F169*5355-1394   20   35-66   212 1"SAE 80
    FE 5TG-F169*5780-1559   20   34-60   224 1"SAE 87
    FE 5TG-F169*6180-1559   20   34-58   236 1"SAE 93
    FE 5TG-F169*6480-1604   20   34-56   247 1"SAE 97
    FE 5TG-F191*6180-1527   20   49-84   281 1"SAE 122
    FE 5TG-F214*7130-1722   20   60-84   380 1"SAE 188



    Product Advantages:
    1. more than 22 years manufacture experience
    2. Our own factory
    3. ISO9001-2008
    4. Competitive price and high quality
    5. Based on your drawing or requirement
    6. rigid matching control and proper seals
    7. Easy install and easy maintain



    Cylinder Tube O.D. 131mm-242mm
    Operating Pressure 16Mpa-20Mpa
    Numbers of Stage 3, 4, 5, 6
    Largest Moving Stage Diameter 110mm-214mm
    Stroke 2900mm-9030mm
    Closed Length 1320mm-2177mm
    Extended Length 4220mm-11207mm
    Plunger Mount Thickness 42mm-52mm
    Warranty Period 14 months after date of production
    Piston rod head radius 53-62mm
    Oil Port G1/1''SAE
    Cardinal Axi 60mm-65mm
    Port Size 50mm-60mm



    Exclusion clause:

    1.Troubleshooting, diagnostic, removal, or reinstallation labor charges;

    2.Freight charges for either defective parts or new or repaired parts unless prior written approval is obtained from WANTONG;

    3.Claims for loss of time, inconvenience, loss of use, profits or other consequential damages

    4.Conditions from, alteration, accident, misuse, neglect, fire, theft, loss, intentional damage, direct, indirect, consequential, incidental, weather related, or any other type of damage resulting from the use of the product;

    5.Corrosion unless the material is found to be out of specification;

    6.Failure due to contamination introduced to the cylinder;

    7.Paint unless out of specification;



    Quality
    Quality is always top priority.
    DALLASTHydraulic understands the importance of quality, and maintains a focus on producing a high level of quality, cleanliness in installation and 100% testing of all cylinders. As a result, our customers know that DALLAST Hydraulic cylinders are always an excellent choice for applications that require durability and constant use, and where maintenance and repairs must be kept to a minimum.
    All of our production sites are certified according to ISO/TS16949: 2009 covering Sales, Development, Production and Service of hydraulic cylinders.
    Welding technics has been approved by CCS and GL.
    Productions are mostly carried out by CNC machines.



    Multi Stage Telescopic Single Acting Hydraulic Cylinder Front End Dump Truck Applied
