    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Type: Hydraulic Single Cylinder Material: 27SiMn, 45#, Q345B
    Extended Stages: 3-7 Stages Shaft Diameter: 20-400mm
    Working Medium: Hydraulic Oil Model Number: Hydraulic Cylinder
    Body Material: According To User Requirements Maximum Stroke: Requirements

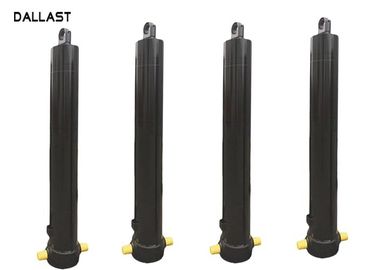

    Hydraulic Telescopic Cylinder Hyva Type3-5 Stages Dump Trailer



    Model Stage Largest Stage Diameter mm Stroke
    mm
    Mounting distance
    mm
    FE-3-110-3205 3 110 3205 1449
    FE-3-110-3460 3 110 3460 1609
    FE-3-129-3460 3 129 3460 1449
    FE-3-129-3880 3 129 3880 1609
    FE-3-149-2900 3 149 2900 1320
    FE-3-149-3200 3 149 3200 1420
    FE-3-149-3500 3 149 3500 1520
    FE-3-149-3880 3 149 3880 1644
    FE-4-149-4280 4 149 4280 1450
    FE-4-149-4940 4 149 4940 1529
    FE-4-149-4620 4 149 4620 1484
    FE-4-169-4280 4 169 4280 1394
    FE-4-169-4450 4 169 4450 1437
    FE-4-169-4620 4 169 4620 1479
    FE-4-169-4940 4 169 4940 1529
    FE-4-169-5000 4 169 5000 1574
    FE-4-169-5180 4 169 5180 1604
    FE-5-169-5355 5 169 5355 1394
    FE-5-169-5780 5 169 5780 1559
    FE-5-169-6180 5 169 6180 1527
    FE-5-169-6480 5 169 6480 1604
    FE-5-169-6830 5 169 6830 1674
    FE-5-169-7130 5 169 7130 1769
    FE-5-191-6180 5 191 6180 1527
    FE-5-191-9030 5 191 9030 2177
    FE-6-191-7420 6 191 7420 1677
    FE-5-214-6830 5 214 6830 1662
    FE-5-214-7130 5 214 7130 1722



    Advantages for hydraulic cylinder:

    1. More secure

    With excellent structure design and the application of new materials, to withstand the harsh conditions of sustained and stable

    work not disarticulating. To ensure the safety of drivers and vehicles, for the user to create the most valuable safety assurance!

    2. Faster unloading speed.

    With excellent structure design, promote unloading speed.

    3. The lifting frequency higher

    Suitable for all-weather shuttle high frequency operation, stable performance, low failure rate,

    increase the number of transport, reduce the parking time!

    4. A stronger ability to adapt to the environment

    Using innovative patented technology and the application of new material seal can adapt

    to -40~110 DEG C temperature range, high temperature and low temperature operation can ensure the excellent performance!

    5. Lighter

    Lower 15%~20% than the other series of products with weight, lift lifting 10%~15%!

    6.Lift more

    Compared with other products with lift lifting 10%~15%. Lift larger, more loading more returns! Lighter weight, lift larger, lighter!





    Exclusion clause:

    1.Troubleshooting, diagnostic, removal, or reinstallation labor charges;

    2.Freight charges for either defective parts or new or repaired parts unless prior written approval is obtained from WANTONG;

    3.Claims for loss of time, inconvenience, loss of use, profits or other consequential damages

    4.Conditions from, alteration, accident, misuse, neglect, fire, theft, loss, intentional damage, direct, indirect, consequential, incidental, weather related, or any other type of damage resulting from the use of the product;

    5.Corrosion unless the material is found to be out of specification;

    6.Failure due to contamination introduced to the cylinder;

    7.Paint unless out of specification;
