Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Place Of Origin: | Shandong, China (Mainland) | Material: | 27SiMn, 45#, Q345B |
---|---|---|---|
Extended Stages: | 3-7 Stages | Service: | Good After Service |
Working Medium: | Hydraulic Oil | Model Number: | Hydraulic Cylinder |
Tube: | 20#,tempered | Standard Or Nonstandard: | Nonstandard |
High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |

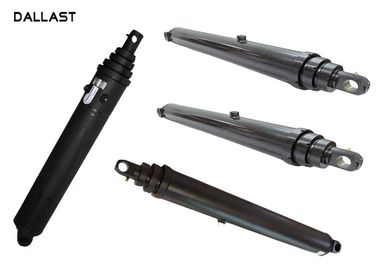

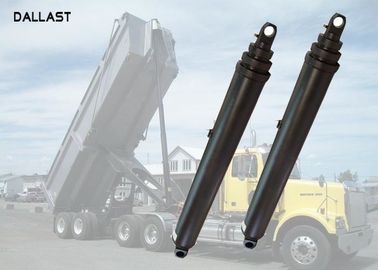

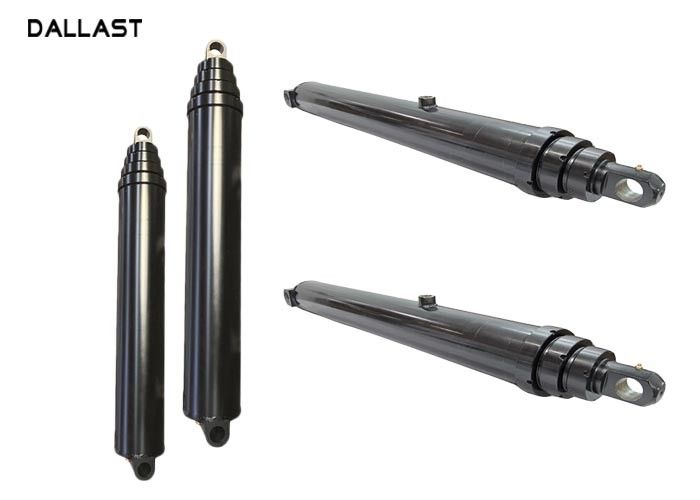

Single Acting Multistage Parker Telescopic Hydraulic Cylinder for Dump Truck/Trailer
Cylinder Details:
1. Mounting type: turning, flange, earring, according to your demand
2. Seal: use parker, NOK and other famous seal parts to ensure the quality
3. Piston rod: 20#, 45# steel with high frequency quenching
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
5. Bore size: 20-500mm (7/8-20"), stroke can reach to 3000mm
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval
Model No. | First Stage Diameter | Stroke | Closed Length | Open Length |
3TG F5*72 | 127 | 1829mm | 945mm | 2773mm |
3TG F5*84 | 127 | 2134mm | 1046mm | 3180mm |
3TG F5*107 | 127 | 2732mm | 1229mm | 3961mm |
3TG F5*126 | 127 | 3216mm | 1386mm | 4602mm |
3TG F6*86 | 152.4 | 2203mm | 1038mm | 3241mm |
3TG F6*104 | 152.4 | 2640mm | 1194mm | 3834mm |
3TG F6*107 | 152.4 | 2732mm | 1289mm | 3961mm |
3TG F6*111 | 152.4 | 2819mm | 1268mm | 4087mm |
3TG F6*120 | 152.4 | 3048mm | 1359mm | 4407mm |
3TG F6*123 | 152.4 | 3124mm | 1395mm | 4519mm |
3TG F6*126 | 152.4 | 3208mm | 1386mm | 4594mm |
3TG F6*140 | 152.4 | 3562mm | 1519mm | 5081mm |
4TG F6*135 | 152.4 | 3429mm | 1199mm | 4628mm |
4TG F6*156 | 152.4 | 3962mm | 1362mm | 5324mm |
3TG F7*110 | 177.8 | 2810mm | 1271mm | 4081mm |
3TG F7*120 | 177.8 | 3048mm | 1349mm | 4397mm |
3TG F7*124 | 177.8 | 3172mm | 1392mm | 4564mm |
3TG F7*129 | 177.8 | 3277mm | 1435mm | 4712mm |
3TG F7*140 | 177.8 | 3567mm | 1524mm | 5091mm |
3TG F7*150 | 177.8 | 3810mm | 1613mm | 5423mm |
4TG F7*120 | 177.8 | 3048mm | 1120mm | 4168mm |
4TG F7*135 | 177.8 | 3429mm | 1230mm | 4659mm |
4TG F7*140 | 177.8 | 3556mm | 1263mm | 4819mm |
4TG F7*156 | 177.8 | 3962mm | 1365mm | 5327mm |
4TG F7*161 | 177.8 | 4108mm | 1405mm | 5513mm |
4TG F7*167 | 177.8 | 4242mm | 1432mm | 5674mm |
4TG F7*180 | 177.8 | 4572mm | 1552mm | 6124mm |
4TG F8*148 | 203.2 | 3753mm | 1308mm | 5061mm |
4TG F8*156 | 203.2 | 3962mm | 1365mm | 5327mm |
4TG F8*161 | 203.2 | 4064mm | 1416mm | 5480mm |
4TG F8*170 | 203.2 | 4318mm | 1454mm | 5481mm |
4TG F8*180 | 203.2 | 4572mm | 1518mm | 6090mm |
5TG F8*170 | 203.2 | 4318mm | 1267mm | 5585mm |
5TG F8*190 | 203.2 | 4800mm | 1387mm | 6188mm |
5TG F8*220 | 203.2 | 5588mm | 1524mm | 7112mm |
5TG F8*235 | 203.2 | 5944mm | 1641mm | 7585mm |
5TG F8*250 | 203.2 | 6325mm | 1743mm | 8068mm |
5TG F8*265 | 203.2 | 6731mm | 1803mm | 8534mm |
5TG F8*285 | 203.2 | 7239mm | 1994mm | 9233mm |
5TG F9*220 | 228.6 | 5537mm | 1586mm | 7123mm |
5TG F9*235 | 228.6 | 5918mm | 1662mm | 7580mm |
5TG F9*250 | 228.6 | 6299mm | 1738mm | 8037mm |
5TG F9*265 | 228.6 | 6731mm | 1844mm | 8575mm |
5TG F9*280 | 228.6 | 7112mm | 1997mm | 9109mm |
5TG F9*300 | 228.6 | 7620mm | 2007mm | 9627mm |
5TG F9*320 | 228.6 | 8128mm | 2108mm | 9628mm |
5TG F9*340 | 228.6 | 8636mm | 2210mm | 10846mm |
Company Profile:
Dallast Technology Co., Ltd is a hydraulic cylinder, hydraulic support rod and hydraulic system research and development design, the main products supporting construction machinery, agricultural machinery, bridges, dump trucks, excavators and other industry facilities, the company mainly to manufacturing, sales and service in one Professional factory. Company products are exported to Europe and the United States at home and abroad. Companies in accordance with the ISO quality assurance system, the production process in every detail of the attention, adhere to the "details determine the success or failure, improve the quality of the brand" business philosophy, do a good job of quality management. In the introduction of high-quality CNC machining equipment at the same time to Taiwan's technology as the basis for the production, improve product quality.
