| Place of Origin: | Shandong China |
| Brand Name: | Dallast |
| Certification: | GS CE ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Place Of Origin: | Shandong, China (Mainland) | Max Pressure: | 210 Bar |
|---|---|---|---|
| Model Number: | 3TG/4TG/5TG | Service: | Good After Service |
| Working Medium: | Hydraulic Oil | Type: | Telescopic Type |
| Package: | Pallet Or As Customer's Requirement | Standard Or Nonstandard: | Nonstandard |
| High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |
||

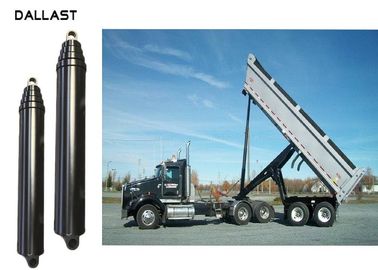

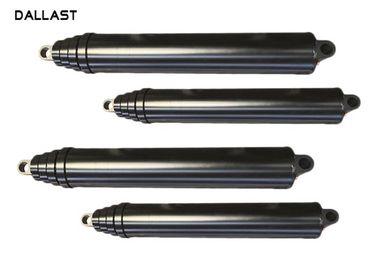

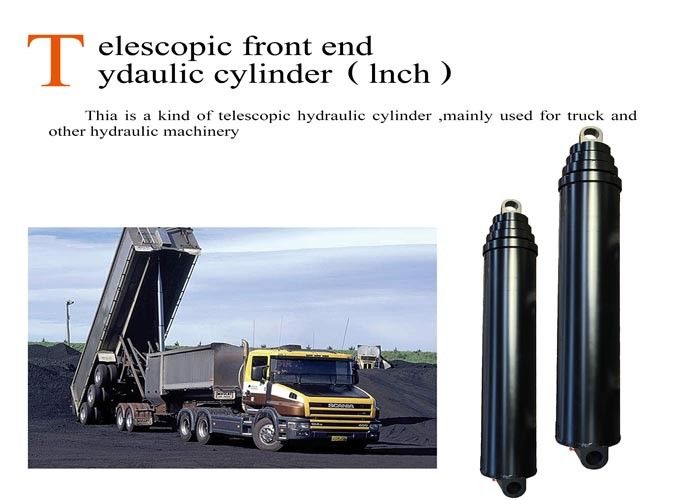

Custom Hyva Front End Loader Hydraulic Cylinder for Tipper Trailer
| Parker | Model No. | First Stage Diameter | Stroke(A) | Closed Length(B) | Open Length(C) |
| S53DC-66-72 | 3TG F5*72 | 5" 127 | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| S53DC-66-84 | 3TG F5*84 | 5'' 127 | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| S53DC-65-107 | 3TG F5*107 | 5" 127 | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| S53DC-65-126 | 3TG F5*126 | 5" 127 | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| S63DC-101-86 | 3TG F6*86 | 6" 152.4 | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| S63DC-101-104 | 3TG F6*104 | 6" 152.4 | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| S63DC-101-107 | 3TG F6*107 | 6" 152.4 | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| S63DC-97-111 | 3TG F6*111 | 6'' 152.4 | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| S63DC-102-120 | 3TG F6*120 | 6'' 152.4 | 120" (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| S63DC-97-123 | 3TG F6*123 | 6'' 152.4 | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| S63DC-102-126 | 3TG F6*126 | 6'' 152.4 | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| S63DC-101-140 | 3TG F6*140 | 6'' 152.4 | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| S64DC-12-135 | 4TG F6*135 | 6'' 152.4 | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| S64DC-14-156 | 4TG F6*156 | 6'' 152.4 | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| S73DC-66-110 | 3TG F7*110 | 7" 177.8 | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| S73DC-66-120 | 3TG F7*120 | 7" 177.8 | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| S73DC-66-124 | 3TG F7*124 | 7" 177.8 | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| S73DC-66-129 | 3TG F7*129 | 7" 177.8 | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| S73DC-66-140 | 3TG F7*140 | 7" 177.8 | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| S73DC-66-150 | 3TG F7*150 | 7" 177.8 | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
| S74DC-74-120 | 4TG F7*120 | 7" 177.8 | 120" (3048mm) | 44.12" (1120mm) | 164.12" (4168mm) |
| S74DC-74-135 | 4TG F7*135 | 7" 177.8 | 135" (3429mm) | 48.43" (1230mm) | 183.44" (4659mm) |
| S74DC-74-140 | 4TG F7*140 | 7" 177.8 | 140" (3556mm) | 49.75" (1263mm) | 189.75" (4819mm) |
| S74DC-74-156 | 4TG F7*156 | 7" 177.8 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S74DC-74-161 | 4TG F7*161 | 7" 177.8 | 161.75" (4108mm) | 55.31" (1405) | 217.06" (5513mm) |
| S74DC-74-167 | 4TG F7*167 | 7" 177.8 | 167" (4242mm) | 56.38" (1432mm) | 223.38" (5674mm) |
| S74DC-74-180 | 4TG F7*180 | 7" 177.8 | 180" (4572mm) | 61.12" (1552mm) | 241.12" (6124mm) |
| S84DC-66-148 | 4TG F8*148 | 8" 203.2 | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
| S84DC-66-156 | 4TG F8*156 | 8" 203.2 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S84DC-66-161 | 4TG F8*161 | 8" 203.2 | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
| S84DC-66-170 | 4TG F8*170 | 8" 203.2 | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
| S84DC-66-180 | 4TG F8*180 | 8" 203.2 | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
| S85DC-66-170 | 5TG F8*170 | 8" 203.2 | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
| S85DC-66-190 | 5TG F8*190 | 8" 203.2 | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
| S85DC-66-220 | 5TG F8*220 | 8" 203.2 | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
| S85DC-66-235 | 5TG F8*235 | 8" 203.2 | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
| S85DC-66-250 | 5TG F8*250 | 8" 203.2 | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
| S85DC-66-265 | 5TG F8*265 | 8" 203.2 | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
| S85DC-66-285 | 5TG F8*285 | 8" 203.2 | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
| S95DC-52-220 | 5TG F9*220 | 9" 228.6 | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
| S95DC-52-235 | 5TG F9*235 | 9" 228.6 | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
| S95DC-52-250 | 5TG F9*250 | 9" 228.6 | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
| S95DC-52-265 | 5TG F9*265 | 9" 228.6 | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
| S95DC-52-280 | 5TG F9*280 | 9" 228.6 | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
| S95DC-52-300 | 5TG F9*300 | 9" 228.6 | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
| S95DC-52-320 | 5TG F9*320 | 9" 228.6 | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
| S95DC-52-340 | 5TG F9*340 | 9" 228.6 | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |
Product Overviews
We can design and produce most kind hydraulic cylinder. Single acting, double acting hydraulic cylinder. Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.
1. Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane ,pump truck, garbage truck, garbage compactor and boat used hydraulic cylinder etc.
2. Metallurgical Machinery cylinders for: decelerator, tile press etc.
3. Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.
4. Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeded etc.
Our Services
Every product is only as good as the service which supports it.
At dallast Machinery, customer service means delivering high quality products backed with lifetime support. Our team of experts is on hand to respond promptly to your feedback and attend to your needs. Whether it is after-sales support or working with you to build a prototype or helping you to improve your product, we are here for you.
With dallast Machinery you can benefit from Prototype development for your special designs.
Contact Person: Mr. Aaron
Tel: +8613202289099
Fax: 86-755-32948288
