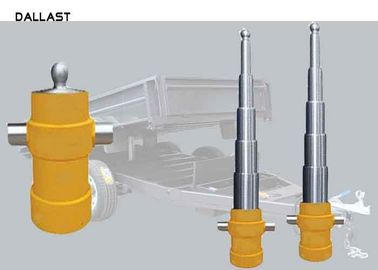

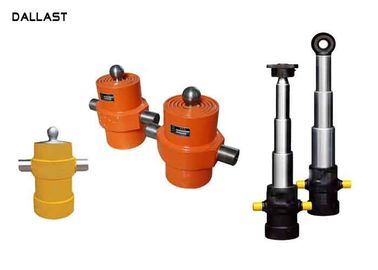

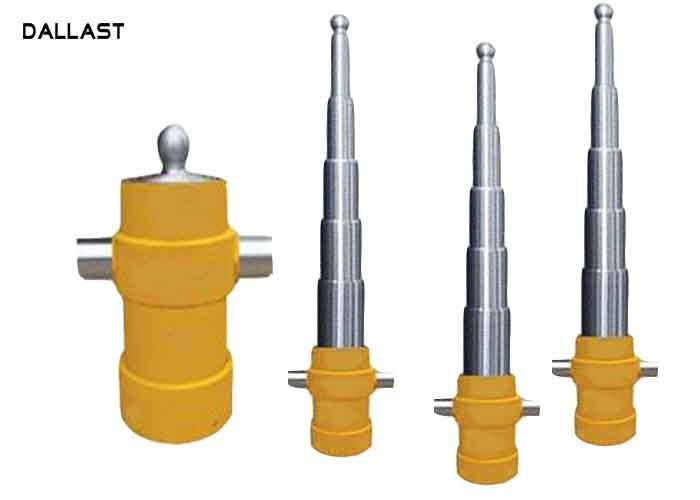

Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer

Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer

    • Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer
    • Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer
    • Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer
  • Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Seal Kits: Halllite, Parker, Merkel, NOK Etc Material: 27 SiMn, 45#, Q345B
    Color: Client't Request Surface Treatment: Chrome Plating
    Temperature: -30-40 Degrees Brand Name: DALLAST

    Single Acting Multistage Hydraulic Cylinder Telescopic FC Type Dump Tipper Trailer



    Model

    Bore diameter

    mm

    Installation distance

    mm

    Lift

    (Ton)

    4TG-E180*800 180 140 40
    4TG-E160*800 160 140 32
    4TG-E150*830 150 160 28
    4TG-E140*800 140 140 25
    4TG-E140*730 140 140 25
    4TG-E135*800 135 140 23
    4TG-E135*730 135 140 23
    4TG-E130*750 130 110 21
    3TG-E150*800 150 140 28
    5TG-E130*750 130 140 21
    3TG-E130*900 130 140 21
    4TG-E110*1360 110 140 15
    3TG-E110*1530 110 140 15
    3TG-E110*1350 110 140 15
    3TG-E110*1020 110 140 15
    3TG-E110*900 110 260 15
    2TG-E110*1020 110 140 15
    3TG-E90*1155 90 140 10
    3TG-E90*1020 90 140 10
    3TG-E90*900 90 260 10
    3TG-E90*750 90 140 10
    2TG-E90*900 90 140 10
    2TG-E90*600 90 260 10
    2TG-E90*500 90 260 10
    3TG-E70*750 70 140 6



    Cylinder Advantages:

    Multi-stage hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.
    Material Alloy steel,Carbon steel,Stainless steel,27SiMn
    Rod Chrome plated and quenched.Has good mechanical properties, long service life
    Cylinder Honing machining /boring /rolling
    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • Hydraulic Cylinders can be Make according to client's requirements
    • One year warranty and long time track service is offered to solve any problems you meet after sale.
    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:
    Bore diameter;
    Rod diameter;
    Stroke;
    Working pressure;
    Front and back end mount type;
    Using frequency;
    Work Environment;



    FAQ:
    1. What are the same aspects of your cylinder with Hyva cylinder?
    A: Same inside structure.
    Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

    2. Compared with Hyva cylinder, what are your cylinder advantages?
    A: 1. Rod are chrome plated.
    2. Tubes are quenched and tempered.
    3. Tube inner hole goes through deep hole boring machine processing. Surface roughness is 0.4Ra
    and circular degree is 0.025.
    4. Good quality yet lower price.

    3: Are you a manufacture or a trade company?
    A: Manufacture, we are the leader manufacturer of hydraulic industry in China with 22 years' experience and technology accumulation. With strong technical team we could solve any annoyance of you.

    4: Do you have quality control system?
    A: Yes, the quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.



    Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer

    Multi Stage Telescopic Hydraulic Cylinder Single Acting FC Type Dump Tipper Trailer
