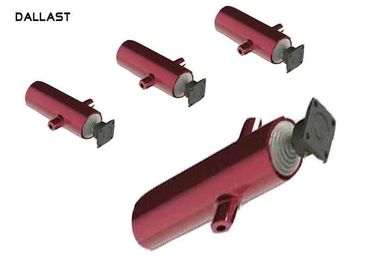

3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body

3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body

    • 3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body
    • 3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body
    • 3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body
  • 3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Model Number: Customzed Specification: Steel
    Delivery Time: 10-20 Days Size: 6-32MM
    Sample: Available Coatings: Chrome Plated

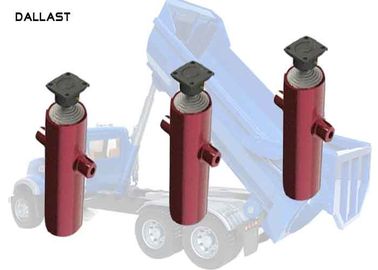

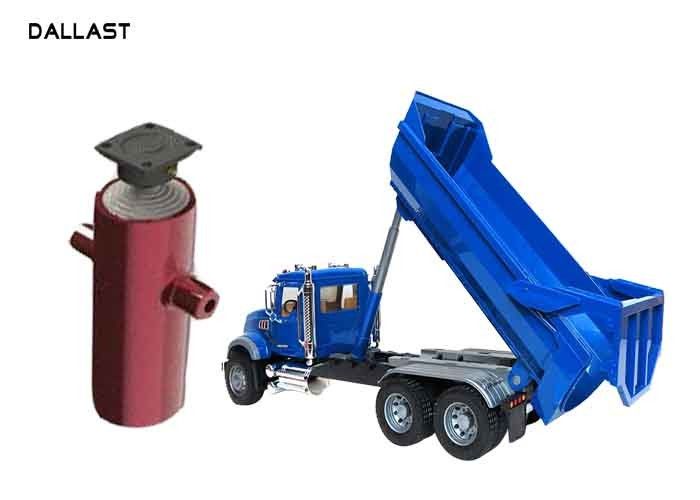

    3 4 5 Stage Telescopic Single Acting Dump Truck Hydraulic Cylinder for Trailer


    We can provide you with many sorts of single acting telescopic hydraulic cylinder and multistage telescopic hydraulic cylinder which are widely used for trailers, tippers and dump truck. The bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm which can provide the max power of 120t. We also can design it according to your request.
    Model

    Rated pressure
    Mpa

    Bore diameter
    mm

    Installation distance mm

    Lift
    (Ton)

    Stroke
    mm

    4TG-E180*8001618014040800
    4TG-E160*8001616014032800
    4TG-E150*8301615016028830
    4TG-E140*8001614014025800
    4TG-E140*7301614014025730
    4TG-E135*8001613514023800
    4TG-E135*7301613514023730
    4TG-E130*7501613011021750
    3TG-E130*9001613014021900
    3TG-E110*153016110140151530
    3TG-E110*135016110140151350
    3TG-E110*102016110140151020
    3TG-E110*9001611026015900
    2TG-E110*102016110140151020
    2TG-E90*900169014010900
    2TG-E90*600169026010600
    2TG-E90*500169026010500


    A. Hydraulic cylinders introductions
    1. Seals:Parker/Nok/Hallite/Taiwan ;
    2. Rod :Chrome plated and quenched.Has good mechanical properties, long service life;
    3. Cylinder:Honing machining /boring /rolling;
    4. Ballblast for paint ;
    5. Short Delivery Time ;
    6. Warranty:One year;

    B. Mounting way:
    1. Front and end of earring;
    2. Head fixed with flange;
    3. End fixed with flange;
    4. Vertical to axis foot type;
    5. Middle fixed with pendulum shift;
    6. End with single earring;
    7. According to your demand.

    C. Price and technical solutions :
    In order for you to get a better price and technical solutions.Please provide the following required parameters:
    1. Bore diameter;
    2. Rod diameter;
    3. Stroke;
    4. Working pressure;
    5. Front and back end mount type;
    6. Using frequency;
    7. Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.

    Quality control
    All specification is designed by professional engineer
    All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
    All material is processed by skilled workers and advanced CNC lathe
    All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
    One year warranty and life long time follow up service is offered to solve any problems you met when use our products

    3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body
    3 4 5 Stage Telescopic Hydraulic Ram Cylinder Chrome Plated Coatings Steel Body
