Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform

Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform

    • Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform
    • Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform
    • Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform
    • Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform
  • Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform

    Product Details:

    Place of Origin: shandong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Temperature Pressure: 16-35MPa
    Structure: Sleeve Single Acting Installation Type: FE
    Stroke: 200-12000mm Sleeve O.d: 150/129/110/91mm
    Effective Dia Of First Stage: 150mm Weight: 180kg

    Single Acting Hydraulic Cylinder for Hydraulic Unloading Machine and Hydraulic Unloading Platform



    Introduction&Application:

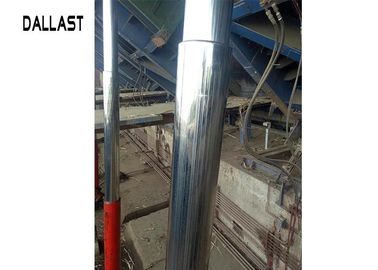

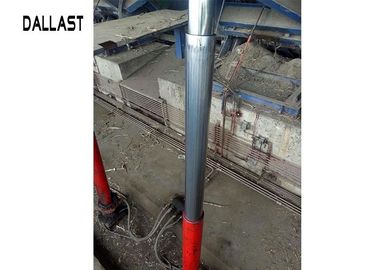

    1. For hydraulic flap automatic unloading machine.



    2. Using the hydraulic cylinders for this unloading can save time, save manpower, increase efficiency, and reduce costs.

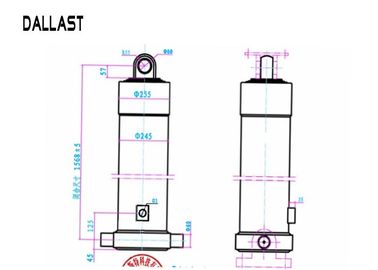

                                                                            FE Type Hydraulic Cylinder
    Model Lifting capacity Rated pressure Bore diameter
    (Ton) (MPa) (mm)
    FE-3-E158*3880 31.35 16 158/136/115
    FE-3-E158*4090 31.35 16 158/136/115
    FE-4-E158*4280 31.35 16 158/136/115/95
    FE-4-E158*4650 31.35 16 158/136/115/95
    FE-4-E158*4940 31.35 16 158/136/115/95
    FE-4-E175*4280 38.47 16 175/158/136/115
    FE-4-E175*4620 38.47 16 175/158/136/115
    FE-4-E175*5180 38.47 16 175/158/136/115



    Features:
    Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.
    • Single-acting cylinders transfer force and motion in one direction only.



    Higher efficiency:

    Smaller cylinder diameter makes the smaller working volume, the speed of oil cylinder lifting and falling are more fast and more efficiency, running more can bring more benefits.



    Stronger weather resistance:

    The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.



    Better performance:

    Imported high quality materials and spare parts make outstanding products performance. Precision of the system structure design, lean manufacturing and long service life can bring a lot of benefits to customers.



    Mounting option:
    It has FC, FE, FEE.



     Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.


    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



     Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.
