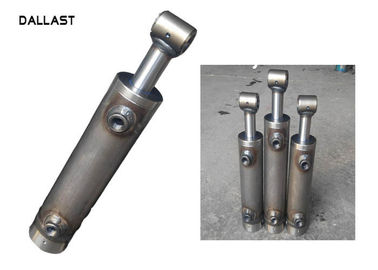

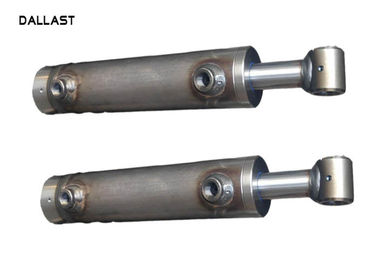

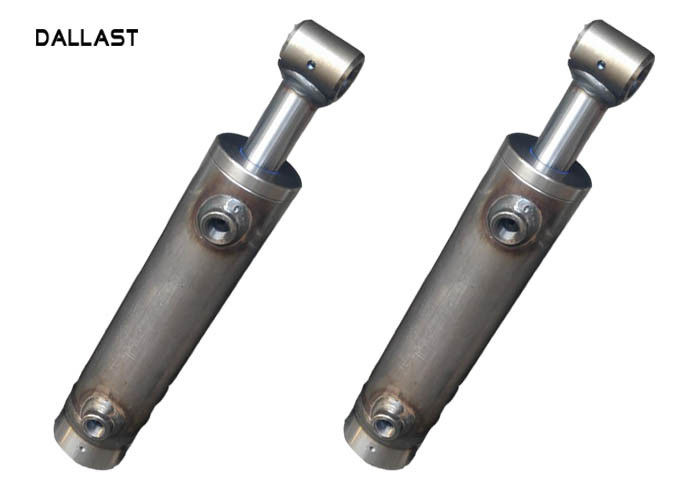

Dump Trailer Double Ended Hydraulic Ram , 4 Inch Hydraulic Hoist Cylinder Steel Material

Dump Trailer Double ended Hydraulic RAM, 4 Inch Hydraulic Cylinder

Division I main products:

Detailes:

1. Item Name: Dump Trailer Double ended Hydraulic RAM

2. Model: optional

3. Bore: 70 - 90 – 110 (optional)

4. Single stroke: 250 mm (optional)

5. Total stroke: 750 mm, 2000 mm, 7200 mm (optional)

6. Rated pressure: 16 mpa, 32 mpa (optional)

7. Installation distance: A.140mm B.260mm (made-to-order)

8. Dimensions: 450 x 213 (made-to-order)

9. Quality: 18 kg (different quality for choice)

10. Main material: steel

11. Color: Green, Black, Red, Silver, White, Natural color

12. Parts of a hydraulic cylinder: Cylinder barrel, Cylinder Bottom or Cap, Cylinder Head, Piston, Piston Rod, Rod gland, other parts (Cylinder bottom connection, Seals, Cushions)

13. Packing: Neutral Cartons, Wooden case. It is available to provide colorful package according to your design or we make design for your brand if required.

14. Function/Use: Widely used for John Deere, New Holland, Class, Case, Schumacher, Kubota and Yanmar machinery and heavy duty industrial machines, like trucks, diggers.

15. Designed: Single acting and double acting

16. Feature /Characteristic: should be used for pushing and pulling only. No bending moments or side loads should be transmitted to the piston rod or the cylinder.

17. Advantages: Maximal safety due to rigorous quality checks and test

18. Certificate: BV, CE

19. Place of Origin: Shandong

20. We can accept trail Order.

our company is specialized in the production of hydraulic

 Main varieties: Excavator hydraulic cylinder, the loaders hydraulic cylinder, the crane hydraulic cylinders, coal hydraulic support ship hydraulic cylinders, agricultural machinery hydraulic cylinders, engineering machinery hydraulic cylinders, machine classes hydraulic cylinder.

Quality control

All specification is designed by professional engineer

All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.

All material is processed by skilled workers and advanced CNC lathe

All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose

Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely

One-year warranty and life long time follow up service is offered to solve any problems you met when use our products

Company

Dallast was established in 1999 as a manufacturer for hydraulic cylinder, offering superior quality of any styles and sizes. ODM and OEM orders are welcomed. With an uncompromising commitment to innovation and excellence, Dallast has earned solid reputation for the effectiveness and reliability. Dallast’s success can be attributed to continuous development and testing of new hydraulic solutions designed to solve your problems of hydraulic equipment.

With its versatile design and manufacturing capabilities, Dallast has several hydraulic cylinder series: standard hydraulic cylinders, industrial machinery, vehicle equipment, lifting equipment, construction machinery and other applications. Adhere to the excellent quality, reasonable price standards, excellent quality assurance, best after-sales service, we won the praise and trust from our customers and have established long-term business relations with some customers If you have any questions concerning our products, please contact us!
