Semi Trailers Telescopic Hydraulic Cylinder Single Acting Long Stroke For Industry Mining

Semi Trailers Telescopic Hydraulic Cylinder Single Acting Long Stroke For Industry Mining

    • Semi Trailers Telescopic Hydraulic Cylinder Single Acting Long Stroke For Industry Mining
    • Semi Trailers Telescopic Hydraulic Cylinder Single Acting Long Stroke For Industry Mining
    • Semi Trailers Telescopic Hydraulic Cylinder Single Acting Long Stroke For Industry Mining
  • Semi Trailers Telescopic Hydraulic Cylinder Single Acting Long Stroke For Industry Mining

    Product Details:

    Place of Origin: shandong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Temperature Pressure: Medium Pressure
    Pressure Direction: Single Acting Cylinder Package: On Request
    Material: On Request Application: Heavy Duty

    Semi-trailers Hydraulic Cylinders Telescopic Single Acting Long Stroke for Industry Mining





     Any model could be customized
    MODEL  NO Stage

    First Stage

    Diameter

    Stroke Largest Sleeve OD Closed length Mounting distance
    [mm] [mm] [mm] [mm] [mm]
    FC-3-107-2855 3 107 2855 152 1268 311
    FC-3-107-3115 3 107 3115 152 1368 311
    FC-3-107-3265 3 107 3265 152 1418 311
    FC-3-107-3415 3 107 3415 152 1468 311
    FC-3-107-3715 3 107 3715 152 1568 311
    FC-3-126-3230 3 126 3230 219 1403 343
    FC-3-126-3680 3 126 3680 219 1553 343
    FC-3-126-3830 3 126 3830 219 1603 343
    FC-3-126-4400 3 126 4400 219 1803 343
    FC-4-126-4145 4 126 4145 219 1357 343
    FC-4-126-4345 4 126 4345 219 1407 343
    FC-4-126-4545 4 126 4545 219 1457 343
    FC-4-126-4745 4 126 4745 219 1507 343
    FC-5-165-5135 5 165 5135 244 1351 343



    Please note that the regularly stocked telescopic cylinders above.

    Feel free to contact our office to place an order for quick delivery.

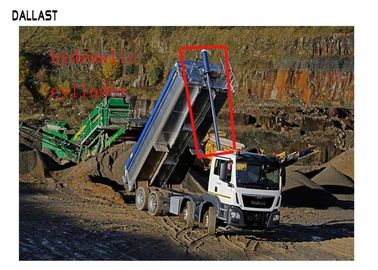

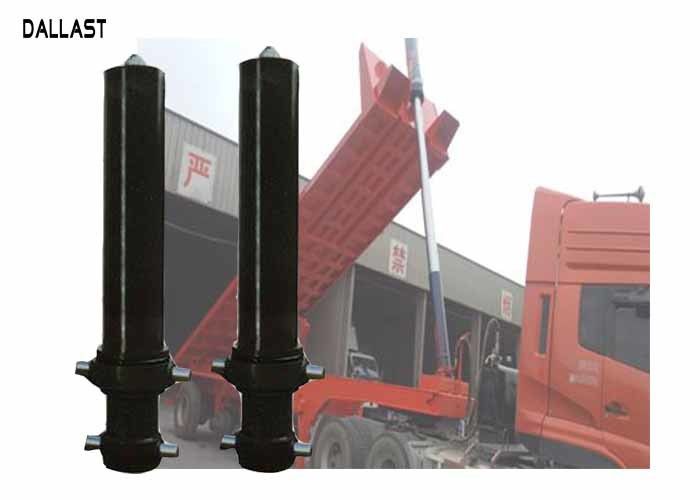

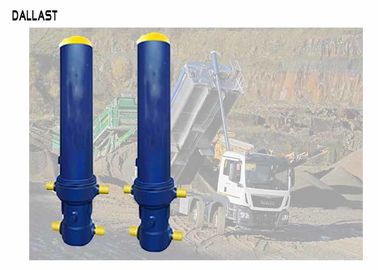

    Application: It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank.



    • There are many benefits to using a single acting dump truck cylinder. It’s the ideal choice for applications where gravity, weight or other assisting forces are present to move the cylinder in one direction. It could be mounted in any position so that it could be used in a wide range of mobile and industrial applications.
    • Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.
    • Single-acting cylinders transfer force and motion in one direction only.



    For piston seals, common seal are O-shaped, Y-shaped, V-shaped and so on.



    All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.





    Company profile:

    An important part of DALLAST Corporation's extensive list of custom capabilities is multistage telescopic hydraulic cylinders. Many applications needs for exceptionally long strokes coming from shorter, more compact units. Other applications require unique mounting to achieve their required stroke.

    DALLAST has years of rich experience to meet customers’ requirements by manufacturing these type cylinders for these type needs.



    Warrenty:

    We offer 12 months warranty.
