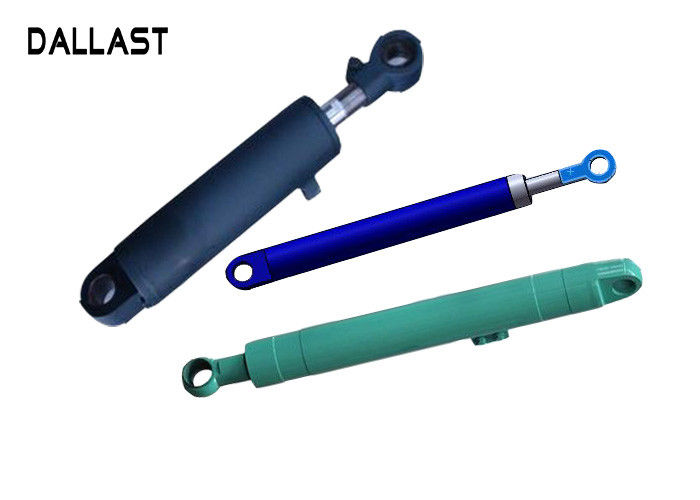

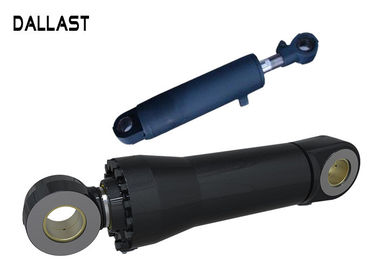

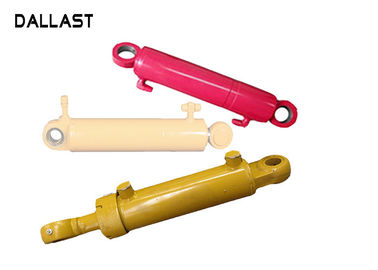

Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material

Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material

    • Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material
    • Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material
    • Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material
  • Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Power: Hydraulic Material: Stainless Steel
    Working Pressure: 16-32 Mpa Pressure Environment: Medium Pressure
    Type: Several Types For Your Choice Color: Any Color
    Standard: Standard, Nonstandard Hardness: HRC 45-55



    Double Acting Welded Agricultural Hydraulic Cylinders , Double Acting Hydraulic Piston





    How is pressure calculated in a hydraulic cylinder?​



    If you are calculating the pressure you are probably at the design stage of the development of an hydraulic mechanism. You must have already determined, by one means or another, the force acting on the mechanism. Since pressure is, by definition, force divided by area, if the force in Newtons divided by the area of the piston in the hydraulic cylinder being considered, in square millimetres. this will be the pressure required (in Megapascals) to resist that force. It would then be normal for a pressure in excess of that determined to cover contingencies or other known requirements.





    FAQ:



    Questions: Answers:
    1. Does your products come with a warranty? Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem.
    2. Can I customize our products from your factory? Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.
    3. Can I get samples to test before starting cooperation? Of course, we would like to produce sample hydraulic cylinder for your confirmation.
    4. How many days will samples be finished? Generally, 5-7 days for samples making.
    5. I want to see your hydraulic cylinders, where is your factory? Our factory located in Qingdao City, Shandong Province.







    Double Acting Welded Agricultural Hydraulic Cylinders , Double Acting Hydraulic Piston



    Application: Agricultural Machinery, Agricultural Trucks
    Stroke: 200mm to 13000mm
    Bore: 40mm to 800mm
    Shaft: 12mm to 500mm
    Work pressure: 16Mpa to 62Mpa (2250 PSI – 10150 PSI)
    Seal: Hallite, Parker, Merkel, DingZing, etc.
    Paint: Red, Grey, Yellow, Black, etc.
    Material: Stainless Steel
    Certificate: Gs, RoHS, Ce, ISO9001
    Package: Plywood Box or Pallet
    W.P. 160bar

    Tips:

    OEM service provided.

    We also can design by ourselves.



    Product Show :

    Agricultural Hydraulic Double Acting Ram Cylinder Stainless Steel Material
