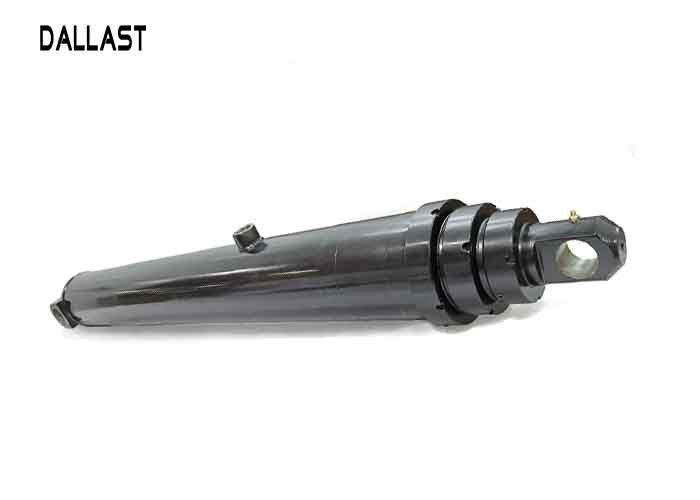

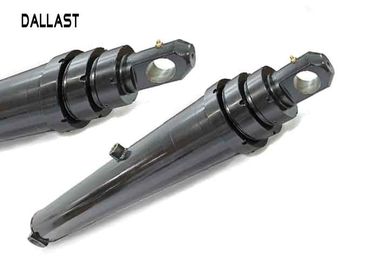

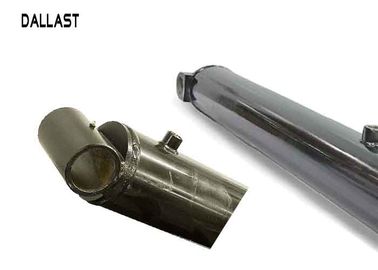

Name: 2000PSI 3 Stage Telescopic Single Acting Hydraulic Ram Buna 90 Gland O-Ring
Brand: DALLAST
SKU: could be customized
Price: 1.00 USD
Availability: InStock
Rating: 5 (157 reviews)

Home Products Telescopic Hydraulic Cylinder

2000PSI 3 Stage Telescopic Single Acting Hydraulic Ram Buna 90 Gland O-Ring

Product Details:

Place of Origin:	shan dong
Brand Name:	DALLAST
Certification:	GS, RoHS, CE, ISO9001
Model Number:	could be customized

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	negotiated
Packaging Details:	carton box
Delivery Time:	20-30 work days per year
Payment Terms:	T/T, Western Union, D/P, D/A, L/C
Supply Ability:	60000 pieces

Contact Now

Detailed Product Description

Mount Method:	Cross Tube Pin Eye	Gland O-Ring:	Buna 90
Struction:	Single Acting	Piston Rod:	1045 I.H.C.P.
Stage:	3 Stage Or Custom	Pressure:	2000 Psi
High Light:	telescopic hydraulic ram , hydraulic ram cylinder

2000PSI 3 Stage Telescopic Single Acting Hydraulic Cylinders Buna 90 Gland O-Ring

Introduction:

Retractable hydraulic cylinder can get a longer working stroke with multistage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multistage hydraulic cylinder.

3 Stage Single Acting Cylinders
Cylinder model	Total stroke length (in)(mm)	Closed length (in)(mm)	Extended length (in)(mm)	Width of base eye (in)(mm)	Diam. Of base pin eye (in)(mm)	Width of top pin eye (in)(mm)	Diam. Of top pin eye (in)(mm)	Weight (LBS)
DALLAST100-53-84P	84	39 1/2	122 1/2	7	Fits a 2" Pin	2	Fits a 2" Pin	178
DALLAST100-53-84P	2,133.60	1,000.30	1,000.30	177.8	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	452.12
DALLAST100-53-126P	126	54 1/2	180 1/2	7	Fits a 2" Pin	2	Fits a 1 3/4" Pin	215
DALLAST100-53-126P	3,200.40	138.43	4,584.70	177.8	Fits a 50.80 Pin	50.8	Fits a 44.45 pin	5,461.00
DALLAST100-63-108P	108	49 1/2	157 1/2	7 1/4	Fits a 2" Pin	2	Fits a 2" Pin	272
DALLAST100-63-108P	2,743.20	1,257.30	4,000.50	184.15	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	6,908.80
DALLAST100-63-120P	120	53 1/2	174 1/2	7 1/4	Fits a 2" Pin	2	Fits a 2" Pin	265
DALLAST100-63-120P	3,048.00	1,358.90	4,432.30	184.15	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	6,731.00
DALLAST100-63-126P	126	55 1/2	181 1/2	7 1/4	Fits a 2" Pin	2	Fits a 2" Pin	280
DALLAST100-63-126P	3,200.40	1,409.70	4,610.10	184.15	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	7,112.00
DALLAST100-63-132P	132	57 1/2	189 1/2	7 1/4	Fits a 2" Pin	2	Fits a 2" Pin	310
DALLAST100-63-132P	3,352.80	1,460.50	4,813.30	184.15	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	7,874.00
DALLAST100-63-140P	140	60	200	7 1/4	Fits a 2" Pin	2	Fits a 2" Pin	325
DALLAST100-63-140P	3,556.00	1,524.00	1,524.00	184.15	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	8,255.00
DALLAST100-73-120P	120	53 1/8	173 1/8	8 5/8	Fits a 2" Pin	2	Fits a 2" Pin	383
DALLAST100-73-120P	3,048.00	1,349.38	4,397.36	219.08	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	9,728.20
DALLAST100-73-124P	124	54 13/16	179 11/16	8 5/8	Fits a 2" Pin	2	Fits a 2" Pin	397
DALLAST100-73-124P	3,149.60	1,392.24	4,564.06	219.08	Fits a 50.80 Pin	50.8	Fits a 50.80 Pin	10,083.80

Rod Seal	O-shaped, Y-shaped, V-shaped and so on
Piston	1045 Bronze Overlay .09" per Side
Rod	1045 I.H.C.P.
Front Cushion	660 Bronze
Capacity	OFF TRAILER WITH 60,000# LIFT CAPACITY
OUTSIDE RAIL CONTAINERS	HANDLE 20'-25’
PSI(Pressure)	Adjustable PSI (2,000)
Valve	Commercial Valve
12”X 4”X 3/8”GRADE A 500 RECTANGULAR TUBING MAIN FRAME ½” X 4” FLAT BAR WEAR PAD, ½” X 4” TRUSS WRAP, ¾” KING PIN PLATE, 12”X 4” CROSS MEMBERS, 4”X4”X 3/8” STABILIZER FRAME 3- ½ 7” BORE REEVE CYLINDER (2) 8”-4 STAGE TELESCOPIC MAIN LIFT CYLINDER (2) 25,000# AXLE 16X7.5 BRAKES, AUTO SLACKS Standard JIC Fitting on All Hydraulic and Air Lines No Hydraulics in Rear of Trailer, Reduces chance of leaks and centralizes plumbing (2) Fixed Stops at Front of Trailer 3 1/2" Rollers Welded to Outside Frame, 2-ply Rubber Fenders on Rear (4) NYLON TIE DOWN STRAPS & ALL L.E.D LIGHTS MEET DOT #108 New 10 Hole Uni-MountSteel Rims w/ 11R22.5 Tires (8) ICC REGULATED BUMPER- AIR ACTUATED We offer 12 months warranty.

Piston Seals:

It has the advantages of simple structure, easy manufacture, automatic compensation after wear, reliable performance, and can be used between the cylinder and the piston, between the cylinder head and the piston rod, between the piston and the piston rod, between the cylinder tube and the cylinder head.

Quality control:

1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

2000PSI 3 Stage Telescopic Single Acting Hydraulic Ram Buna 90 Gland O-Ring
