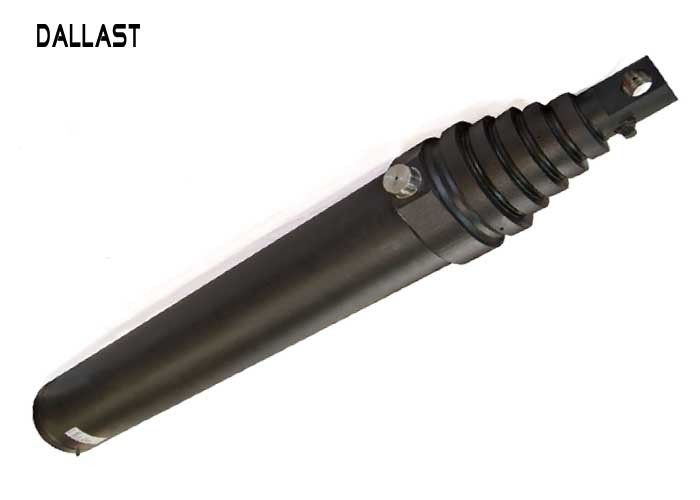

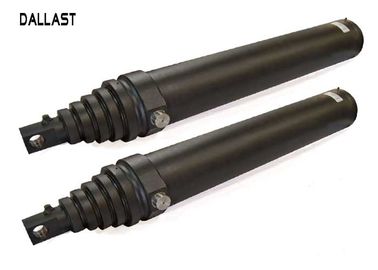

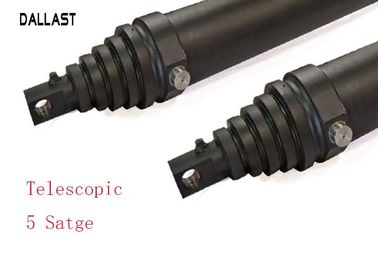

5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring

5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring

    • 5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring
    • 5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring
    • 5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring
  • 5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Washer: 5/8 Hardwasher Gland O-Ring: Buna 90
    Struction: Pin Eye Single Acting Piston Rod: 1045 I.H.C.P.
    Stage: 5 Stage Or Custom Pressure: Medium Or High Pressure

    5 Stage Telescopic One Way Single Acting Hydraulic Cylinders Buna 90 Gland O-Ring







    ​​Introduction:



    Retractable hydraulic cylinder can get a longer working stroke with multistage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multistage hydraulic cylinder.



    Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set.



    The piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinde.



    In general telescopic cylinders are much more expensive than normal cylinders.



    Most telescopic cylinders are single acting (push).





    Rod Seal

    O-shaped, Y-shaped, V-shaped and so on

    Piston

    1045 Bronze Overlay .09" per Side

    Rod

    1045 I.H.C.P.

    Front Cushion

    660 Bronze

    Capacity OFF TRAILER WITH 60,000# LIFT CAPACITY
    OUTSIDE RAIL CONTAINERS HANDLE 20'-25’
    PSI(Pressure) Adjustable PSI (2,500)
    Valve Commercial Valve







    • 12”X 4”X 3/8”GRADE A 500 RECTANGULAR TUBING MAIN FRAME

    • ½” X 4” FLAT BAR WEAR PAD, ½” X 4” TRUSS WRAP, ¾” KING PIN PLATE,

    • 12”X 4” CROSS MEMBERS, 4”X4”X 3/8” STABILIZER FRAME

    • 3- ½ 7” BORE REEVE CYLINDER (2)

    • 8”-4 STAGE TELESCOPIC MAIN LIFT CYLINDER (2)

    • 25,000# AXLE 16X7.5 BRAKES, AUTO SLACKS

    • Standard JIC Fitting on All Hydraulic and Air Lines

    • No Hydraulics in Rear of Trailer, Reduces chance of leaks and centralizes plumbing

    • (2) Fixed Stops at Front of Trailer

    • 3 1/2" Rollers Welded to Outside Frame, 2-ply Rubber Fenders on Rear

    • (4) NYLON TIE DOWN STRAPS & ALL L.E.D LIGHTS MEET DOT #108

    • New 10 Hole Uni-MountSteel Rims w/ 11R22.5 Tires (8)

    • ICC REGULATED BUMPER- AIR ACTUATED

    • Sizes/Measurements are in inches rounded to nearest fraction - All cylinders are Single Acting
    •
    • We offer 12 months warranty.





    Piston Seals:

    It has the advantages of simple structure, easy manufacture, automatic compensation after wear, reliable performance, and can be used between the cylinder and the piston, between the cylinder head and the piston rod, between the piston and the piston rod, between the cylinder tube and the cylinder head.





    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.


    5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring

    5 Stage Telescopic One Way Hydraulic Cylinders Buna 90 Gland O-Ring
