Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck

Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck

    • Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck
    • Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck
    • Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck
  • Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Standard: Standard, Nonstandard Special Cylinder Type: Custom Hydraulic Cylinder
    Business Type: Manufacturer Working Pressure: 16-32 Mpa
    Seals: Parker, Merkel, Hallite Transport Package: Plywood Box Or Pallet
    Working Medium: Hydraulic Oil


    Single Acting Telescopic Multistage Hydraulic Chromed Cylinder for Garbage Truck​





    Special features:
    1. Oil port connection: internal thread or flange
    2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
    Both ends with buffer
    Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
    Rod side band buffer
    4. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing
    5. Installation: cylinder head earrings with bushing
    Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange



    Parameters:

    We are manufacturing various kinds of hydraulic cylinders like:

    1. Double Acting Hydraulic cylinders
    2. Telescopic Cylinders
    3. Piston Hydraulic cylinders
    4. Single-acting cylinder




     3 4 5 STAGE​ FRONT END HYDRAULIC CYLINDER



    MODEL STAGES STROKE 1ST STAGE DIA VEHICLE BODY LENGTH(m)
    3-150-3872 3 3872 150 4.6~5.2
    3-150-4270 3 4270 150 5.5~5.6
    4-160-4280 4 4280 160 5.5~5.6
    4-180-4280 4 4280 180 5.5~5.6
    4-180-4650 4 4650 180 5.8~6.1
    4-180-5000 4 5000 180 6.5~7.3
    4-180-5390 4 5390 180 6.6~7.8
    4-180-5780 4 5780 180 6.8~8.0
    4-196-5460 4 5460 196 6.6~7.8
    5-196-5780 5 5780 196 6.8~8.0
    5-196-6180 5 6180 196 7.5~8.2
    5-221-9030 5 7030 221 11.0~12.0
    5-214-7800 5 7800 214 9.0~10.0




    FAQ:


    Questions: Answers:
    1. Does your products come with a warranty? Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem.
    2. Can I customize our products from your factory? Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.
    3. Can I get samples to test before starting cooperation? Of course, we would like to produce sample hydraulic cylinder for your confirmation.
    4. How many days will samples be finished? Generally, 5-7 days for samples making.
    5. I want to see your hydraulic cylinders, where is your factory? Our factory located in Qingdao City, Shandong Province.



    Product Advantage:



    Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Push-pull cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.


    Multi-stage telescopic sleeve hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.



    Product Show:

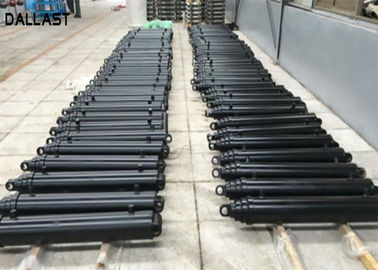

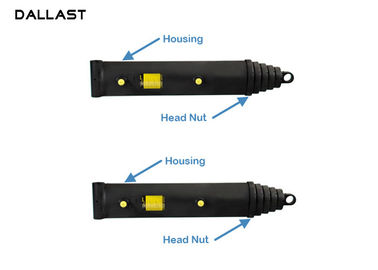

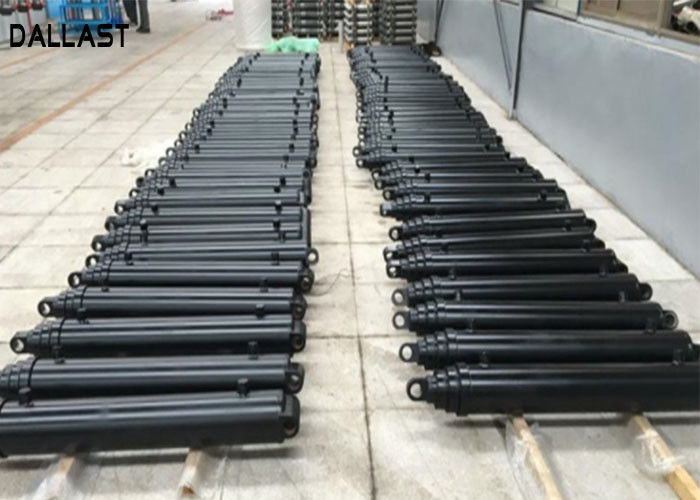

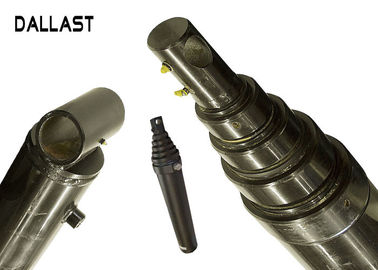

    Telescopic Multistage 3 4 5 Stage Hydraulic Cylinder Single Acting for Dump Truck
