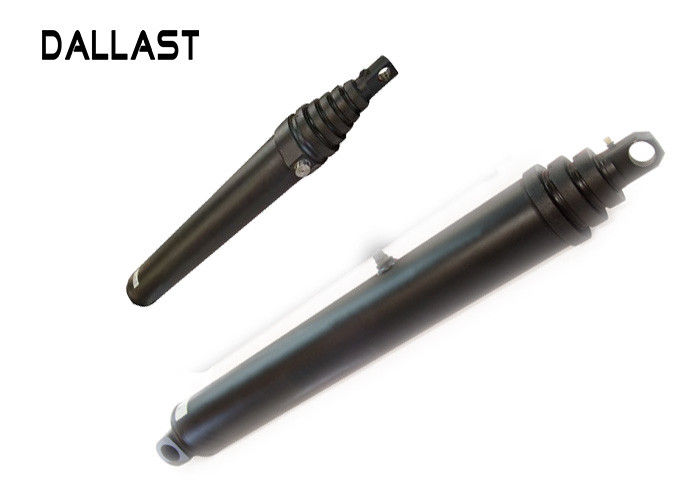

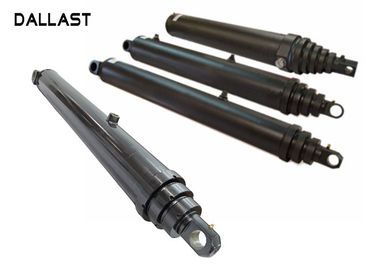

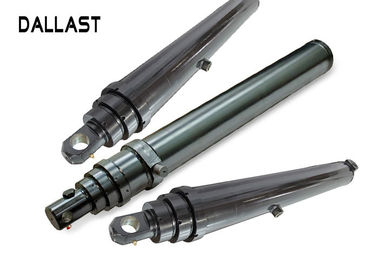

Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck

Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck

    • Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck
    • Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck
    • Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck
  • Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Pressure Environment: Medium Pressure Standard: Standard, Nonstandard
    Special Cylinder Type: Custom Hydraulic Cylinder Test: 100% Test
    Business Type: Manufacturer Warranty: One Year
    Working Pressure: 16-32 Mpa Seals: Parker, Merkel, Hallite
    High Light:

    telescopic hydraulic ram

    ,

    hydraulic ram cylinder


    Single Acting Telescopic Multistage Hydraulic Chromed Cylinder for Garbage Truck​





    Parameters:

    We are manufacturing various kinds of hydraulic cylinders like:

    1. Double Acting Hydraulic cylinders
    2. Telescopic Cylinders
    3. Piston Hydraulic cylinders
    4. Single-acting cylinder



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    This product is used in numerous application including:
    1. Dump truck.
    2. Pump trucks.
    3. Truck mounted crane.
    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders.
    The above data for reference only, we can fully meet your requirements to make customers satisfied with the product. If you need, feel free to contact us and we can advice and design.



    Special features:
    1. Oil port connection: internal thread or flange
    2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
    Both ends with buffer
    Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
    Rod side band buffer
    4. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing
    5. Installation: cylinder head earrings with bushing
    Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange


    Product Advantage:



    Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Push-pull cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.


    Multi-stage telescopic sleeve hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.


    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.


    FAQ:

    Q1: Are you a trading company or manufacturer?
    A1: We are the manufacturer with Exporting License.

    Q2: How long have you been in Hydraulic Cylinder industry?
    A2: Our factory is built in year 2002 and start by manufacturing Pneumatic Cylinder. From year 2007, we start manufacturing Hydraulic Cylinder.

    Q3: How long is your warranty period?
    A3: We offer 12 months warranty period after on board.

    Q4: How long does it take to process orders?
    A4: It usually takes 15-25 days to process. We don’t have stock.

    Q5: What’s your cylinder PPM?
    A5: 5000 PPM. We do 100% inspection before delivery.

    Q6: Do your products support trade assurance?
    A6: Yes, our products are all supported.

    Product Show:

    Single Acting Telescopic multi stage telescopic hydraulic cylinder for Garbage Truck
