Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck

Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck

    • Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck
    • Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck
    • Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck
  • Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Working Method: Straight Trip
    Special Cylinder Type: Custom Hydraulic Cylinder Hardness: HRC 45-55
    Available Temperature: -40 ℃ To 80 ℃ Extended Stages: 3-7 Stages
    Delivery Time: 15-25 Days Color: Any Color You Want


    Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck​


    Key Features:

    Our hydraulic cylinders range in size from 50mm bores up to 100mm bores, with push power ranging from 3.8 tonnes up to 16.5 tonnes. We stock both single acting and double acting hydraulic cylinders and rams.Ramko also design and manufactures bespoke hydraulic cylinders and professional sub-contract CNC machining, plus tipping rams, trailer brake rams, cylinder supplies, accessories, hoses, kits, quick release couplings and valves. Ramko also offers a range of hydraulic log splitter cylinders and kits to build your own hydraulic log splititter cylinders and kits to build your own hydraulic log splitter. The push power available on log splitter cylinders include 13.4 tonne, 25 tonne and a heavy duty 30 tonne hydraulic log splitter cylinder.

    Characteristics:
    We are manufacturing various kinds of hydraulic cylinders like:

    1. Double Acting Hydraulic cylinders
    2. Telescopic Cylinders
    3. Piston Hydraulic cylinders
    4. Single-acting cylinder

    This product is used in numerous application including:

    1. Dump truck,
    2. Pump trucks,
    3. Truck mounted crane,
    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders,

    Parameters:

    We have more than decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
    • diameter of bore & rod
    • stroke length
    • mounting style
    • mounting distance
    • working pressure
    • ports
    • seals
    • special modifications
    • paint color requirement
    • operating pressure
    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5


    FAQ:

    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer with Exporting License.



    Q2: How long have you been in Hydraulic Cylinder industry?

    A2: Our factory is built in year 2002 and start by manufacturing Pneumatic Cylinder. From year 2007, we start manufacturing Hydraulic Cylinder.



    Q3: How long is your warranty period?

    A3: We offer 13 months warranty period after on board.



    Q4: How long does it take to process orders?

    A4: It usually takes 15-25 days to process. We don’t have stock.



    Q5: What’s your cylinder PPM?

    A5: 5000 PPM. We do 100% inspection before delivery.



    Q6: Have you been exported to overseas?

    A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.

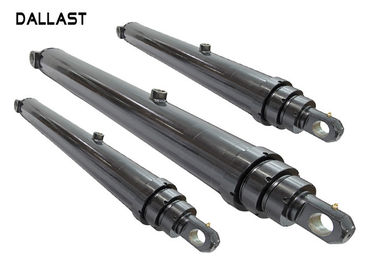

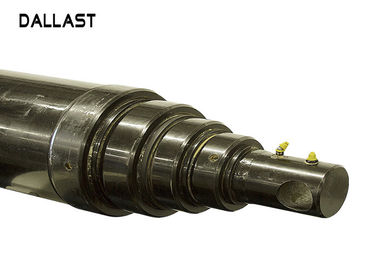

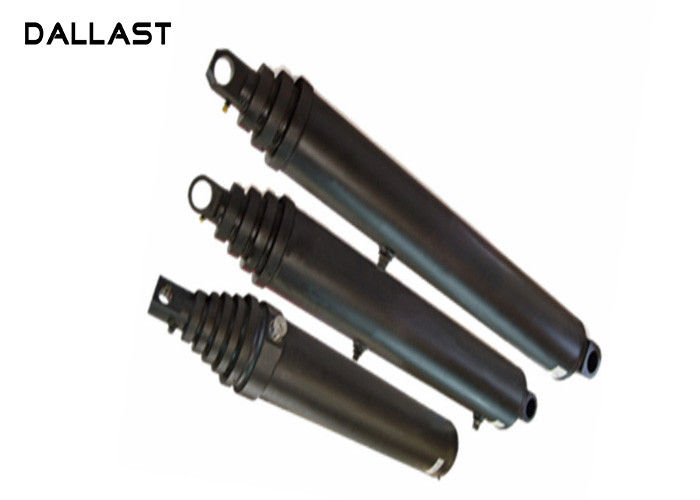

    Product Show:

    Multistage Telescopic Hydraulic Cylinder FC Pin Mount Agricultural Farm Truck
