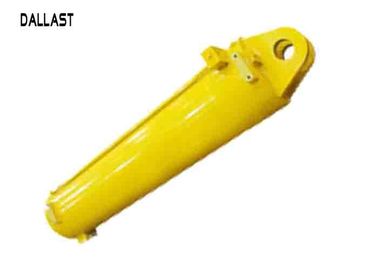

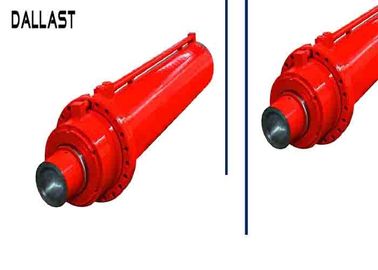

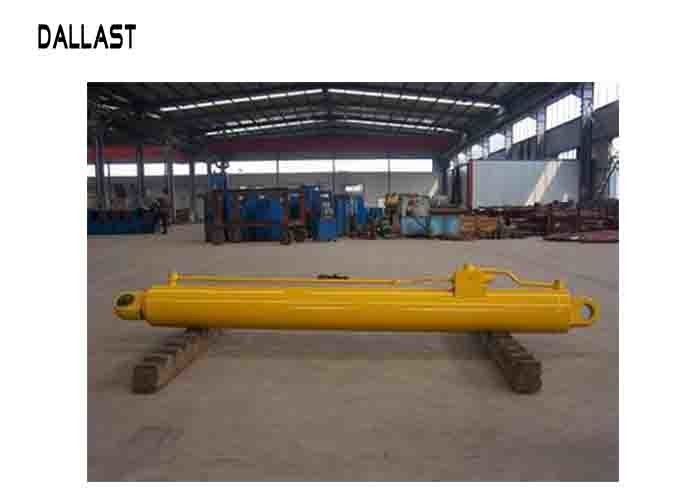

High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator

High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator

    • High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator
    • High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator
    • High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator
  • High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: nogotiated
    Packaging Details: carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces per year
    Contact Now
    Detailed Product Description
    Custom Sizes: Up To And Above 36" Bore Type Of Acting: Double Acting High Pressure
    Working Forms: Straight Trip Adjusting Forms: Regulated Type
    Structure: Piston Type Painted: Red, Blue, Or According To Your Request
    Stroke: Customized Design: Custom

    Hydraulic Excavator Crawler Type, Tire Type, Walking Type Hydraulic Cylinder Double Acting






                                                          Features & Benefits
    Stroke lengths  2000mm and longer
    Working pressure Designs up to 10000 psi
    Total weights  Can often reach nearly 25,000 pounds
    Outer tubes material High yield carbon or alloy steel  27SIMN
    Rods  001" minimum chrome plated carbon or alloy steel rods

    Rod glands


    Options for ductile iron or bronze inlaid steel rod glands

    Hydrostatic testing data packets and material test reports available



    Seal kits available for quick shipment



    Short manufacturing lead times



    About hydraulic cylinder and hydraulic excavator:

    Hydraulic cylinder is the hydraulic actuator which could transfer the hydraulic energy into mechanical energy, do linear reciprocating motion (or swing motion). Use it to achieve reciprocating motion, eliminating the need for deceleration devices, and no transmission gap, smooth movement, and therefore in a variety of mechanical hydraulic system is widely used.



    Hydraulic excavators generally consist of three parts: working equipment, swinging equipment and walking equipment. According to its structure and use, it can be divided into crawler type, tire type, walking type, full hydraulic pressure, semi-hydraulic pressure, full rotation, non-full rotation, universal type, special type, articulated type, and telescopic type.



    The work device is a device that directly completes the mining task. It consists of a three-piece articulated arm, bucket, and bucket. Boom lifting, boom telescoping, and bucket rotation are all controlled with reciprocating double-acting hydraulic cylinders. In order to meet the needs of various construction operations, hydraulic excavators can be equipped with a variety of working devices, such as excavation, lifting, loading, leveling, clamps, dozing, impact hammers and other work tools.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Piston Seals:

    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.





    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.

    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.

    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Warranty & Service:

    We offer 12 months warranty.

    As our hydraulic cylinders, hydraulic cylinder parts, such as the piston rod; Shenzhen DALLAST offers one of the best standard products warranties in this industry. We use of defective materials for normal use when properly maintained for 36 months from the date of shipment in normal use and service.



    High Pressure Hydraulic Cylinder for Full Hydraulic Pressure, Semi-hydraulic Pressure Excavator
