Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment

Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment

    • Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment
    • Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment
    • Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment
  • Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Stroke: According To Your Requirement Installation Method: Custom
    Temperature: Normal Temperature Inside Diamater: 100-500mm
    Main Export Markets: USA, Europe, Asia, Etc. Application: 2 Post Car Lift Equipment

    Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment





    Working pressure 10MPa-36MPa
    Bore size 40mm-255mm
    Color Any color, if you needed
    Mouting Type Earring-tunnion, double tunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001:2008, SGS, TS16949
    Warranty One year
    Working temperature -30° C to 80°C
    Stroke custom
    Package Shrink film, pallet, plywood case, carton box
    Main export market USA, Canada, South Korea, Russia, Australia, Malaysia, Fiji Island, Kenya, Philippines, Singapore
    payment terms T/T, L/C, D/A, D/P AND SO ON
    Delivery time 30 days after down payment
    Model SHL-2-250L Motor Power 3KW
    Lift Capacity 5T Voltage 220V/380V
    Min Height 85mm Inner Width 3000mm
    Lifting Height 1850mm Total Width 3560mm
    Rise Time 50s Total Height 3900mm
    Drop Time 30s Optional 3 stage lower telescopic arm

    Key features:



    • portable lift
    • 2 floor car lift
    • hydraulic cylinder drive
    • valet manual mode
    • carport garage use car stack hydraulic car lif




    If you are interested in our products, contact us and send us the drawings:
    The drawing details are as follows.
    A
    1. Bore size
    2. Stroke length
    3. Rod diameter
    4. Mounting type
    5. Mounting length
    6. Paint color requirement
    B. The product application description details
    1. Type of machine(loader, steer loader, excavator, and etc.)
    2. Type of function(hoist, swing, steering, and etc.)
    3. Type of structure(piston, telescopic)
    4. Single or double acting
    5. Operating pressure


    Quality control :

    • All specification is designed by professional engineer
    • All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
    • All material is processed by skilled workers and advanced CNC lathe
    • All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    • Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
    • One year warranty and life long time follow up service is offered to solve any problems you met when use our products

    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.






    DALLAST

    Hydraulic cylinder produce line, 700 sets manufacturing equipment, such as cold drawing production line , heat treatment production line, surface treatment production line, testing equipment, various digital-control machining equipment,gantry style linear electroplating production line, hydraulic cylinder quality guarantee system.



    We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the drawings and tell us the details.

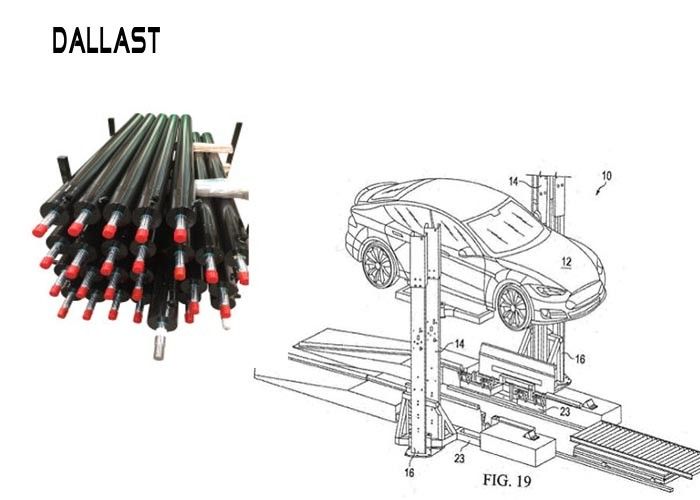

    Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment

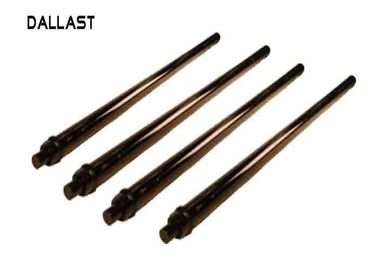

    Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment

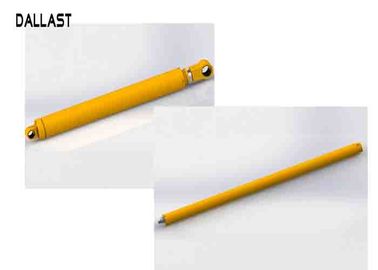

     Double Acting Car Lift Hydraulic Ram for Home Garbage 2 Post Car Parking Equipment
