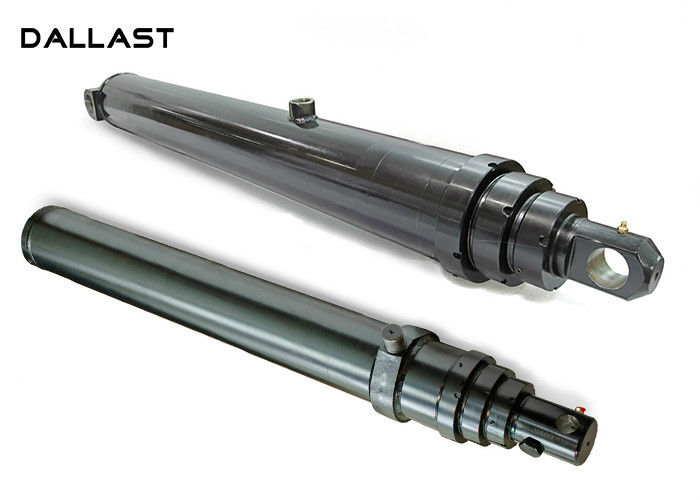

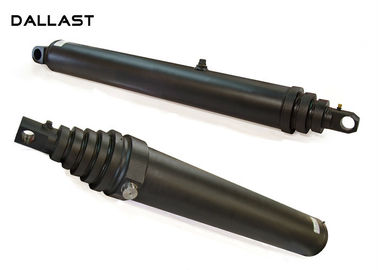

Hyva Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck

Hyva Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck

    • Hyva Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck
    • Hyva Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck
  • Hyva Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: CE,RHOS,ISO9001-2009 ,TS16949
    Model Number: Standard Nostandard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 200000PCS per year
    Contact Now
    Detailed Product Description
    Size: Customized As Your Request Acting Way: Single-Acting Cylinder
    Structure: Piston Type Hydraulic Cylinder Mounting Style: Pin Or Trunnion Mount
    Stage: 3 4 5 Stage Pressure: Medium Pressure
    Work Temperature: Normal Temperature Warranty: One Year After Shipping Arrival
    Seal: Hallite,SKF,NOK,Guarnitec,Parker Piston Rod: Tempering, Plated Nickel, Chrome Or Ceramic



    Hyva Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinders for Dump Truck



    Products Discription:

    • Single acting
    • All cylinder stages are chrome plated & roller burnished
    • All cylinders have a MAX Working Pressure of 2000psi
    • Cross overs available for Parker® and Custom Hoist®
    • HS Code: 8412210000
    • Application: Dump truck, Tipper, Dump Trailer,Agricultural Mining Garbage Dump Truck
    • Material: Alloy Steel,Carbon steel,27SiMn
    • Color: Red black blue gray, according to customer's requirement
    • Seal: Parker, Merkel, Hallite, Kaden,NOK,SKF etc
    • Stroke: 2980mm-12000mm
    • Honed tube: 20-2000mm, Heat treatment, honing, rolling
    • Piston rod: 10-1500mm,tempering, plated nickel, Chrome or ceramic
    • Main export market: Experience in export North America, Australia, Asia, Middle East, Africa;

    Advantage:

    • We are most of famous manufacturing company in telescopic cylinders.
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
    • One-stop total solution
    • Ready stock goods with fast delivery
    • Customizable: Non-standard sizes are also available
    • Small quantity is acceptable
    • Refund or replacement for any product fault
    • Hydraulic Cylinders can be product according to client's requirements;
    • We do accept OEM manufacturing. We will provide competitive price and make the exact cylinder according to your specification and drawing.
    • We have professional R&D team with rich design experience.
    • We also establish strict but scientific product testing system so that products have perfect performance.
    • One year warranty and long time track service is offered to solve any problems you meet after sale.



    3 STAGE PIN MOUNT CYLINDER SPECIFICATIONS
    Model Total Stroke(inch) Closed length Extended length Weight(LBS)
    Dallast-Pin-100-53-84 84 39 1/2 122 1/2 178
    Dallast-Pin-100-53-126 126 54 1/2 180 1/2 215
    Dallast-Pin-100-63-108 108 49 1/2 157 1/2 272
    Dallast-Pin-100-63-120 120 53 1/2 174 1/2 265
    Dallast-Pin-100-63-126 126 55 1/2 181 1/2 280
    Dallast-Pin-100-63-132 132 57 1/2 189 1/2 310
    Dallast-Pin-100-63-140 140 60 200 325
    Dallast-Pin-100-73-120 120 53 1/8 173 1/8 383
    Dallast-Pin-100-73-124 124 54 13/16 179 11/16 397

    4 STAGE PIN MOUNT CYLINDER SPECIFICATIONS
    Model Total Stroke(inch) Closed length Extended length Weight(LBS)
    Dallast-Pin-100-64-135/175 135 48 1/4 183 275
    Dallast-Pin-100-64-156/175 156 53 1/4 209 1/4 301
    Dallast-Pin-100-64-156 156 53 1/2 209 1/2 295
    Dallast-Pin-100-74-135 135 48 1/2 182 1/2 340
    Dallast-Pin-100-74-156 156 53 1/2 209 1/2 370
    Dallast-Pin-100-74-180 180 59 1/2 239 1/4 448

    5 STAGE PIN MOUNT CYLINDER SPECIFICATIONS
    Model Total Stroke(inch) Closed length Extended length Weight(LBS)
    Dallast-Pin-100-85-190 190 54 244 520
    Dallast-Pin-100-85-220 220 60 280 595
    Dallast-Pin-100-85-235 235 65 300 632
    Dallast-Pin-100-85-250 250 68 318 690
    Dallast-Pin-100-85-265 265 71 336 710

    TRUNNION MOUNT CYLINDER SPECIFICATIONS
    Model Total Stroke(inch) Closed length(inch) Extended length(inch) Weight(LBS)
    3TG-Dallast-100-63-140T 140 60 1/2 200 1/2 330
    5TG-Dallast-100-85-235T 235 65 1/2 300 1/2 695
    5TG-Dallast-100-85-250T 250 68 1/2 318 1/2 728
    5TG-Dallast-100-85-265T 265 71 1/2 336 1/2 757
    Parker and Custom Hoists Kind
    Parker Model No. First Stage Diameter Stroke(A) Closed Length(B) Open Length(C)
    S53DC-66-72 3TG F5*72 5" 72"(1829mm) 37.19" (945mm) 109.19" (2773mm)
    S53DC-66-84 3TG F5*84 5'' 84" (2134mm) 41.19" (1046mm) 125.19" (3180mm)
    S53DC-65-107 3TG F5*107 5" 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
    S53DC-65-126 3TG F5*126 5" 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
    S63DC-101-86 3TG F6*86 6" 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
    S63DC-101-104 3TG F6*104 6" 103.94" (2640mm) 47" (1194mm) 150.94" (3834mm)
    S63DC-101-107 3TG F6*107 6" 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
    S63DC-97-111 3TG F6*111 6'' 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm)
    S63DC-102-120 3TG F6*120 6'' 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm)
    S63DC-97-123 3TG F6*123 6'' 123" (3124mm) 54.94" (1395mm) 177.94" (4519mm)
    S63DC-102-126 3TG F6*126 6'' 126.31"(3208mm) 54.56" (1386mm) 180.87" (4594mm)
    S63DC-101-140 3TG F6*140 6'' 140.25" (3562mm) 59.81" (1519mm) 200.06" (5081mm)
    S64DC-12-135 4TG F6*135 6'' 135" (3429mm) 47.19" (1199mm) 182.19" (4628mm)
    S64DC-14-156 4TG F6*156 6'' 156" (3962mm) 53.62" (1362mm) 209.62" (5324mm)
    S73DC-66-110 3TG F7*110 7" 110.63" (2810mm) 50.06" (1271mm) 160.69" (4081mm)
    S73DC-66-120 3TG F7*120 7" 120" (3048mm) 53.12" (1349mm) 173.12" (4397mm)
    S73DC-66-124 3TG F7*124 7" 124.88" (3172mm) 54.81" (1392mm) 179.69" (4564mm)
    S73DC-66-129 3TG F7*129 7" 129" (3277mm) 56.5" (1435mm) 185.5" (4712mm)
    S73DC-66-140 3TG F7*140 7" 140.44" (3567mm) 60" (1524mm) 200.44" (5091mm)
    S73DC-66-150 3TG F7*150 7" 150" (3810mm) 63.50" (1613mm) 213.50" (5423mm)
    S74DC-74-120 4TG F7*120 7" 120" (3048mm) 44.12" (1120mm) 164.12" (4168mm)
    S74DC-74-135 4TG F7*135 7" 135" (3429mm) 48.43" (1230mm) 183.44" (4659mm)
    S74DC-74-140 4TG F7*140 7" 140" (3556mm) 49.75" (1263mm) 189.75" (4819mm)
    S74DC-74-156 4TG F7*156 7" 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm)
    S74DC-74-161 4TG F7*161 7" 161.75" (4108mm) 55.31" (1405) 217.06" (5513mm)
    S74DC-74-167 4TG F7*167 7" 167" (4242mm) 56.38" (1432mm) 223.38" (5674mm)
    S74DC-74-180 4TG F7*180 7" 180" (4572mm) 61.12" (1552mm) 241.12" (6124mm)
    S84DC-66-148 4TG F8*148 8" 147.75" (3753mm) 51.50" (1308mm) 199.25" (5061mm)
    S84DC-66-156 4TG F8*156 8" 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm)
    S84DC-66-161 4TG F8*161 8" 160" (4064mm) 55.75" (1416mm) 215.75" (5480mm)
    S84DC-66-170 4TG F8*170 8" 170" (4318mm) 57.25" (1454mm) 227.25" (5481mm)
    S84DC-66-180 4TG F8*180 8" 180" (4572mm) 59.75" (1518mm) 239.75" (6090mm)
    S85DC-66-170 5TG F8*170 8" 170" (4318mm) 49.88" (1267mm) 219.88" (5585mm)
    S85DC-66-190 5TG F8*190 8" 189" (4800mm) 54.62" (1387mm) 243.62" (6188mm)
    S85DC-66-220 5TG F8*220 8" 220" (5588mm) 60" (1524mm) 280" (7112mm)
    S85DC-66-235 5TG F8*235 8" 234" (5944mm) 64.62" (1641mm) 298.62" (7585mm)
    S85DC-66-250 5TG F8*250 8" 249" (6325mm) 68.62" (1743mm) 317.62" (8068mm)
    S85DC-66-265 5TG F8*265 8" 265" (6731mm) 71" (1803mm) 336" (8534mm)
    S85DC-66-285 5TG F8*285 8" 285" (7239mm) 78.5" (1994mm) 363.5" (9233mm)
    S95DC-52-220 5TG F9*220 9" 218" (5537mm) 62.44" (1586mm) 280.44" (7123mm)
    S95DC-52-235 5TG F9*235 9" 233" (5918mm) 65.44" (1662mm) 298.44" (7580mm)
    S95DC-52-250 5TG F9*250 9" 248" (6299mm) 68.44" (1738mm) 316.44" (8037mm)
    S95DC-52-265 5TG F9*265 9" 265" (6731mm) 72.62" (1844mm) 337.62" (8575mm)
    S95DC-52-280 5TG F9*280 9" 280" (7112mm) 72.62" (1997mm) 358.62" (9109mm)
    S95DC-52-300 5TG F9*300 9" 300" (7620mm) 79" (2007mm) 379" (9627mm)
    S95DC-52-320 5TG F9*320 9" 320" (8128mm) 83" (2108mm) 403" (9628mm)
    S95DC-52-340 5TG F9*340 9" 340" (8636mm) 87" (2210mm) 427" (10846mm)
