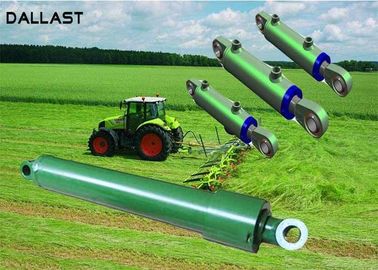

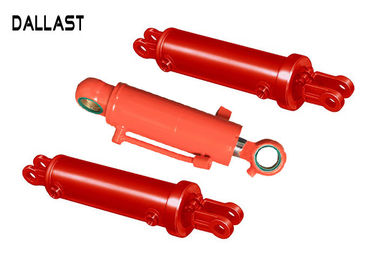

Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck

Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck

    • Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck
    • Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck
    • Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck
  • Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Usage: Automation And Control Surfce Coating: Sandblasting, Primer Paint
    Color: Red, Black Transport Package: Plywood Box Or Pallet
    Origin: Shandong, China Power: Hydraulic
    Piston Rod Chrome Plated: Cr, Ni, Or Ceramic



    Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck









    Three advantages for hydraulic cylinder :



    1. Longer serve life.

    By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

    fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!



    2. More strong stability.

    Stability optimization design, improve the long box lifting high stability, reduce rollover risk!



    3. Lift More.

    Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!





    Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.



    We can design according to user requirements, manufacturing various types of standards, non-standard hydraulic cylinders,long stroke hydraulic cylinder.

    We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders.



    Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck



    Model

    Pressure

    (MPa)

    Strock
    (mm)
    Bore Diameter
    (mm)
    Rod Diamter
    (mm)
    Push(KN) Pull(KN)
    HSGK01-160/90 16 715 160 90 321.7 219.9
    HSGL01-100/60 16 1200 100 60 125.66 87.65
    HSGK01-80/50 16 700 80 50 101.79 70.37
    HSGL01-80/50 16 500 80 50 80.43 54.98
    HSGL01-63/35 16 300 63 35 50 34.5
    HSGL01-50/28 16 140 50 28 31.42 21.56



    Hydraulic Cylinder Common Problem:



    1. User improper operation caused by cylinder deformation. Cabin in the lifting or lowering work violently shaking or overturning, so that the cylinder was a strong impact, causing the cylinder deformation or bending

    2. Barrel strain.

    3. due to unreasonable design, so that the top of the cylinder work, and the carriage interference caused by the cylinder strain

    4. Cylinder trunnion and bracket hole with the gap is too large (2 mm) caused by the top cylinder partial load caused by bar strain.

    5. Cylinder head nut loose caused by the top cylinder cover scratches the barrel caused by strain.



    Company Profile :



    Dallast Technology Co., Ltd focus on manufacturing all kinds of cylinders used for Machinery, Equipment, Metallurgy, Truck, etc. We also can design or do OEM in accordance with client's special requirements. We have our own professional design team, advanced production equipment, and strict quality control system to improve the reliability, safety and economy of products. In order to create real benefit for clients, Dallast Technology Co., Ltd will offer a full set of services, such as consulting solutions, products installation, technical support, etc.

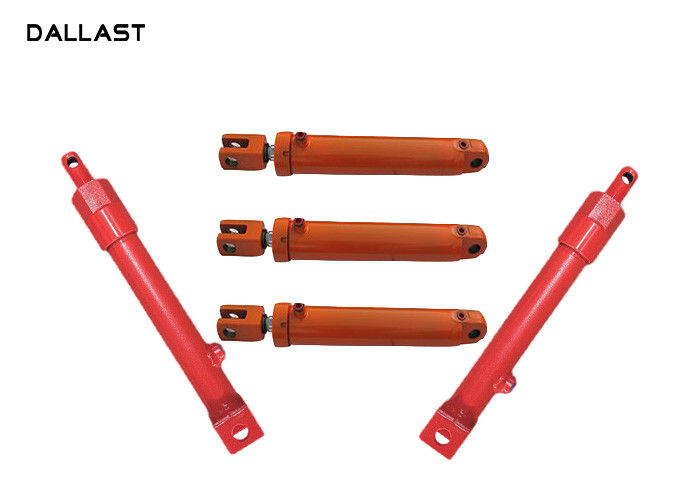

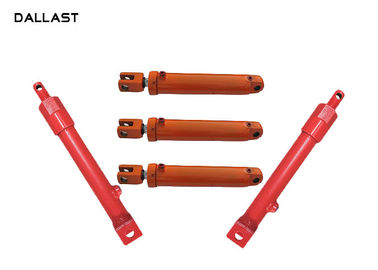

    Product Show :



    Double Acting Agricultural Hydraulic Cylinders for Dump Truck Tipping Truck
