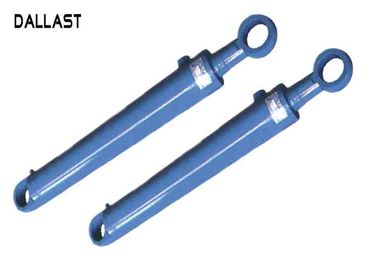

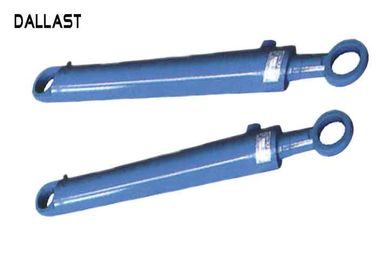

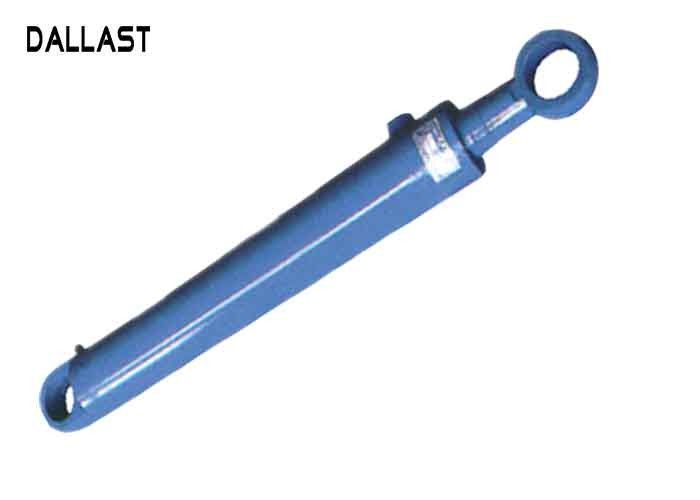

Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment

Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment

    • Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment
    • Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment
    • Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment
  • Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Painted: Custom OEM: YES
    Temperature: Normal Temperature Inside Diamater: 100- 415mm
    OD: Customized Application: Hoist Platform, Or Request
    High Light:

    double acting hydraulic ram

    ,

    double ended hydraulic ram

    Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment


    Key features:
    1. Provides low mounting height, no alteration of body crossmembers.
    2. Made from special high strength steel to reduce overall weight.
    3. Heavily chromed and polished cylinder piston rods for longer seal lift.
    4. Threaded head, welded cap design
    5. High accuracy and precision thanks to integrated guide
    6. Patented secured air bleed device to protect against injury
    7. Self-adjusting/adjustable end position cushioning
    8. Options for ductile iron or bronze inlaid steel rod glands
    9. Mounting alternatives include trunnion mount, clevis, pineyes, or lugs with spherical bearings


    Production description:
    The cylinders from this product series come with a hardened, chrome-plated piston rod which is suitable for an array of applications performed in various of the industries. The rod guide rings attached are mostly made of metal or with guide shoes high load capacity. These cylinders can be properly adjusted such that they can be water-tight and grip-ready to eliminate the possibility of stick-slip phenomenon.

    Installation method:
    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.

    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    How to choose:
    1. Choice will depend on the operating conditions of the unit. It is necessary to determine the precise physical characteristics and geometry of the installation.
    2. The bore, or cylinder diameter will determine the amount of force the piston can apply. Rod characteristics, usually standardized, fastening system, damping and stroke are other important factors.
    3. Stroke, in particular, is an essential specification, since it defines the distance the piston travels between its initial and its final position.
    4. Additional criteria include the use of presence sensors to indicate the position of the piston, the seals, purge and drain valves, type and temperature of the hydraulic fluid.


     Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment

     Double Action Hydraulic Cylinders Adjustable Bidirectional Damping for Fitness Equipment
