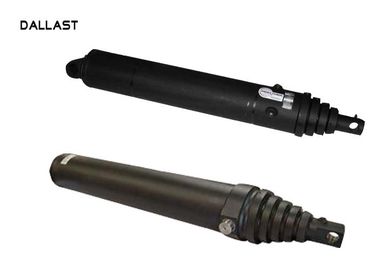

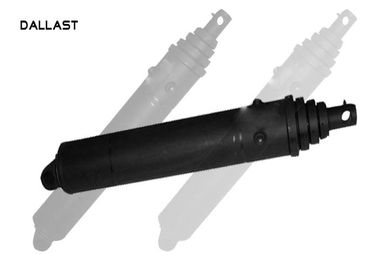

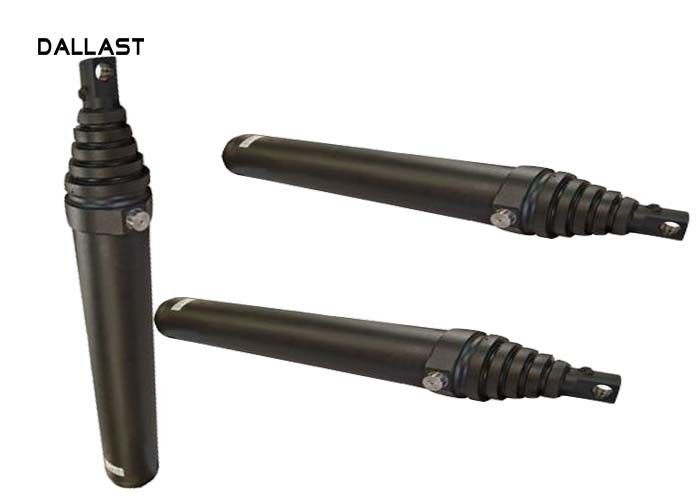

Single Acting Long Stroke Sleeve Multistage Hydraulic Cylinder ISO9001 2008

Single Acting Long Stroke Sleeve Multistage Hydraulic Cylinder ISO9001 2008

    • Single Acting Long Stroke Sleeve Multistage Hydraulic Cylinder ISO9001 2008
    • Single Acting Long Stroke Sleeve Multistage Hydraulic Cylinder ISO9001 2008
    • Single Acting Long Stroke Sleeve Multistage Hydraulic Cylinder ISO9001 2008
  • Single Acting Long Stroke Sleeve Multistage Hydraulic Cylinder ISO9001 2008

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Extended Stages: 3-7 Stages Certificate: ISO9001:2008
    Standard: Standard Type: Hydraulic Single Cylinder
    Shaft Diameter: Optional Place Of Origin: Shandong China

    Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM



    What is the information we require for customer before we make the quotation?

    • 1. Stroke
    • 2. Closed center
    • 3. Mounted Type: like bearing or clevis
    Process Flow
    • 1. Customer RFQ
    • 2. Information Confirm (Drawing or samples specific requirements)
    • 3. Quotation (Reply in 24 hours)
    • 4. Order Confirm (PI, PO)
    • 5. Sample producing (upon receipt of 30% deposit)
    • 6. If sample approved, go to main production
    • 7. Delivery (balance T/T, Customs clearance documents, 70% against B/L



    Model No. First Stage Diameter Stroke Closed Length Open Length
    4TG F7*120 7 inch

    120"

    (3048mm)

    44.12"

    (1120mm)

    164.12"

    (4168mm)

    4TG F7*135 7inch

    135"

    (3429mm)

    48.43"

    (1230mm)

    183.44"

    (4659mm)

    4TG F7*140 7inch

    140"

    (3556mm)

    49.75"

    (1263mm)

    189.75"

    (4819mm)

    4TG F7*156 7inch

    156"

    (3962mm)

    53.75"

    (1365mm)

    209.75"

    (5327mm)

    4TG F7*161 7inch

    161.75"

    (4108mm)

    55.31"

    (1405mm)

    217.06"

    (5513mm)

    4TG F7*167 7inch

    167"

    (4242mm)

    56.38"

    (1432mm)

    223.38"

    (5674mm)

    4TG F7*180 7inch

    180"

    (4572mm)

    61.12"

    (1552mm)

    241.12"

    (6124mm)

    4TG F8*148 8inch

    147.75"

    (3753mm)

    51.50"

    (1308mm)

    199.25"

    (5061mm)

    4TG F8*156 8inch

    156"

    (3962mm)

    53.75"

    (1365mm)

    209.75"

    (5327mm)

    4TG F8*161 8inch

    160"

    (4064mm)

    55.75"

    (1416mm)

    215.75"

    (5480mm)

    4TG F8*170 8inch

    170"

    (4318mm)

    57.25"

    (1454mm)

    227.25"

    (5481mm)

    4TG F8*180 8inch

    180inch

    (4572mm)

    59.75inch

    (1518mm)

    239.75inch

    (6090mm)

    5TG F8*170 8inch

    170inch

    (4318mm)

    49.88inch

    (1267mm)

    219.88inch

    (5585mm)

    5TG F8*190 8inch

    189inch

    (4800mm)

    54.62inch

    (1387mm)

    243.62inch

    (6188mm)

    5TG F8*220 8inch

    220inch

    (5588mm)

    60inch

    (1524mm)

    280inch

    (7112mm)

    5TG F8*235 8inch

    234inch

    (5944mm)

    64.62inch

    (1641mm)

    298.62"

    (7585mm)

    5TG F8*250 8inch

    249inch

    (6325mm)

    68.62inch

    (1743mm)

    317.62inch

    (8068mm)

    5TG F8*265 8inch

    265inch

    (6731mm)

    71inch

    (1803mm)

    336inch

    (8534mm)

    5TG F8*285 8inch

    285inch

    (7239mm)

    78.5inch

    (1994mm)

    363.5inch

    (9233mm)

    5TG F9*220 9inch

    218inch

    (5537mm)

    62.44inch

    (1586mm)

    280.44inch

    (7123mm)

    5TG F9*235 9inch

    233inch

    (5918mm)

    65.44inch

    (1662mm)

    298.44inch

    (7580mm)

    5TG F9*250 9inch

    248inch

    (6299mm)

    68.44inch

    (1738mm)

    316.44inch

    (8037mm)

    5TG F9*265 9inch

    265inch

    (6731mm)

    72.62inch

    (1844mm)

    337.62inch

    (8575mm)

    5TG F9*280 9inch

    280inch

    (7112mm)

    72.62inch

    (1997mm)

    358.62inch

    (9109mm)

    5TG F9*300 9inch

    300inch

    (7620mm)

    79inch

    (2007mm)

    379inch

    (9627mm)

    5TG F9*320 9inch

    320inch

    (8128mm)

    83inch

    (2108mm)

    403inch

    (9628mm)

    5TG F9*340 9inch

    340inch

    (8636mm)

    87inch

    (2210mm)

    427inch

    (10846mm)

    Why choose us:

    1: Various style for completely series hydrauli products for you to choose
    2: High quality with competitive price
    3: Provide free products information.
    4: Reliable quality assurance and active after-sell service
    5. 100% test before shipment
    6. Short lead time
    7. Supply custom made cylinders for our customers



    Features:
    1. Multistage telescopic long stroke hydraulic cylinder applies to long stroke lifting operation.
    2. Surface corrosion treatment, bright color, not east to rust.
    3. High strength alloy steel with high grade heat treatment, produced by imported CNC lathe, drilling machine and grinding machine.
    4. Import sealing parts, not easy to wear after continuous working.
    5. Dust ring reduces contamination, extending cylinder life.
    6. Single acting, load return.
    7. R2 3/8 coupler and dust cap included on all models.
    8. Flat saddle is standard, and tilting saddle is available.




    Every product is only as good as the service which supports it.
    At Dallast, customer service means delivering high quality products backed with lifetime support. Our team of experts is on hand to respond promptly to your feedback and attend to your needs. Whether it is after-sales support or working with you to build a prototype or helping you to improve your product, we are here for you. With Dallast you can benefit from Prototype development for your special designs and wishes. Full support in all phases of product development. Cost Reduction. Expert technical advice. Product roll-out in a minimum amount of time.



    FAQ:

    1. You are a trader or a manufacture?
    We are an industry and trade integration business, our factory located on Qingdao Shandong, and our sales department is in City -Shenzhen.



    2. How can I be sure the part will fit my excavator?
    Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.



    3. How about the payment terms?
    We usually accept T/T. other terms also could be negotiated.



    4. What is your minimum order?
    It depends on what you are buying. Normally, our minimum order is USD5000.
