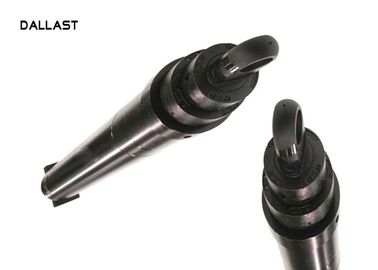

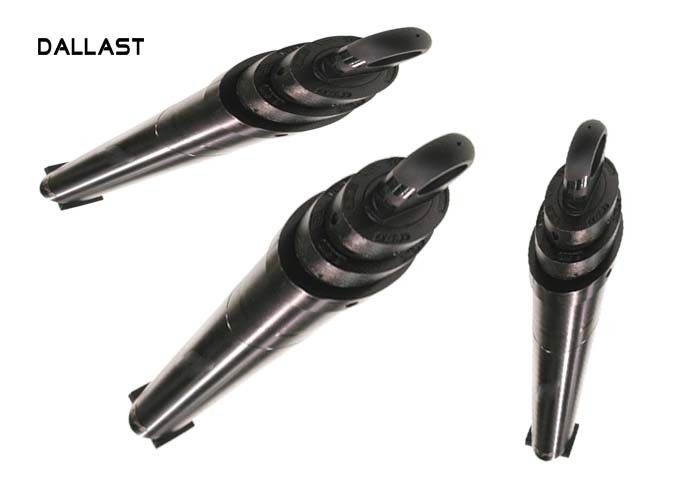

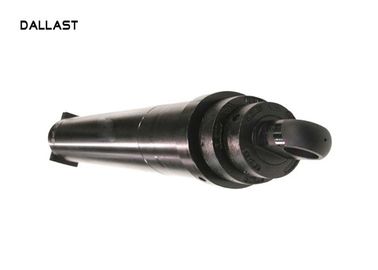

Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages

Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages

    • Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages
    • Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages
    • Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages
  • Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Color: Client's Request Sample: Available
    Factory Visit: Available Extended Stages: 3-7 Stages
    Certificate: ISO9001:2008 Standard: Standard

    Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM



    NO Model No. First Stage Diameter Stage Stroke Closed Length Open Length
    1 3TG F5*72 5" 3 72"(1829mm) 37.19" (945mm) 109.19" (2773mm)
    2 3TG F5*84 5'' 3 84" (2134mm) 41.19" (1046mm) 125.19" (3180mm)
    3 3TG F5*107 5" 3 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
    4 3TG F5*126 5" 3 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
    5 3TG F6*86 6" 3 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
    6 3TG F6*104 6" 3 103.94" (2640mm) 47" (1194mm) 150.94" (3834mm)
    7 3TG F6*107 6" 3 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
    8 3TG F6*111 6'' 3 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm)
    9 3TG F6*120 6'' 3 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm)
    10 3TG F6*123 6'' 3 123" (3124mm) 54.94" (1395mm) 177.94" (4519mm)
    11 3TG F6*126 6'' 3 126.31"(3208mm) 54.56" (1386mm) 180.87" (4594mm)
    12 3TG F6*140 6'' 3 140.25" (3562mm) 59.81" (1519mm) 200.06" (5081mm)
    13 4TG F6*135 6'' 4 135" (3429mm) 47.19" (1199mm) 182.19" (4628mm)
    14 4TG F6*156 6'' 4 156" (3962mm) 53.62" (1362mm) 209.62" (5324mm)
    15 3TG F7*110 7" 3 110.63" (2810mm) 50.06" (1271mm) 160.69" (4081mm)
    16 3TG F7*120 7" 3 120" (3048mm) 53.12" (1349mm) 173.12" (4397mm)
    17 3TG F7*124 7" 3 124.88" (3172mm) 54.81" (1392mm) 179.69" (4564mm)
    18 3TG F7*129 7" 3 129" (3277mm) 56.5" (1435mm) 185.5" (4712mm)
    19 3TG F7*140 7" 3 140.44" (3567mm) 60" (1524mm) 200.44" (5091mm)
    20 3TG F7*150 7" 3 150" (3810mm) 63.50" (1613mm) 213.50" (5423mm)



    Features:
    1. Multistage telescopic long stroke hydraulic cylinder applies to long stroke lifting operation.
    2. Surface corrosion treatment, bright color, not east to rust.
    3. High strength alloy steel with high grade heat treatment, produced by imported CNC lathe, drilling machine and grinding machine.
    4. Import sealing parts, not easy to wear after continuous working.
    5. Dust ring reduces contamination, extending cylinder life.
    6. Single acting, load return.
    7. R2 3/8 coupler and dust cap included on all models.
    8. Flat saddle is standard, and tilting saddle is available.





    The Cylinders we produced before used in

    Road Trans. Machinery: with long stroke

    Crane Truck: use the type of heavy cylinders

    Garbage Truck: both telescopic and hydraulic cylinders.

    Agriculture Machinery: Like plough machinery, harvester.

    Engine Machinery: huge cylinder need very high requirements.





    Front-end hydraulic cylinder- Lightweight series

    1.Safer: the Dallast Mining Series of hydraulic cylinder adopts a brilliant structural design and uses new material in its production, which enables it to work stable in the worst working conditions and thus ensures the safety of drivers and greatest benefits for its customers.

    2.Faster dumping speed: the use of brilliant structural design improves the dumping speed of the hydraulic cylinder!

    3.Higher lifting frequency: the Dallast mining series can be used for 24-hour short distance high-frequency work. With its stable performance, low mechanic failure, it can reduce parking time and improve working efficiency.

    4.Greater environment adaptability: it adopts newly-developed seal patented technology and new material, and thus can work within a temperature range of -40°C-110°C. it can work smoothly in both high and low temperature environment.

    5.Lighter: it is 15%-20% lighter than other series of cylinder, but has improved its lifting force by 10%-15%..

    6.Greater lifting power: it has improved its lifting force by 10%-15% when compared with other series of cylinder, which will bring the customers with more benefit.





    After-Sales Service

     what are we doing before products shipping out?

    1. 100% Inspecting for products, final check for the packing, notice customer.

    2. Giving customer the chain information, like the material certification, inspect reports, testing results’.

    3. Providing the packing detail, including the customs documents, products putting pictures, container chaining. etc.



    FAQ:
    1. You are a trader or a manufacture?
    We are an industry and trade integration business, our factory located on Qingdao Shandong, and our sales department is in City -Shenzhen.



    2. How can I be sure the part will fit my excavator?
    Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.



    3. How about the payment terms?
    We usually accept T/T. other terms also could be negotiated.



    4. What is your minimum order?
    It depends on what you are buying. Normally, our minimum order is USD5000.





    Long Stroke Telescopic Front End Dump Truck Hydraulic Cylinder RAM 3 - 7 stages
