|Place of Origin:||Shandong China|
|Certification:||GS CE ISO9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Model Number:||ODM||Heat Treatment:||Quenching|
|Painting:||Anti Rust Painting||Color:||Client's Request|

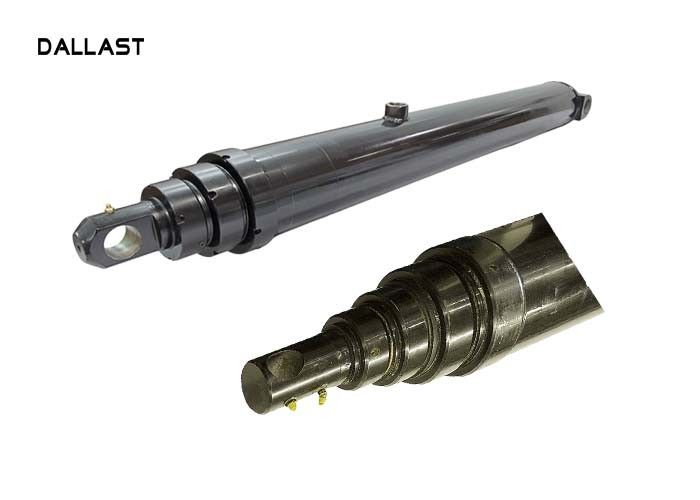

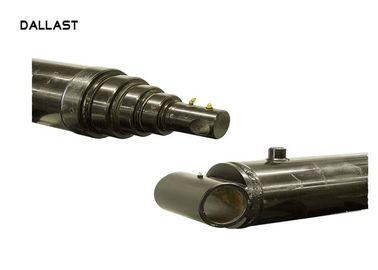

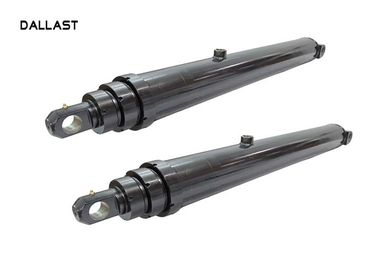

12 Inch Welded Single Acting Telescopic Hydraulic Cylinder Stroke
Every product is only as good as the service which supports it.
At Dallast, customer service means delivering high quality products backed with lifetime support. Our team of experts is on hand to respond promptly to your feedback and attend to your needs. Whether it is after-sales support or working with you to build a prototype or helping you to improve your product, we are here for you. With Dallast you can benefit from Prototype development for your special designs and wishes. Full support in all phases of product development. Cost Reduction. Expert technical advice. Product roll-out in a minimum amount of time.
|No||Model code||total stroke length||closed length||extended length||width of base eye||diam. Of base pin eye||width of top pin eye||weight (lbs)|
|1||MH100-63-108P||108||49 1/2||157 1/2||7||1/4 Fits a 2" Pin||2||272|
|2||MH100-63-120P||120||53 1/2||174 1/2||7||1/4 Fits a 2" Pin||2||265|
|3||MH100-63-132P||132||57 1/2||189 1/2||7||7 1/4 Fits a 2" Pin||2||310|
|4||MH100-73-120P||120||53 1/8||173 1/8||7||8 5/8 Fits a 2" Pin||2||383|
|5||MH100-73-124P||124||54 13/16||179 11/16||7||8 5/8 Fits a 2" Pin||2||397|
Six advantages for hydraulic cylinder:
With excellent structure design and the application of new materials, to withstand the harsh conditions of sustained and stable
work not disarticulating. To ensure the safety of drivers and vehicles, for the user to create the most valuable safety assurance!
2.Faster unloading speed.
With excellent structure design, promote unloading speed.
3.The lifting frequency higher
Suitable for all-weather shuttle high frequency operation, stable performance, low failure rate,
increase the number of transport, reduce the parking time!
4.A stronger ability to adapt to the environment
Using innovative patented technology and the application of new material seal can adapt
to -40~110 DEG C temperature range, high temperature and low temperature operation can ensure the excellent performance!
Lower 15%~20% than the other series of products with weight, lift lifting 10%~15%!
Compared with other products with lift lifting 10%~15%. Lift larger, more loading more returns! Lighter weight, lift larger, lighter!
1.All specification is designed by professional engineer
2.All material is high quality-Seal kits are purchased from Italy,England,America etc
3.All material is processed by skilled workers and advanced CNC lathe
4.All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
5.Package is air cushion film for each cylinder and wooden pallets for all cylinders to ensure goods can arrive at customer safely
6.One year warranty and life long time follow up service is offered to solve any problems you met when use our products
