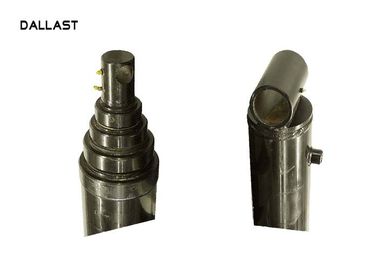

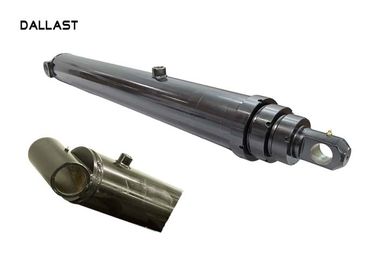

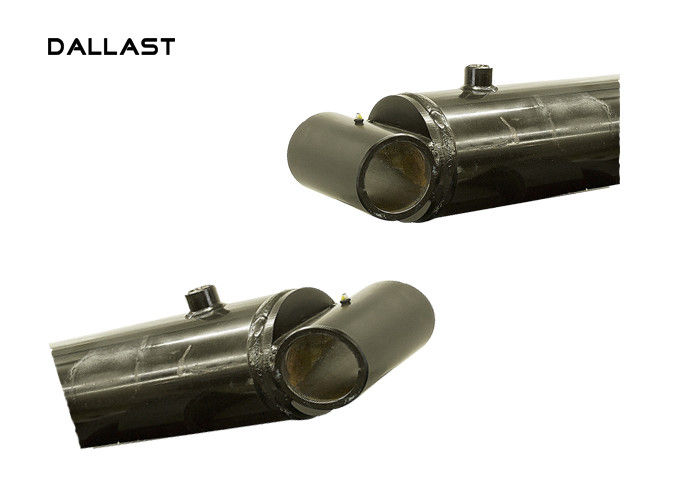

Custom 3 4 5 Stage Stainless Steel Telescopic Hydraulic Cylinder With Anti Rust Painting

Custom 3 4 5 Stage Stainless Steel Telescopic Hydraulic Cylinder With Anti Rust Painting

    • Custom 3 4 5 Stage Stainless Steel  Telescopic Hydraulic Cylinder With Anti Rust Painting
    • Custom 3 4 5 Stage Stainless Steel  Telescopic Hydraulic Cylinder With Anti Rust Painting
    • Custom 3 4 5 Stage Stainless Steel  Telescopic Hydraulic Cylinder With Anti Rust Painting
  • Custom 3 4 5 Stage Stainless Steel  Telescopic Hydraulic Cylinder With Anti Rust Painting

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Power: Hydraulic Body Material: Steel
    Trademark: Dallast Model Number: ODM
    Heat Treatment: Quenching Painting: Anti Rust Painting

    Custom 3 4 5 Stage Telescopic Stainless Steel Hydraulic Cylinder



    OVERVIEW
    Single acting
    Constructed from heat treated 1026 steel tubing
    Bleeder-less design
    Re-designed piston assembly reduces air pocket
    All cylinder stages are chrome plated & roller burnished
    Dual retaining rings & dual nylon bearings
    Low friction dual lip rod seal
    Longer seal life than V-packing
    All cylinders have a MAX Working Pressure of 2000psi



    Parker Model No. First Stage Diameter Stage Stroke Closed Length Open Length
    S53DC-66-72 3TG F5*72 5" 3 1829mm 945mm 2773mm
    S53DC-66-84 3TG F5*84 5'' 3 2134mm 1046mm 3180mm
    S53DC-65-107 3TG F5*107 5" 3 2732mm 1229mm 3961mm
    S53DC-65-126 3TG F5*126 5" 3 3216mm 1386mm 4602mm
    S63DC-101-86 3TG F6*86 6" 3 2203mm 1038mm 3241mm
    S63DC-101-104 3TG F6*104 6" 3 2640mm 1194mm 3834mm
    S63DC-101-107 3TG F6*107 6" 3 2732mm 1289mm 3961mm
    S63DC-97-111 3TG F6*111 6'' 3 2819mm 1268mm 4087mm
    S63DC-102-120 3TG F6*120 6'' 3 3048mm 1359mm 4407mm
    S63DC-97-123 3TG F6*123 6'' 3 3124mm 1395mm 4519mm
    S63DC-102-126 3TG F6*126 6'' 3 3208mm 1386mm 4594mm
    S63DC-101-140 3TG F6*140 6'' 3 3562mm 1519mm 5081mm
    S64DC-12-135 4TG F6*135 6'' 4 3429mm 1199mm 4628mm
    S64DC-14-156 4TG F6*156 6'' 4 3962mm 1362mm 5324mm
    S73DC-66-110 3TG F7*110 7" 3 2810mm 1271mm 4081mm
    S73DC-66-120 3TG F7*120 7" 3 3048mm 1349mm 4397mm
    S73DC-66-124 3TG F7*124 7" 3 3172mm 1392mm 4564mm
    S73DC-66-129 3TG F7*129 7" 3 3277mm 1435mm 4712mm
    S73DC-66-140 3TG F7*140 7" 3 3567mm 1524mm 5091mm
    S73DC-66-150 3TG F7*150 7" 3 3810mm 1613mm 5423mm
    S74DC-74-120 4TG F7*120 7" 4 3048mm 1120mm 4168mm
    S74DC-74-135 4TG F7*135 7" 4 3429mm 1230mm 4659mm
    S74DC-74-140 4TG F7*140 7" 4 3556mm 1263mm 4819mm
    S74DC-74-156 4TG F7*156 7" 4 3962mm 1365mm 5327mm
    S74DC-74-161 4TG F7*161 7" 4 4108mm 1405mm 5513mm
    S74DC-74-167 4TG F7*167 7" 4 4242mm 1432mm 5674mm
    S74DC-74-180 4TG F7*180 7" 4 4572mm 1552mm 6124mm
    S84DC-66-148 4TG F8*148 8" 4 3753mm 1308mm 5061mm
    S84DC-66-156 4TG F8*156 8" 4 3962mm 1365mm 5327mm
    S84DC-66-161 4TG F8*161 8" 4 4064mm 1416mm 5480mm
    S84DC-66-170 4TG F8*170 8" 4 4318mm 1454mm 5481mm
    S84DC-66-180 4TG F8*180 8" 4 4572mm 1518mm 6090mm

    Our special low friction dual lip rod seal also has many benefits including reduced running friction for smoother and faster operation, no mis-staging, no seal adjustments are necessary, no compression set like standard V-packing, longer seal life than V-packing and a better operating temperature range.



    Advantages we have:

    1. Experienced hydraulic cylinder products supplier

    2. Professional design team and sales department for your service;

    3. 7*24 service for you, all the question will be dealed within 24hours.



    Benefit you get:

    1. Stable quality -- Coming from good materials and technic

    2. Lower price -- Not cheapest but the lowest at the same quality

    3. Good service -- Satisfactory service before and after sale

    4. Delivery time -- 30-45 days for mass production



    FQA:

    1. What can Dallast do?
    Dallast have professional hydraulic cylinder production base with nearly 30 years of professional R&P and production of hydraulic cylinder's experience. It is a set of design research and development production, sales and service of modern hydraulic cylinder in one of the production base.

    2 What are the main product of Dallast?
    Front-end multistage hydraulic cylinder(for dump truck)
    Under-body hoist multistage hydraulic cylinder (bore size from 70-110mm, stroke from 500-2000mm)
    Engineering piston hydraulic cylinder (usd for trailer, modified vehicle, construction machinery, forklift and agricultural machinery and so on)

    3 What is Dallast strengths?
    Dallast have all the equpment for the production of hydraulic cylinder
    Dallast provide design services according to your requiremnets
    Dallast can supply metric and imperial size cylinder
    Dallast imported seals as required
    Dallast has its own electroplating plant
    complete quality control system





    Custom 3 4 5 Stage Stainless Steel  Telescopic Hydraulic Cylinder With Anti Rust Painting
