|Place of Origin:||shandong|
|Certification:||GS, RoHS, CE, ISO9001|
|Model Number:||could be customized|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||carton box|
|Delivery Time:||20-30 work days per year|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||60000 pieces|
|Structure:||Telescopic Single Acting||Installation:||Single Trunnion|
|Stroke:||200-12000mm||Effective Dia Of First Stage:||150mm|
|Weight:||90kg||Closed Length:||On Request|

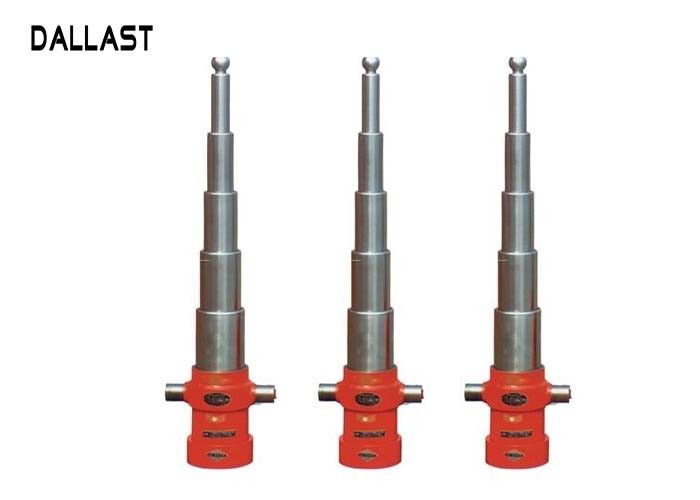

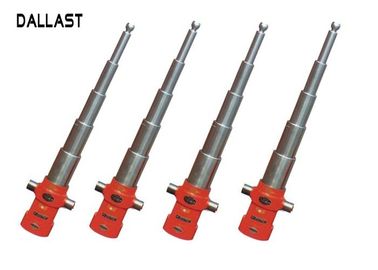

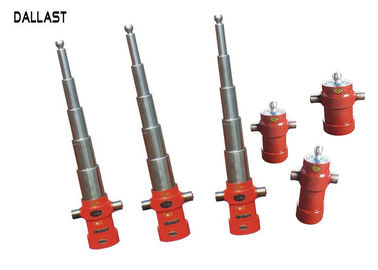

Single Acting Hydraulic Cylinder Multistage 5TG Single Trunnion Stroke 800mm
a. Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
b. Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
c. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
nuts backing off.
d. Single-acting cylinders transfer force and motion in one direction only.
e. Lighter weight: TG series oil cylinder is lighter than similar product 17.9%, lower cost and fewer oil consumption.
f. Higher efficiency: Smaller cylinder diameter makes the smaller working volume, the speed of oil cylinder lifting and falling are more fast and more efficiency, running more can bring more benefits.
g. Stronger weather resistance: The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.
h. Better performance: Imported high quality materials and spare parts make outstanding products performance. Precision of the system structure design, lean manufacturing and long service life can bring a lot of benefits to customers.
1. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank.
2. It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements.
3. There are many benefits to using a single acting cylinder. It’s the ideal choice for applications where gravity, weight or other assisting forces are present to move the cylinder in one direction. It could be mounted in any position so that it could be used in a wide range of mobile and industrial applications.
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
It has FC, FE, FEE.
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
We offer 12 months warranty.
From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.
Contact Person: Sheny Lin
